Spray gun details

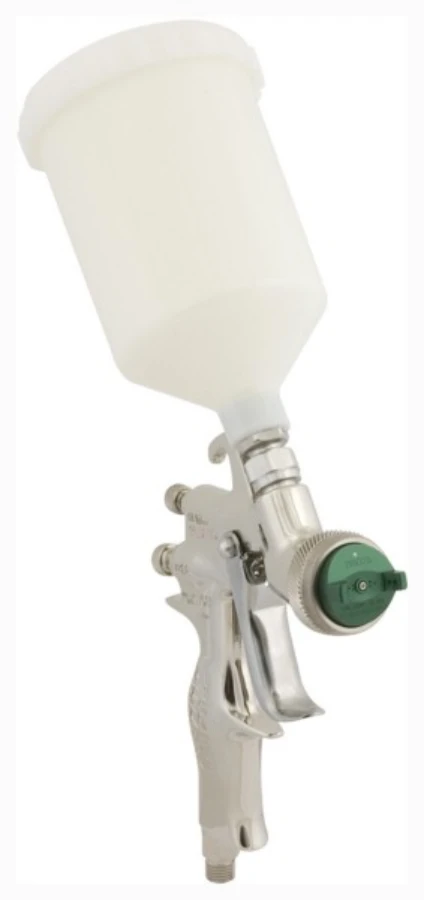

Sharpe 1.2 mm Tip RAZOR Compliant Waterborne Spray Gun (289390)
The Sharpe 1.2 mm Tip RAZOR Compliant Waterborne Spray Gun (289390) is a professional-grade tool engineered for precision and efficiency in automotive and industrial refinishing. With a 1.2 mm tip and a gravity-feed design, this spray gun is specifically optimized for applying waterborne paints, base coats, and clear coats. Its Compliant technology ensures a high transfer efficiency, which means less overspray and more paint on the surface, making your work more cost-effective and environmentally friendly. The gun's construction, featuring 100% stainless steel fluid passages, a needle, and a nozzle, provides superior resistance to corrosion from water-based materials, ensuring long-term reliability and consistent performance. The ergonomic handle and lightweight design reduce user fatigue, allowing for comfortable, prolonged use. The Sharpe RAZOR 289390 is a reliable choice for professionals who demand high-quality results and a tool that can handle the rigors of daily use.
KEY FEATURES AND BENEFITS:
Superior Atomization: The Compliant technology provides first-rate atomization, creating a fine, even spray pattern that results in a smooth, professional-quality finish on a variety of surfaces.
High Transfer Efficiency: This gun is designed to deliver a transfer efficiency equal to or better than HVLP spray guns, reducing material waste and saving you money on expensive paints.
Corrosion-Resistant Construction: The 100% stainless steel fluid passages, needle, and nozzle make this spray gun ideal for use with waterborne paints, preventing corrosion and ensuring the longevity of the tool.
Ergonomic and Lightweight: Designed for painter comfort, the gun's low trigger pull and lightweight build help to reduce hand fatigue during long painting sessions, allowing you to maintain control and precision.
Versatile Application: The 1.2 mm tip is suitable for a wide range of applications, including base coats, clear coats, high solid coatings, and single-stage paints, making it a versatile addition to any professional's toolkit.
Part Number: 289390
Tip Size: 1.2 mm
Maximum Air Inlet Pressure: 35 psi (0.24 MPa, 2.4 bar)
Air Consumption: 11.2 CFM at 35 psi (2.4 bar)
Weight (with cup): 1.3 lb (0.6 kg)
Preparation: Ensure your air compressor is set to the recommended air pressure of 35 psi. Connect the spray gun to the air line and fill the gravity cup with your properly thinned and strained waterborne paint.
Adjustments: Use the air pressure and fan pattern controls on the gun to adjust the spray pattern and material flow. Test the spray on a scrap piece of cardboard to fine-tune the settings for your desired finish.
Application: Hold the gun perpendicular to the surface at a consistent distance of 6-8 inches. Pull the trigger fully and move the gun in a smooth, steady motion across the surface. Overlap each pass by 50% to ensure even coverage.
Cleaning: Immediately after each use, clean the gun thoroughly. Disconnect the air line and disassemble the fluid cap and nozzle. Use a waterborne-specific cleaner to flush the gun's fluid passages until all paint residue is gone. Clean the outside of the gun with a solvent and a brush, then wipe it dry.
BENEFITS OF USING SHARPE 1.2 MM TIP RAZOR COMPLIANT WATERBORNE SPRAY GUN (289390):
Provides professional-grade results with waterborne coatings.
Compliant technology maximizes paint usage and minimizes waste.
All-stainless steel fluid passages prevent corrosion, extending the tool's life.
Ergonomic design and low trigger pull reduce fatigue for longer work periods.
Delivers a high-quality finish, efficient performance, and long-term reliability.
Gravity-feed design for smooth and consistent paint flow.
Polished, nickel-plated finish for easy maintenance and cleanup.
All-stainless steel needle and nozzle for long-lasting corrosion resistance.
Precision-machined air cap and fluid tip for even atomization.
Low-pull trigger to reduce hand strain during extended use.
1/4" NPSM air inlet compatible with standard air line connections.
Manufactured in the USA, ensuring quality and reliability.
Product identification
- Brand: Sharpe
- Model / MPN: 289390
