Spray gun details

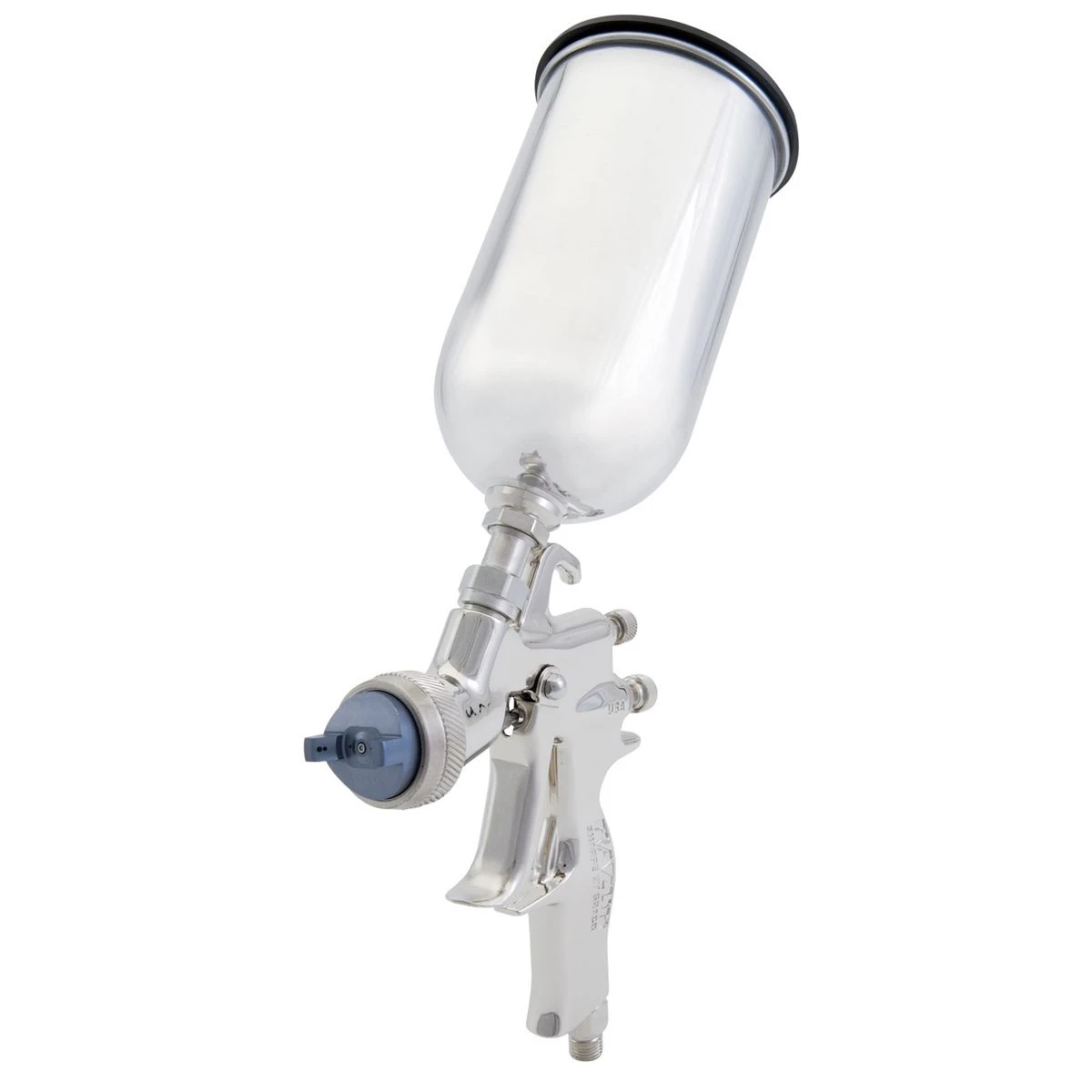

Sharpe 1.2 mm Tip RAZOR Compliant Spray Gun (253441)
The Sharpe 1.2 mm Tip RAZOR Compliant Spray Gun (253441) is a professional-grade gravity-feed spray gun engineered to deliver superior results for a wide range of applications. Utilizing advanced compliant technology, it provides high transfer efficiency and fine atomization, enabling faster, more productive work without compromising finish quality. Its 100% stainless steel fluid passages make it reliable with both waterborne and solvent-based materials. The lightweight, ergonomic body and responsive trigger reduce fatigue during extended use, making it an essential tool for professional painting projects.
KEY FEATURES AND BENEFITS:
Superior Finish Quality: 1.2 mm tip and compliant technology provide exceptional atomization for smooth, even finishes, ideal for high-solid clear coats and base coats.
Versatile Material Compatibility: Stainless steel fluid passages, needle, and nozzle work with waterborne and solvent-based paints.
High Transfer Efficiency: More paint lands on the surface with less waste, improving productivity and reducing material costs.
Ergonomic and Lightweight Design: Comfortable body and low-pull trigger minimize hand strain during long periods of use.
Durable Construction: Nickel-plated finish and long-life needle packings ensure easy cleaning, maintenance, and long service life.
Part Number: 253441
Spray Technology: Compliant (similar to LVLP)
Tip Size: 1.2 mm
Air Inlet: 1/4" NPSM
Maximum Air Inlet Pressure: 35 psi (2.4 bar)
Air Consumption: 11.2 CFM at 35 psi (2.4 bar)
Weight (with cup): 1.3 lb (0.6 kg)
Spray Pattern: 14 inches
Prepare the Gun: Ensure the gun is clean and the fluid cup is attached. Adjust fluid, fan, and air controls for your material and desired spray pattern.
Fill the Cup: Pour and strain paint into the 23 oz gravity cup to prevent clogs.
Connect to Air Supply: Attach air line to the 1/4" NPSM inlet. Set air pressure to the recommended 35 psi.
Test Spray: Perform a test spray on scrap material. Adjust controls for optimal pattern and atomization.
Apply Paint: Hold gun perpendicular to the surface, maintain consistent distance, and overlap passes by 50% for even coverage.
BENEFITS OF USING SHARPE 1.2 MM TIP RAZOR COMPLIANT SPRAY GUN (253441):
High productivity with faster application and higher production rates.
Meets US EPA NESHAP 40 CFR, Part 63 Subpart HHHHHH environmental standards.
Consistent, reliable spray pattern with minimal overspray reduces rework.
Versatile use with base coats, clear coats, and waterborne paints.
Reduced operating costs through high transfer efficiency and durable components.
Nickel-plated finish for simple cleaning
Low-pull trigger to reduce hand fatigue
100% stainless steel internal fluid passages
Ergonomic and lightweight body design
Includes a 23 oz. polished aluminum gravity cup
Comes with a 3M™ PPS™ adapter
Product identification
- Brand: Sharpe
- Model / MPN: 253441
