Spray gun details

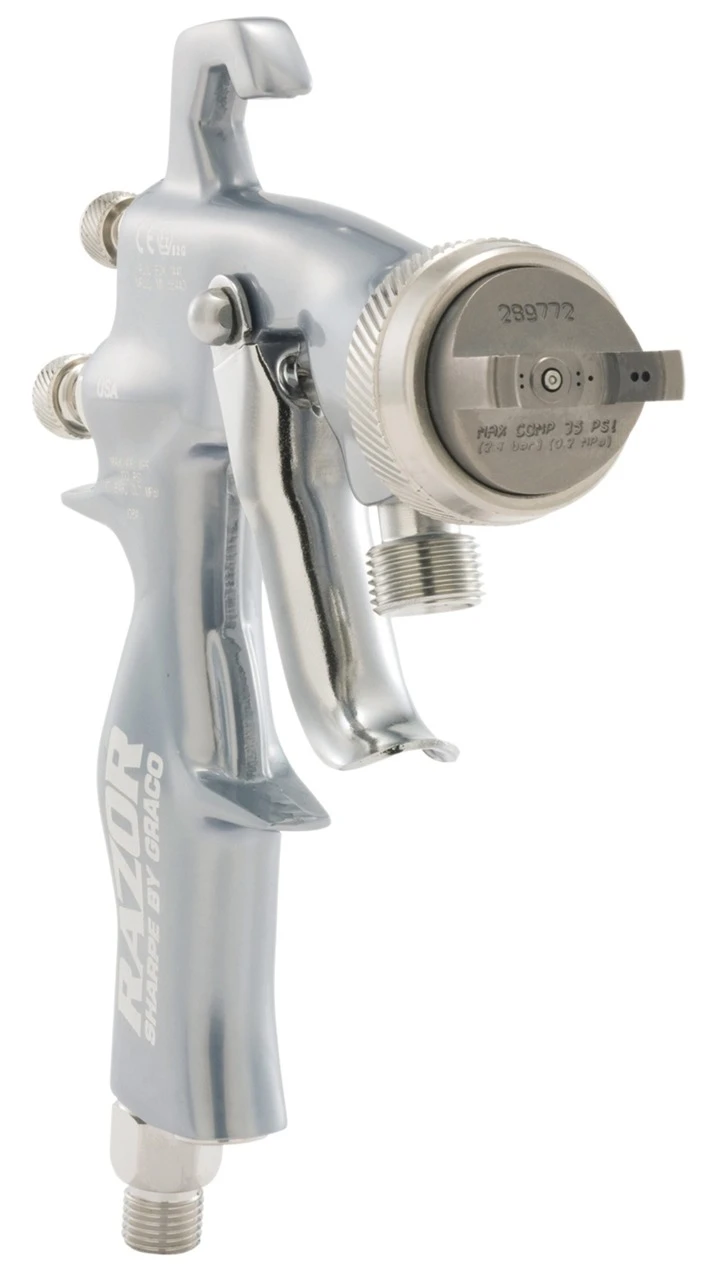

Sharpe 1.2 mm RAZOR Compliant Pressure Feed Spray Gun (24A529)
The Sharpe 1.2 mm RAZOR Compliant Pressure Feed Spray Gun (24A529) is a high-performance professional tool engineered for precision and efficiency in automotive and industrial painting applications. Designed to work with a pressure pot system, this spray gun delivers consistent and controlled application for a wide range of coatings. Its robust construction features 100% stainless steel fluid passages, making it fully compatible with modern waterborne paints and other corrosive materials. The ergonomic design, lightweight build, and low trigger pull minimize user fatigue during extended use. The compliant air cap technology provides excellent atomization and a professional finish while adhering to strict environmental standards.
KEY FEATURES AND BENEFITS:
Consistent Material Application: The pressure feed system ensures a steady, even flow of material, providing a uniform finish with fewer inconsistencies.
Compatibility with Modern Coatings: 100% stainless steel fluid passages, needle, and nozzle are fully compatible with waterborne paints and other corrosive materials.
Ergonomic and Comfortable Design: The handle and low trigger pull reduce strain and fatigue for long painting sessions.
Reduced Maintenance: Low number of parts makes the gun easy to clean and maintain, lowering cost of ownership.
Professional-Grade Performance: Compliant air cap technology efficiently atomizes higher viscosity materials for a high-quality finish while meeting environmental regulations.
Fluid Tip: 1.2 mm
Air Inlet Size: 1/4" npsm (R 1/4 – 19)
Fluid Inlet Size: 3/8" npsm (R 3/8 – 19)
Max. Air Inlet Pressure: 100 psi (0.7 MPa, 7 bar)
Max. Fluid Inlet Pressure: 300 psi (2.1 MPa, 21 bar)
Air Consumption: 14.4 CFM at 29 psi (0.2 MPa, 2.0 bar)
Finish: Gray anodized and nickel-plated
Prepare the Gun: Ensure the gun is clean and assembled. Connect the fluid hose from the pressure pot to the fluid inlet and the air hose to the air inlet.
Set Up the Pressure Pot: Fill the pot with coating and adjust air pressure on the regulator to the recommended fluid pressure for your material.
Adjust Gun Settings: Set gun air pressure (standard 29 psi). Use fan pattern control and fluid control knobs to achieve desired spray width and flow.
Test and Spray: Test spray on scrap material. Once pattern and flow are correct, spray the workpiece, maintaining consistent distance and motion.
Clean After Use: Disconnect the gun, pour leftover material back into its container, flush the gun with compatible solvent, and wipe down the exterior.
BENEFITS OF USING SHARPE 1.2 MM RAZOR COMPLIANT PRESSURE FEED SPRAY GUN (24A529):
Superior Finish Quality: Finely atomized spray produces a smooth, high-quality finish.
Versatility: 1.2 mm tip suitable for base and clear coats, industrial, and fleet projects.
Durability and Longevity: Stainless steel construction withstands professional use and corrosive coatings.
Compliance with Regulations: Compliant air cap technology supports environmental standards without sacrificing performance.
Ease of Use: Lightweight, ergonomic, and easy-to-adjust design allows painters of all skill levels to achieve professional results.
Nickel-plated finish for easy cleaning
Low trigger pull for reduced hand fatigue
Low number of internal parts for simple maintenance
Suitable for a wide variety of coatings including high solids and single-stage paints
Product identification
- Brand: Sharpe
- Model / MPN: 24A529
