Battery charger details

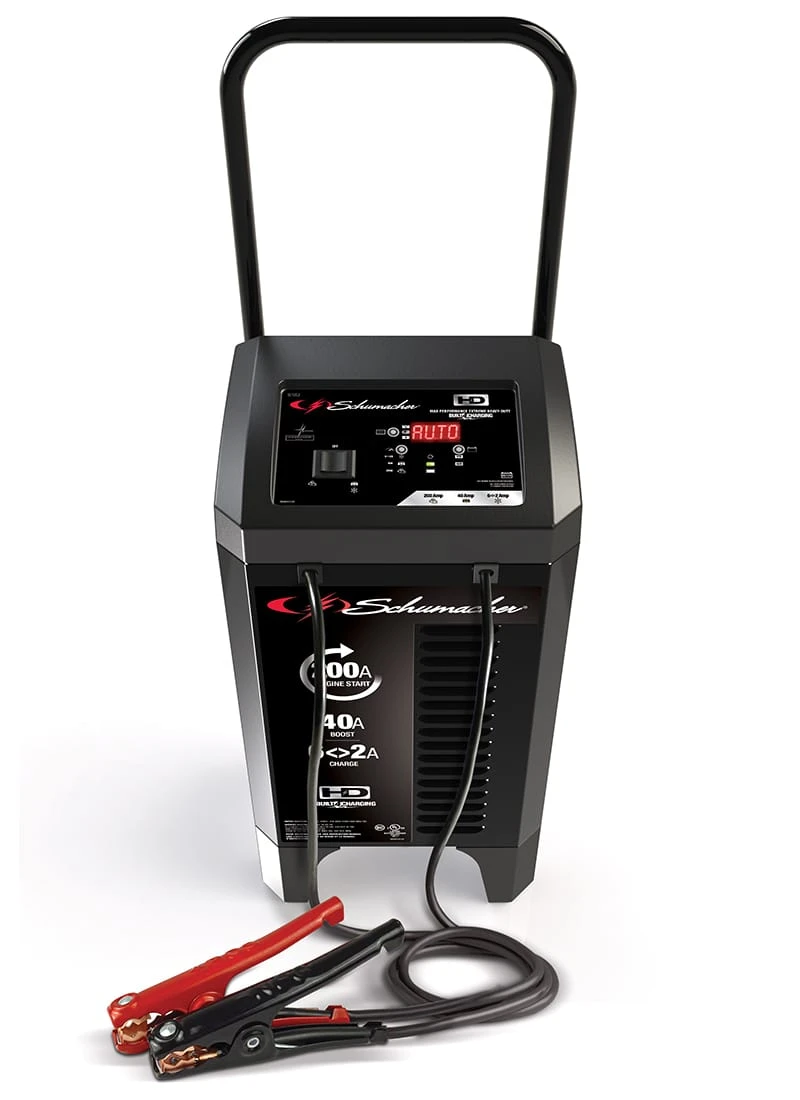

Schumacher Automatic Battery Charger Engine Starter (SC1353) (Model SCSC1353)
html Schumacher Automatic Battery Charger Engine Starter (SC1353)
Schumacher Automatic Battery Charger Engine Starter (SC1353) delivers exceptional performance for professionals and serious home mechanics. With a 200-amp engine start, it tackles dead batteries in SUVs, trucks, RVs, and other large vehicles. The 40-amp boost mode quickly revives deeply discharged batteries, getting you back on the road fast.
KEY FEATURES AND BENEFITS
Versatile Charging for All Battery Needs:
Functions as a versatile battery charger, compatible with standard, AGM, and deep-cycle batteries.
Microprocessor-controlled system automatically adjusts the amperage (6A for charging, 2A for maintenance) to ensure safe and efficient charging for various battery types.
Built-in Diagnostics & User-friendly Operation:
Integrated battery and alternator tester helps diagnose electrical system problems, preventing future breakdowns.
Auto voltage detection eliminates guesswork, automatically identifying 6-volt or 12-volt batteries.
Additional Features for Convenience and Safety:
Digital display and LED indicators provide clear information on the charging status.
Push-button controls offer easy operation.
Reverse hook-up protection safeguards against accidental damage.
Durable Design for Rugged Use:
Heavy-duty steel case for lasting protection.
Compact wheels and a retractable handle enhance portability, making it easy to maneuver around the workshop or garage.
8-gauge output cables with color-coded clamps ensure secure and reliable connections.
200-amp engine start for SUVs, trucks, RVs, and large engines
40-amp boost mode for reviving deeply discharged batteries
6A for charging and 2A for maintaining standard, AGM, and deep-cycle batteries
Built-in battery and alternator tester for electrical system diagnosis
Auto voltage detection (6-volt or 12-volt)
Microprocessor-controlled charging for precise amperage adjustment
Multi-stage charging for optimal battery health and lifespan
Float mode monitoring for maintaining optimum battery charge during storage
Digital display, LED indicators, and push-button controls for user-friendly operation
Reverse hook-up protection for safety
Heavy-duty steel case for durability
Compact wheels and retractable handle for portability
8-gauge output cables with color-coded clamps
UL (US and Canada) safety approvals
Follow these steps to use the Schumacher Automatic Battery Charger Engine Starter (SC1353):
Ensure the charger is unplugged from any power source.
Connect the color-coded clamps to the battery terminals (red to positive, black to negative).
Select the appropriate voltage (6V or 12V) using the push-button controls.
Plug the charger into a power outlet and turn it on.
Monitor the digital display and LED indicators to check the charging status.
Once charging is complete, turn off the charger and unplug it from the power source.
Disconnect the clamps from the battery terminals.
BENEFITS OF USING SCHUMACHER AUTOMATIC BATTERY CHARGER ENGINE STARTER (SC1353)
Exceptional starting power for large vehicles
Versatile charging capabilities for various battery types
Built-in diagnostics for preventing future breakdowns
User-friendly design with digital display and LED indicators
Durable and portable for rugged use
The Schumacher SC1353 is a powerful and versatile solution for both professional and enthusiast users. Its exceptional starting power, diverse charging capabilities, and diagnostic features make it a valuable asset for any workshop or garage.
Product identification
- Brand: Schumacher Electric
- Model / MPN: SCSC1353
