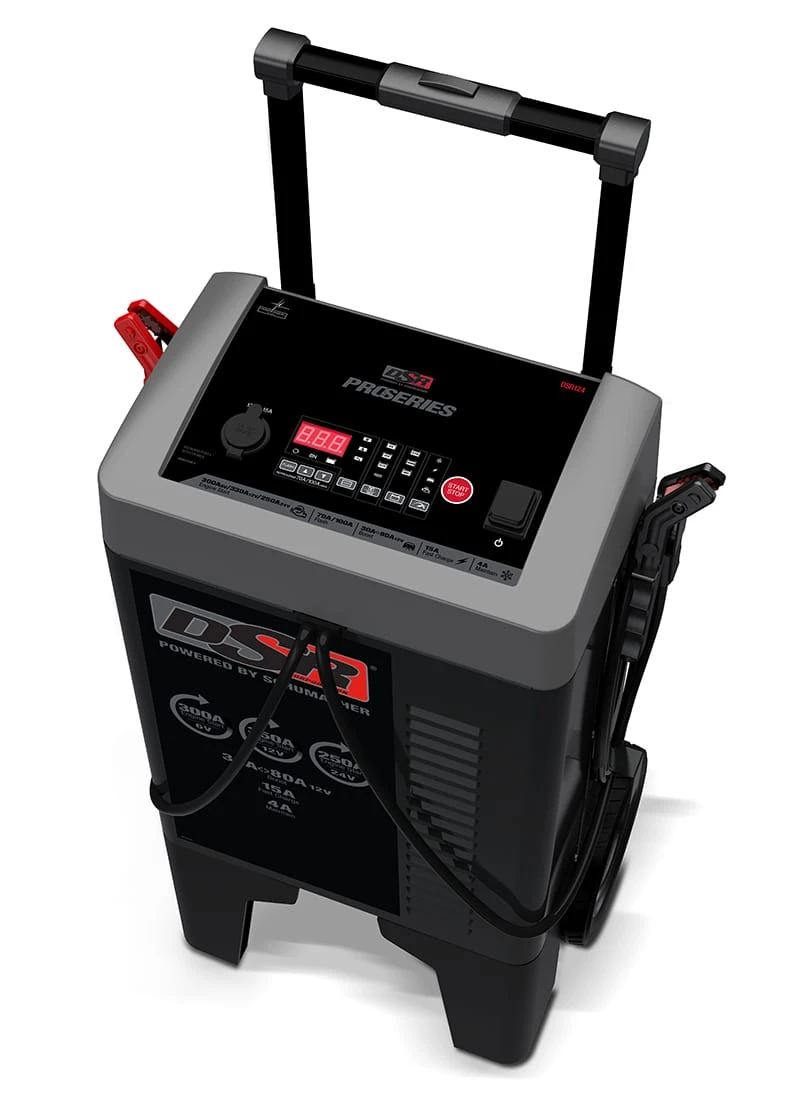

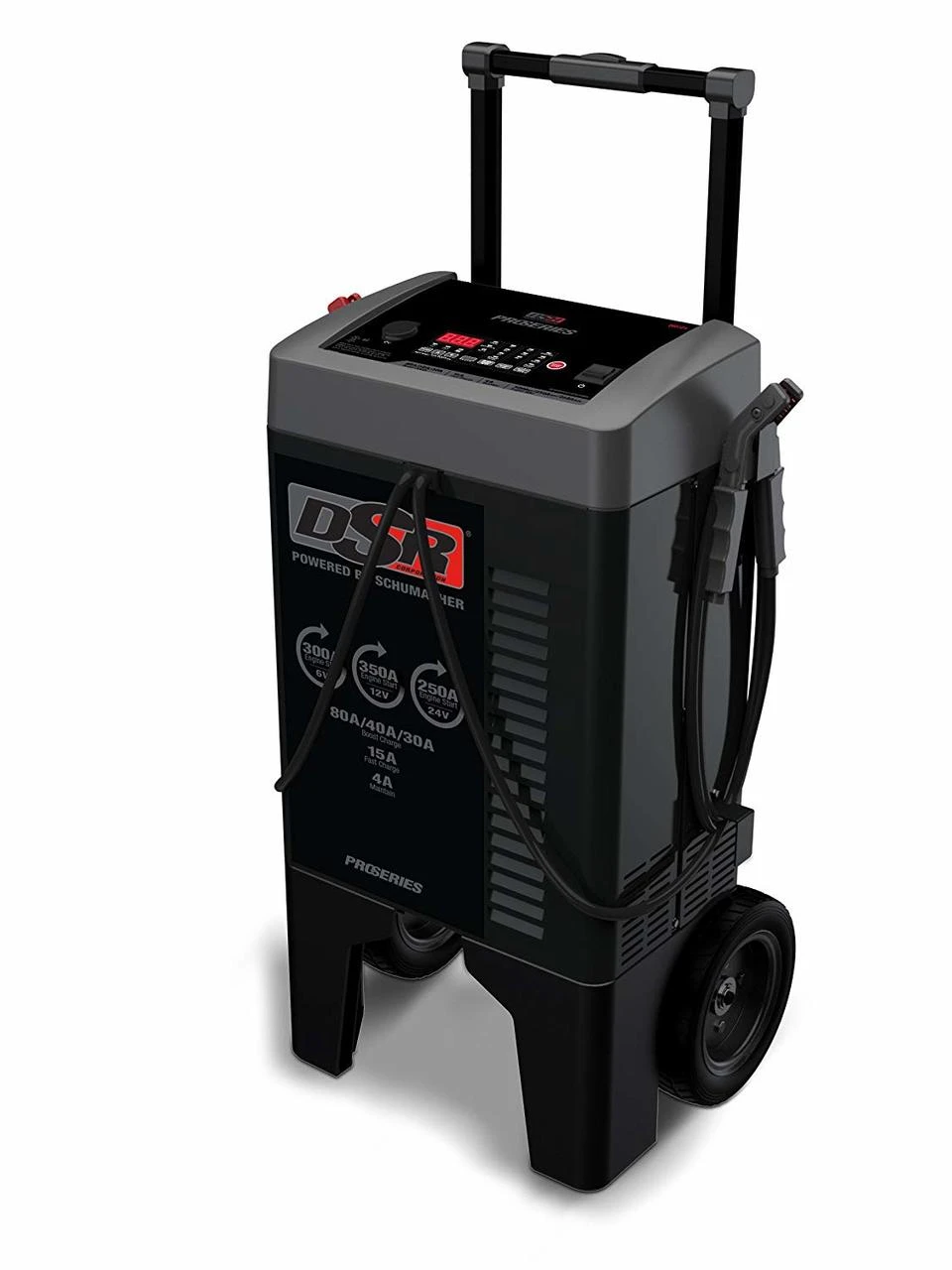

Schumacher 330A ProSeries Battery Charger/Engine Starter (DSR124)
html Schumacher 330A ProSeries Battery Charger/Engine Starter (DSR124)
KEY FEATURES AND BENEFITS
Built to Last and Easy to Use:
Constructed with robust steel housing and heavy-duty clamps, the DSR124 is built to endure demanding environments.
Features a clear digital display for monitoring charging status.
Safety features like reverse hook-up protection and automatic microprocessor control prevent overcharging, safeguarding both the battery and the charger itself.
Memory saver mode prevents loss of vehicle settings during battery changes.
Versatile Functionality for Diverse Needs:
Provides multi-stage charging for optimal battery health and lifespan.
Extra-long 17-foot output cables offer extended reach for convenient use.
Float mode function maintains battery charge for parked vehicles.
Energy efficient, meeting the highest industry standards.
Additional Features:
70A Flash Reprogram Mode: Assists with vehicle ECU reprogramming by providing a steady current (more information available in user manual).
30/80A Boost Mode: Delivers a quick burst of power to revive deeply discharged batteries.
Digital Display with LED Indicators and Push-Button Controls: Provides clear and easy operation.
Battery Types: Standard, AGM, Gel, Deep-Cycle
Input Voltage: 120V AC
Input Current: 14.6A cont., 66.5A int.
Output Voltage: 6/12/24V
Output Current: 6V: 4/15A cont., 80/300A int.; 12V: 4/15A cont., 80/330A int.; 24V: 30A cont., 250A int.
Dimensions: 16.25 x 20.5 x 33.63 in
Follow these steps to use the Schumacher 330A ProSeries Battery Charger/Engine Starter (DSR124):
Ensure the charger is unplugged from any power source.
Connect the heavy-duty clamps to the battery terminals (red to positive, black to negative).
Select the appropriate voltage (6V, 12V, or 24V) using the push-button controls.
Plug the charger into a power outlet and turn it on.
Monitor the digital display and LED indicators to check the charging status.
Once charging is complete, turn off the charger and unplug it from the power source.
Disconnect the clamps from the battery terminals.
BENEFITS OF USING SCHUMACHER 330A PROSERIES BATTERY CHARGER/ENGINE STARTER (DSR124)
Exceptional starting power for large vehicles
Versatile charging capabilities for various battery types
Built-in diagnostics for preventing future breakdowns
User-friendly design with digital display and LED indicators
Durable and portable for rugged use
330-amp cranking capacity for starting large engines
Multi-stage charging for optimal battery health and lifespan
Extra-long 17-foot output cables for extended reach
Float mode function for maintaining battery charge
Energy efficient, meeting industry standards
70A Flash Reprogram Mode for ECU reprogramming
30/80A Boost Mode for quick power bursts
Digital Display with LED Indicators and Push-Button Controls
Reverse hook-up protection for safety
Heavy-duty steel case for durability
Memory saver mode
Compact wheels and retractable handle for portability
8-gauge output cables with color-coded clamps
UL (US and Canada) safety approvals
The Schumacher DSR124 is a powerful and versatile solution for professional mechanics and automotive enthusiasts. Its robust build, comprehensive features, and user-friendly design make it a reliable tool for various battery-related tasks, from charging and jump-starting to maintaining battery health.
Product identification
- Brand: Schumacher Electric
- Model / MPN: DSR124
