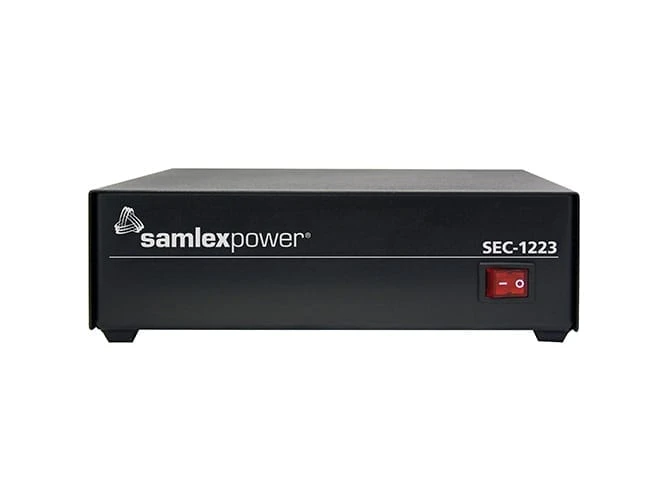

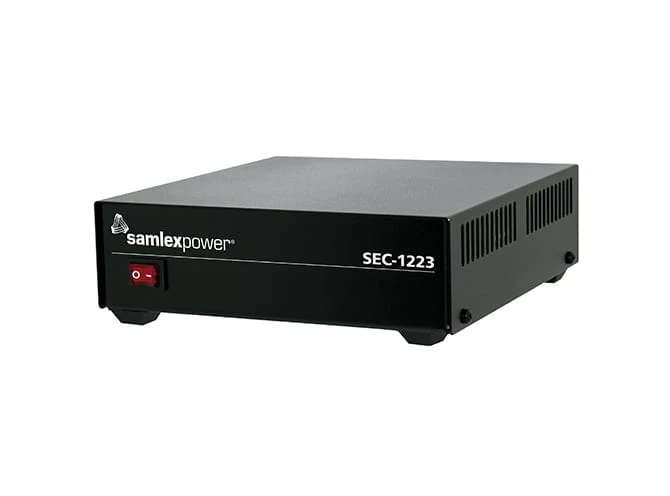

Samlex Power Supply 23 Amp 120VAC-12VDC (SEC-1223)
This high efficiency UL-60950-1 approved AC-DC power supply provides a highly regulated output DC voltage of 13.8 Volts at 23 Amps with an AC input of 120 Volts, 60 Hz. These advanced switch-mode DC power supplies were designed specifically for land mobile radio (LMR) applications. The power supplies produce clean reliable power and are highly filtered to suppress RFI. The unit comes with a detachable power supply cord with NEMA 5-15P plug. Features include over-current, short-circuit and over-voltage protection. The AC-DC switching power supply conforms to FCC Part 15(B), class B digital device.
Advanced switch-mode technology
Reliable power with minimum weight and size
Circuit innovations minimize output voltage ripple and RFI
Input voltage can be set at 120VAC or 240VAC (internal jumper)
UL listed to both USA & Canadian safety standards
Input: 100-130 VAC
Output: 13.8 VDC
Weight: 3.5 (lbs)
Weight: 1.6 (kg)
Dimensions: 7.28 x 8.19 x 2.40 (in)
Dimensions: 18.5 x 20.8 x 6.1 (cm)
Product identification
- Brand: Samlex
- Model / MPN: SEC-1223
