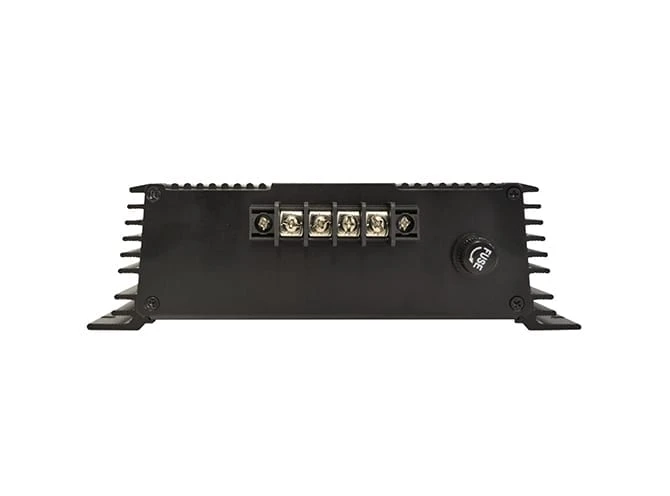

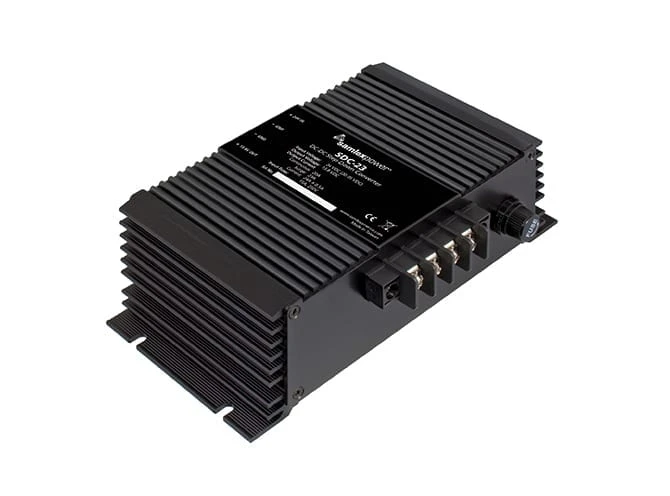

Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 23A (SDC-23)
Samlex Converter, DC-DC Step-Down; Input 20-32VDC Output 13.8VDC 23A – Samlex (SDC-23)
This high efficiency switch-mode step-down DC-DC converter converts an input voltage of 24 VDC nominal (range 20 VDC to 35 VDC) to a highly regulated output voltage of 12 VDC nominal (13.8 VDC) at 20 Amps. The SDC-23 DC-DC converter is non-isolated (no galvanic isolation between input and output) and meant for use in negative ground systems. Features include overvoltage/short-circuit protection, temperature compensated current limit, output-side overvoltage protection, input-side overvoltage/ transient protection and input-side reverse polarity protection. The SDC-23 DC-DC converter is designed for heavy duty applications.
Advanced switch-mode design
Converts 24 VDC to 12 VDC
Compact and light weight
Current limiting circuit
Over voltage protection
Short circuit protection
Reverse polarity protection
Mount in almost any location
Input: 20-35 VDC
Output: 13.8 VDC
Weight: 2.2 (lbs)
Dimensions: 7.8 x 4.8 x 2.4 (in)
Dimensions: 19.8 x 12.2 x 6.0 (cm)
Product identification
- Brand: Samlex
- Model / MPN: SDC-23
