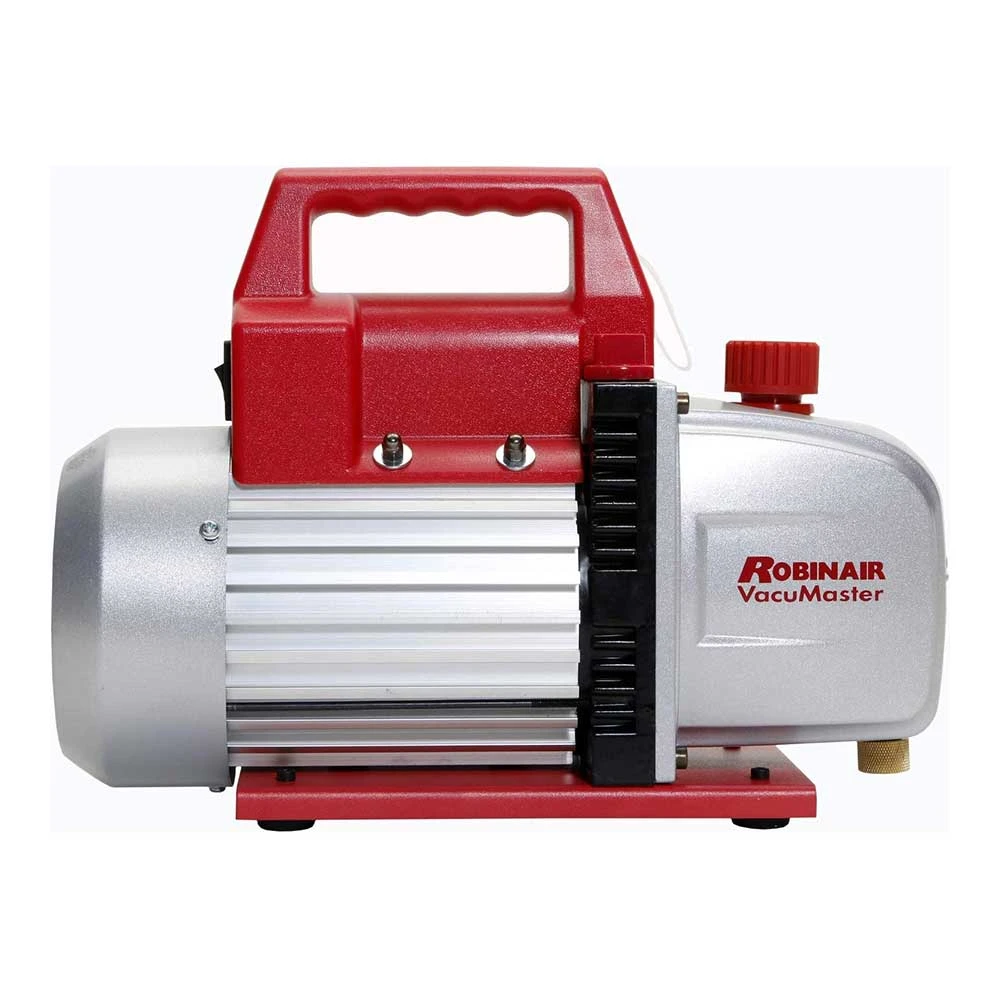

Robinair VacuMaster 5 CFM 2-Stage Vacuum Pump for AC/R Systems (15500)
Robinair VacuMaster 5 CFM 2-Stage Vacuum Pump (15500) offers superior performance for air conditioning and refrigeration services. With a 5 CFM free air displacement and a two-stage system, it provides fast and thorough evacuation and system dehumidification.
The Robinair 15500 pump features a 1/3 HP, 115V/60Hz thermally protected motor and is designed to operate efficiently with lower temperatures and greater durability. It's engineered to prevent oil backflow with an inlet fitting designed for maximum airflow.
Specifications and Dimensions
Free air displacement: 5 CFM
Factory micron rating: 35 microns
Intake fitting: 1/4" MFL & 3/8" ACME; 3/8" FFL x 1/2" ACME adapter included
Oil capacity: 7.5 oz. (220 ml)
Motor size: 1/3 HP
Voltage: 115V, 60Hz
Key Features and Benefits
Two-stage rotary vane design ensures deeper vacuum pull and faster system evacuation
Die-cast aluminum housing for light weight and durability
Angled oil drain valve for quick and complete oil changes
Easy-view sight glass and accessible oil fill port enhance maintenance convenience
Heavy-duty motor supports startup and efficient operation under continuous use
Product identification
- Brand: Robinair
- Model / MPN: 15500
