Redline Detection 95-0400 ReadySmoke Leak Detector Kit
Redline Detection ReadySmoke Leak Detector
The ReadySmoke™ (95-0400) is guaranteed to be the most profitable tool you will ever own. Now, nitrogen compatible!
Made in America quality
Low on price but high on performance, ReadySmoke™ finds leaks fast and finds more repairs jobs on every vehicle
Use for low pressure smoke tests on EVAP or intake systems
Included vapor producing fluid lasts hundreds of tests for low cost of operation
Flow Meter indicates flow and measures leak size
Uses shop air and operates on a 12 Volt battery
Use provided Halogen Inspection Light to locate leaks
10-foot smoke hose, externally serviceable/replaceable
10-foot battery power cables
Compact 6” (15 cm) x 7” (18 cm) x 7” (18 cm), can be stored on its side!
Weighs less than 8 lbs
Easy fill dipstick style fluid port
Detachable smoke
Comes with a full accessory kit
Legendary Redline product support
Testing with the ReadySmoke
With an output pressure of 0.5 PSI use the ReadySmoke for low pressure smoke tests on intake systems, EVAP, or exhaust.
Vacuum lines, manifolds, EGR valves, oil seals, gaskets, solenoids, o-rings, ducting, throttle shafts, diaphragms, canisters, etc.
EVAP Decay / Leak Down Test
Power Supply: 12 Volts DC
Power Consumption: 12 amps
Output Pressure: 0.5 PSI / 13.0 in. H2O/ 0.032 BAR
Operating Temperature: 0°F to 140°F (-17°C to 60°C)
Operating Modes: Vapor Cycle / Air Only Cycle
Pressure Supply: Compressed Air (compatible with nitrogen)
Housing Material: Steel
Dimensions: 6” (15 cm) x 7” (18 cm) x 7” (18 cm)
Machine Weight: 7.6 lbs (3.45 kgs)

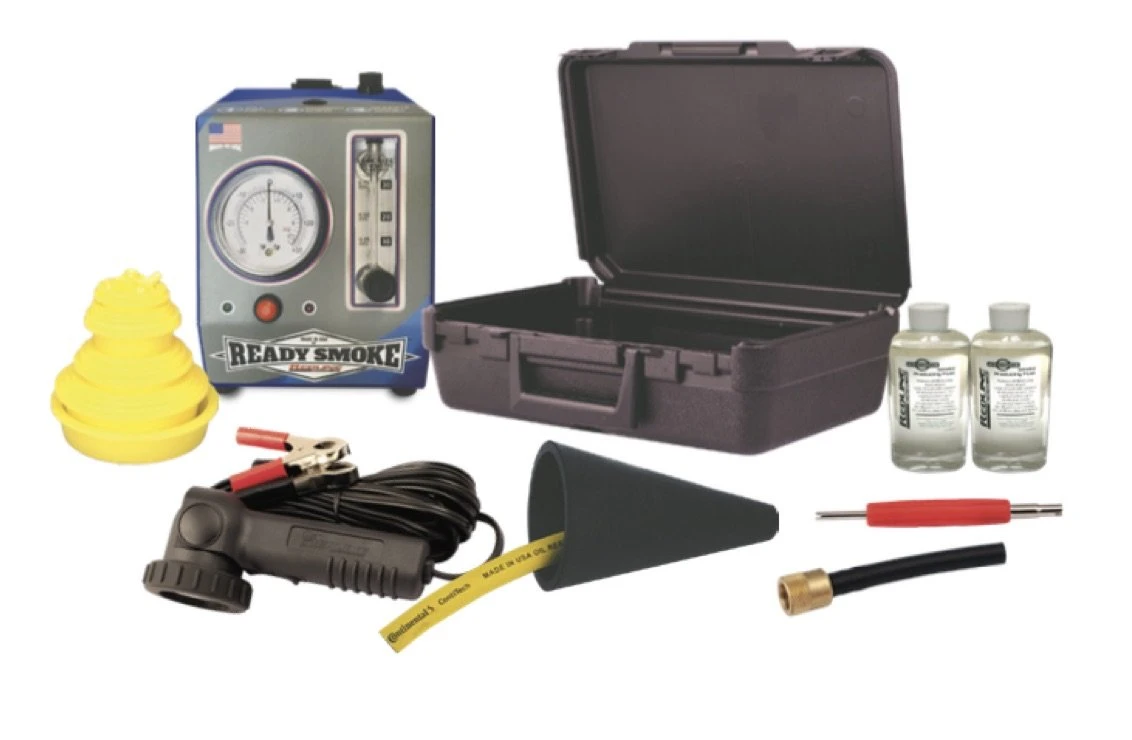

A complete accessory package is included with every ReadySmoke
(1) ReadySmoke Machine with 10-ft Battery Power Cables and 10-ft smoke hose
(2) 2 oz OEM-Approved Vapor Producing Fluid (PN 96-0074)
(1) EVAP Service Tool Kit (PN 96-0003)
(1) Halogen Inspection Light (PN 96-0011)
(1) Cap Plug Kit (PN 96-0007)
(1) Standard Cone Adapter (PN 96-0004)
(1) Accessory Storage Case (PN 91-0011)
Product identification
- Brand: Redline Detection
- Model / MPN: 95-0400
