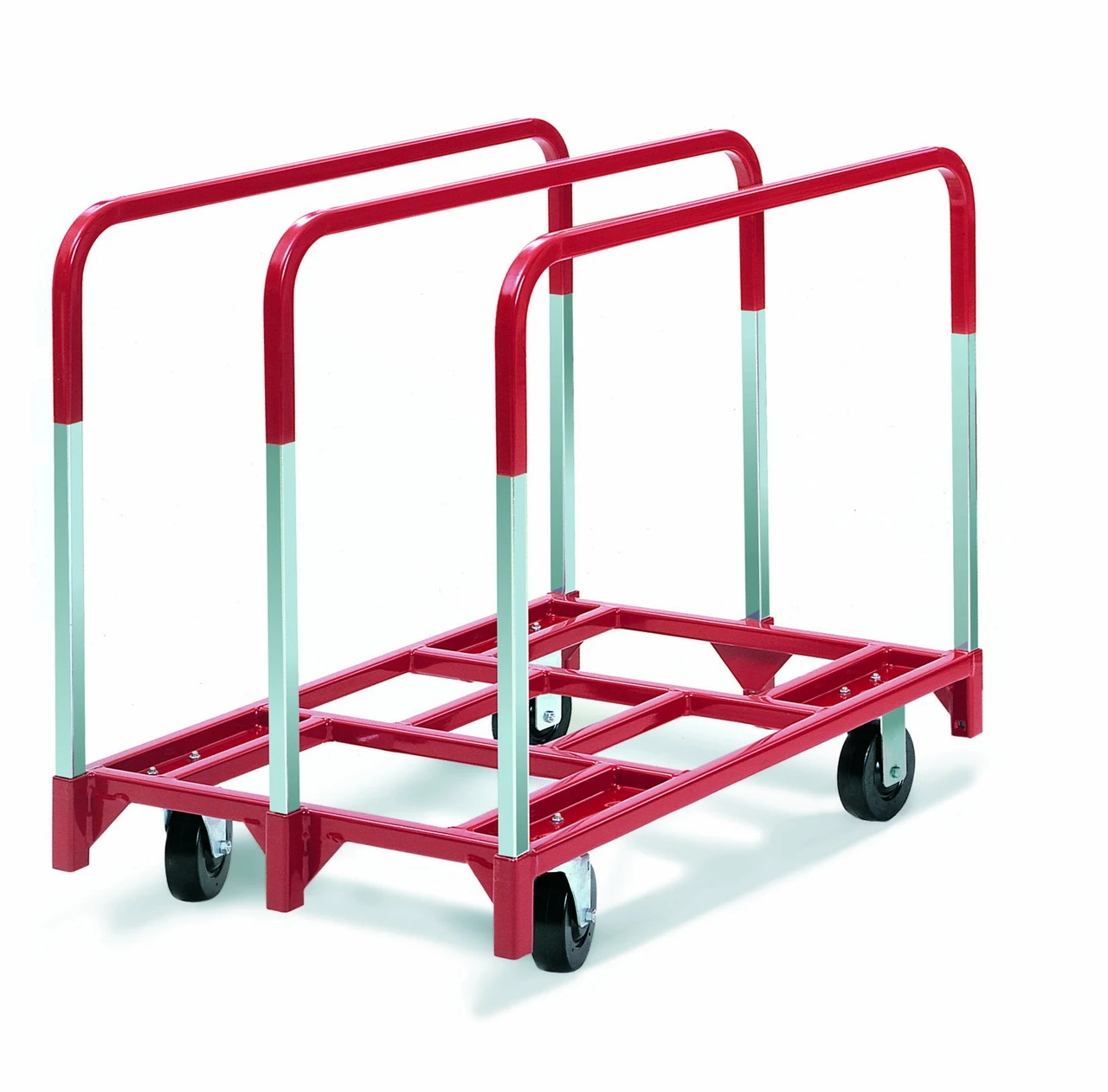

Raymond Products Panel Mover, 2 Fixed/2 Swivel 5" Casters, 3 Uprights (3825)
Raymond Products 3825 Panel Mover with 2 Fixed and 2 Swivel 5 in. Phenolic Casters 3 Standard Uprights
Designed principally for moving office partition panels, but flexible uses extend to moving banquet tables, roll goods, mattresses, bed frames, etc. In addition, the panel mover has become a standard in many workrooms for transporting raw materials between workstations. Finish: Platform and uprights coated with non-mar, skid-resistant vinyl. Load capacity: 2,400 lbs; Casters: 5" x 2" Phenolic, 2 fixed, 2 swivel optional brake kits available. 3 Packed: one per carton.
Platform: robotic welded 16 gauge tubular steel and steel plate
Overall dimensions: 38-1/2" length by 27-1/2" width
Load area: 36" length by 27-1/2" width
Three removable uprights made of 1" by 16 gauge welded steel tubing; standard, 26" high
11-3/4" Between upright sockets
Model: Raymond 3825
Length (cm): 97.8
Width (cm): 69.9
Height (cm): 86.4
Weight (g): 10292
Product identification
- Brand: Raymond Products
- Model / MPN: 3825
