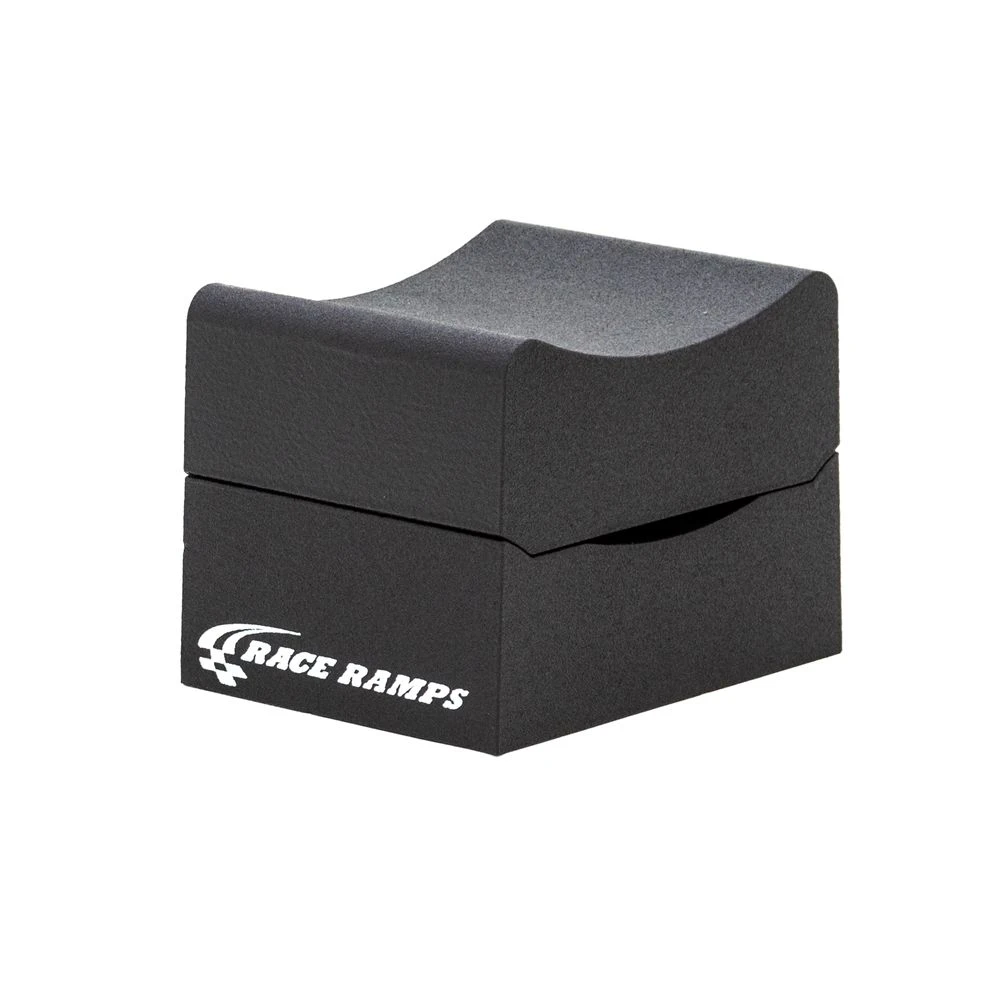

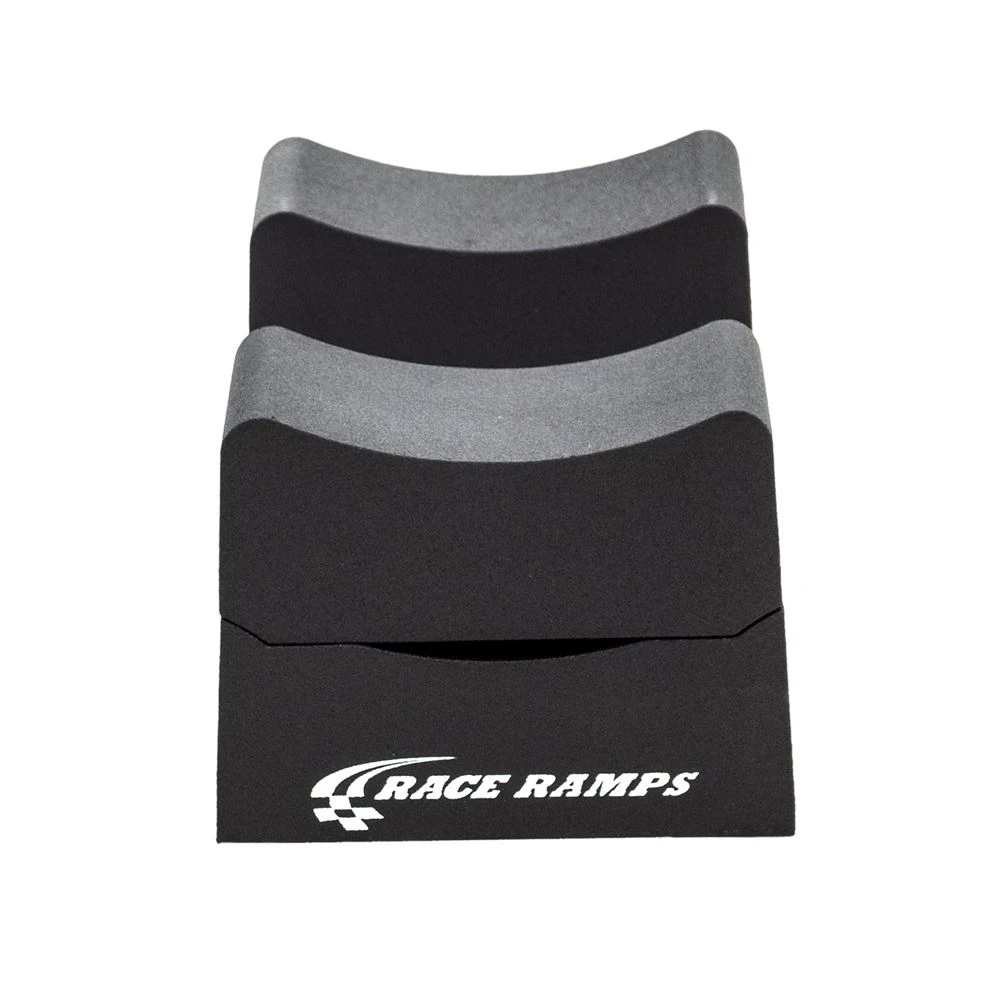

Race Ramps 10" Two-Piece Multi-Purpose Wheel Cribs Set (RR-WC-10-2)
The Race Ramps 10" Two-Piece Multi-Purpose Wheel Cribs Set (RR-WC-10-2) delivers an innovative and stable solution for lifting your vehicle safely and effectively. Designed for both functionality and flexibility, this set provides either a full 10-inch lift with two assembled cribs or a 5-inch lift using four separated crib halves. Each crib is built from high-density foam with a rugged traction coating, offering lightweight strength and surface protection. These cribs are ideal for vehicle maintenance, detailing, and display, providing dependable support and a sleek, non-damaging alternative to traditional jack stands.
KEY FEATURES AND BENEFITS:
Secure and Versatile Lift: Offers unobstructed access for maintenance or showcasing with adjustable 10-inch or 5-inch lift configurations.
Split-Design Flexibility: Unique two-piece cribs allow you to choose the height that best suits your application.
Lightweight and Durable: Made from 100% solid, high-density foam for strength without bulk.
Non-Slip Surface: Rugged coating ensures stability and grip while protecting floor surfaces.
Climate Friendly: Will not conduct heat or cold, making it safe for use in all weather conditions.
High Load Capacity: Each crib supports 1,500 lbs., with a total set capacity of 6,000 lbs.
Made in the USA: Proudly manufactured using a patented process for consistent performance.
Part Number: RR-WC-10-2

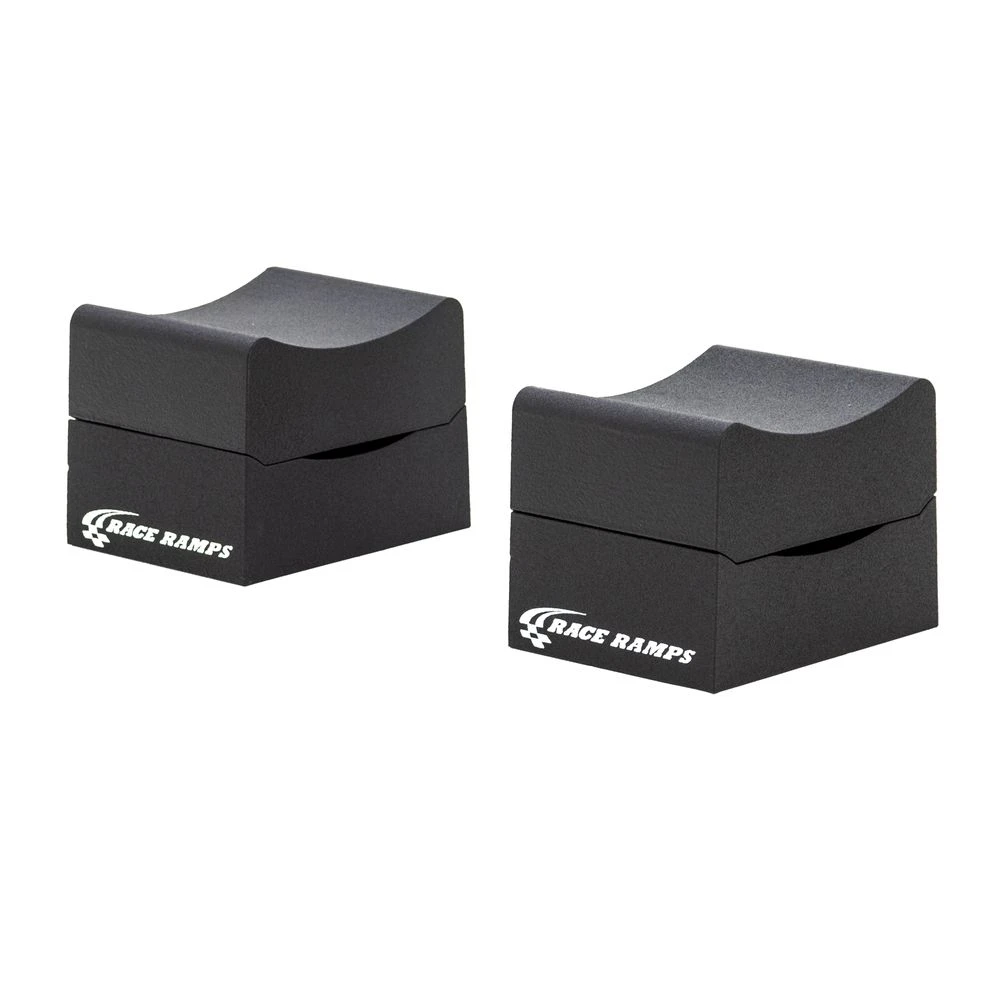

Sold As: Pair (includes two two-piece wheel cribs)

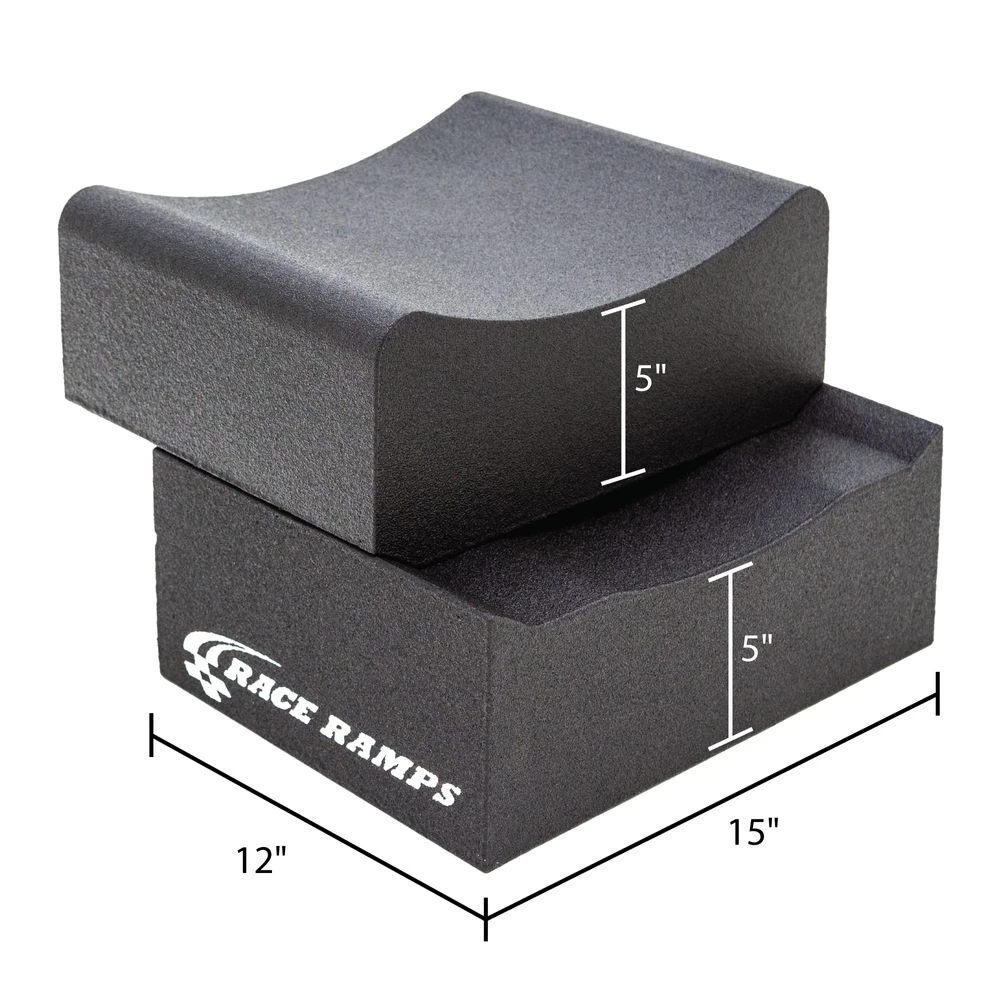

Length (per two-piece crib): 15 inches
Width (per two-piece crib): 12 inches
Height (per two-piece crib): 10 inches (can be split into two 5-inch sections)
Weight (per two-piece crib): 6 lbs.
Maximum Capacity (per crib): 1,500 lbs.
Total Vehicle Capacity: 6,000 lbs (when using four cribs)
Material: Expanded foam with traction coating
Tire Diameter Support: 24 to 30 inches
Prepare the Area: Ensure you are working on a flat, level, and solid surface.
Position the Cribs: Place the Race Ramps wheel cribs near the wheels you intend to lift.
Use a Jack: Carefully use an appropriate vehicle jack to lift one corner or side of your vehicle at a time.

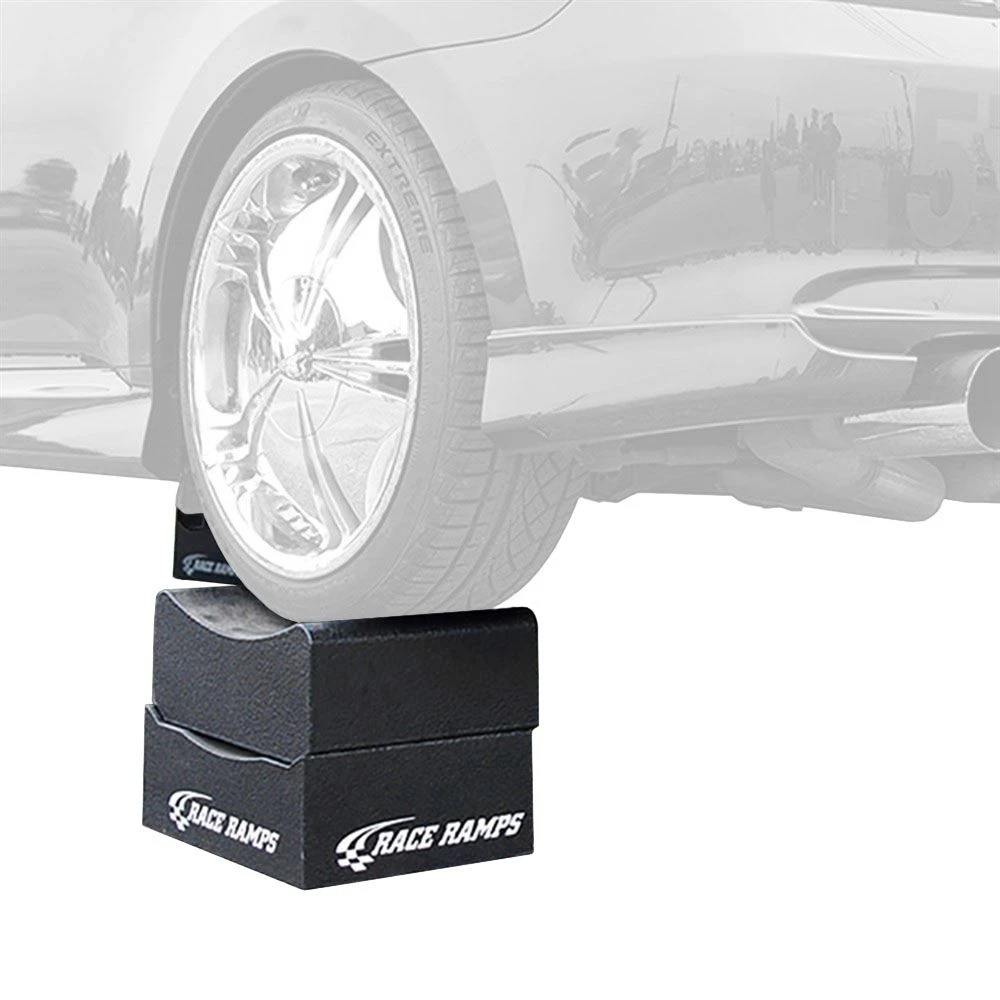

Align and Lower: Once the wheel is lifted to the desired height, carefully align the wheel crib under the tire. Ensure the tire is cradled securely within the crib.
Lower onto Crib: Slowly and carefully lower the vehicle onto the wheel crib, making sure the entire bottom surface of the crib makes full contact with the ground.

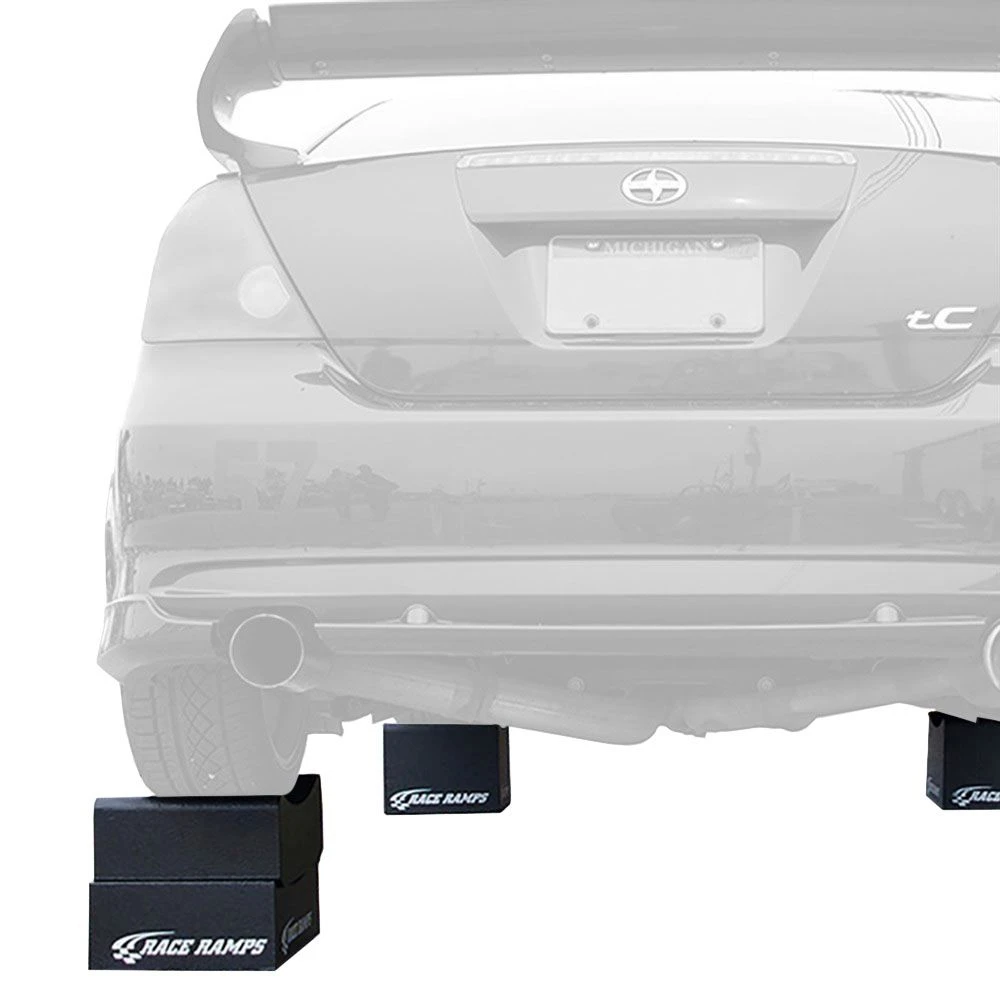

Repeat for Other Wheels: Repeat the process for the other wheels you wish to elevate.
Verify Stability: Before working under the vehicle, gently push on the vehicle to confirm it is stable and securely resting on all placed cribs.
To Use as 5-inch Cribs: If using at 5 inches of height, separate the two interlocking pieces of each 10-inch crib before placing them under the wheels using the same jacking procedure.
BENEFITS OF USING RACE RAMPS 10" TWO-PIECE MULTI-PURPOSE WHEEL CRIBS SET (RR-WC-10-2):
Enhanced Stability: Provides a more stable and secure platform for your vehicle compared to traditional jack stands, cradling the tire for superior safety.
Floor Protection: The non-slip, non-scuff coating prevents damage and marks on your garage or showroom floors.
Lightweight Portability: Exceptionally light design makes them easy to transport, position, and store, ideal for both shop and show use.
Temperature Insulating: The material does not conduct heat or cold, protecting your tires from extreme surface temperatures.
Versatile Application: Suitable for a wide range of tasks including routine maintenance, oil changes, detailing, and impressive vehicle displays at car shows.
Improved Access: The 10-inch lift offers ample clearance for unobstructed work underneath the vehicle.
Increased Maneuverability: Allows for greater freedom of movement when working under the elevated vehicle.
Split-design allows for flexible use as two 10-inch cribs or four 5-inch cribs.
Manufactured using an exclusive, patented process for consistent quality.
Constructed from 100% solid, high-density foam for robust support.
Coated with a rugged, anti-slip polyurea coating for enhanced grip.
Designed to securely cradle tires for stable vehicle support.
Will not rust or corrode over time.
Engineered to support a wide range of tire diameters from 24 to 30 inches.
Product identification
- Brand: Race Ramps
- Model / MPN: RR-WC-10-2
