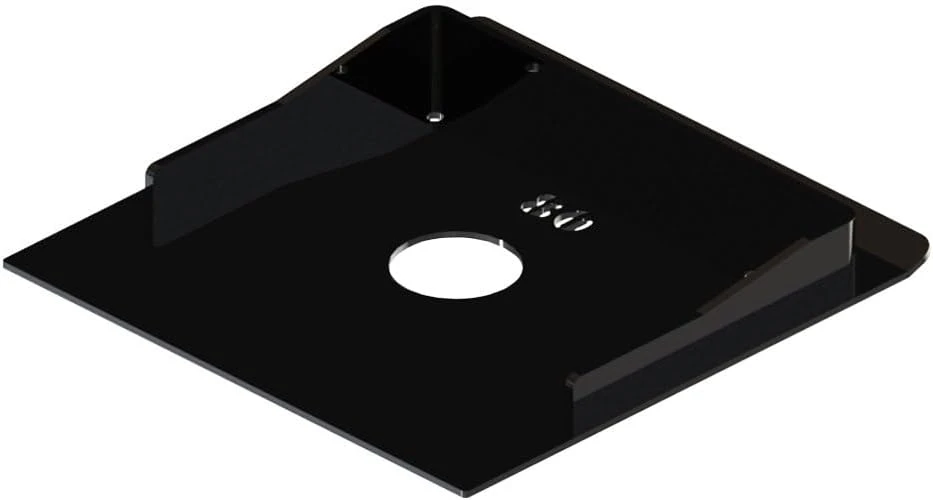

PullRite 12-1/2” MOR/RYDE SuperGlide Capture Plate (331708) (Model PLR331708)
The PullRite 12-1/2” MOR/RYDE SuperGlide Capture Plate (331708) is a crucial component of the SuperGlide fifth-wheel towing system. Designed for MOR/ryde pin boxes, this plate facilitates smooth and safe towing by isolating the king pin's rotation. This allows the SuperGlide hitch to automatically adjust, preventing the trailer from contacting the truck cab during turns. The quick-connect design simplifies installation and removal, adding convenience to your towing setup. This specific model is compatible with MOR/ryde pin boxes that are 12-1/2" wide.
KEY FEATURES AND BENEFITS:
Prevents Cab-Trailer Contact: The capture plate, working with the SuperGlide hitch, prevents the trailer from hitting the truck cab during turns, especially important for short-bed trucks.
Quick Connect Design: Allows for easy installation and removal of the capture plate.
MOR/ryde Compatibility: Specifically designed for MOR/ryde pin boxes that are 12-1/2 inches wide.
Essential for SuperGlide System: A required component for the proper functioning of the PullRite SuperGlide fifth-wheel hitch.
Precise Fit: Ensures proper engagement with the SuperGlide hitch and optimal towing performance.
Product Model: 331708.
Manufacturer: PullRite.
Compatibility: MOR/ryde pin boxes 12-1/2" wide.
Type: Quick Connect.
Finish: Powder Coated.
A (King Pin Plate Width): 12-1/2"
B (Leading Edge of King Pin to Leading Edge of King Pin Plate): 4-1/8"
C (Rear Edge to Leading Edge of King Pin Plate): 8-7/8"
Identify Your Pin Box: Locate the manufacturer's name and model number on your trailer's pin box. Confirm that it is a MOR/ryde pin box and measure its width to ensure it is 12-1/2 inches.
Measure Your Pin Box: Take the A, B, and C measurements as described above. The "A" measurement, the width of the king pin plate, is the most critical.
Attach the Capture Plate: Align the capture plate with the skid plate on your trailer and secure it according to the manufacturer's instructions. The quick-connect design should make this process straightforward.
Connect to SuperGlide Hitch: Once the capture plate is installed, you can connect your trailer to the SuperGlide hitch as you normally would. The capture plate will now interface with the hitch, allowing the SuperGlide system to operate correctly.
Disconnect: To remove the capture plate, follow the reverse of the installation steps, utilizing the quick-connect feature for easy detachment.
BENEFITS OF USING THE PULLRITE 12-1/2” MOR/RYDE SUPERGLIDE CAPTURE PLATE (331708):
Enhanced Maneuverability: Enables tighter turns without the risk of the trailer contacting the truck cab.
Safe Towing: Provides a secure connection between the trailer and the hitch, ensuring stable towing.
Easy Setup: The quick-connect design simplifies installation and removal.
Optimized Performance: Works seamlessly with the SuperGlide hitch to deliver smooth and controlled towing.
Isolates King Pin Rotation: For proper SuperGlide operation.
Facilitates Automatic Cam Action: Of the SuperGlide hitch.
Corrosion Resistance: Black powder coat finish.
Manufactured in the USA:
Product identification
- Brand: Pullrite
- Model / MPN: PLR331708
