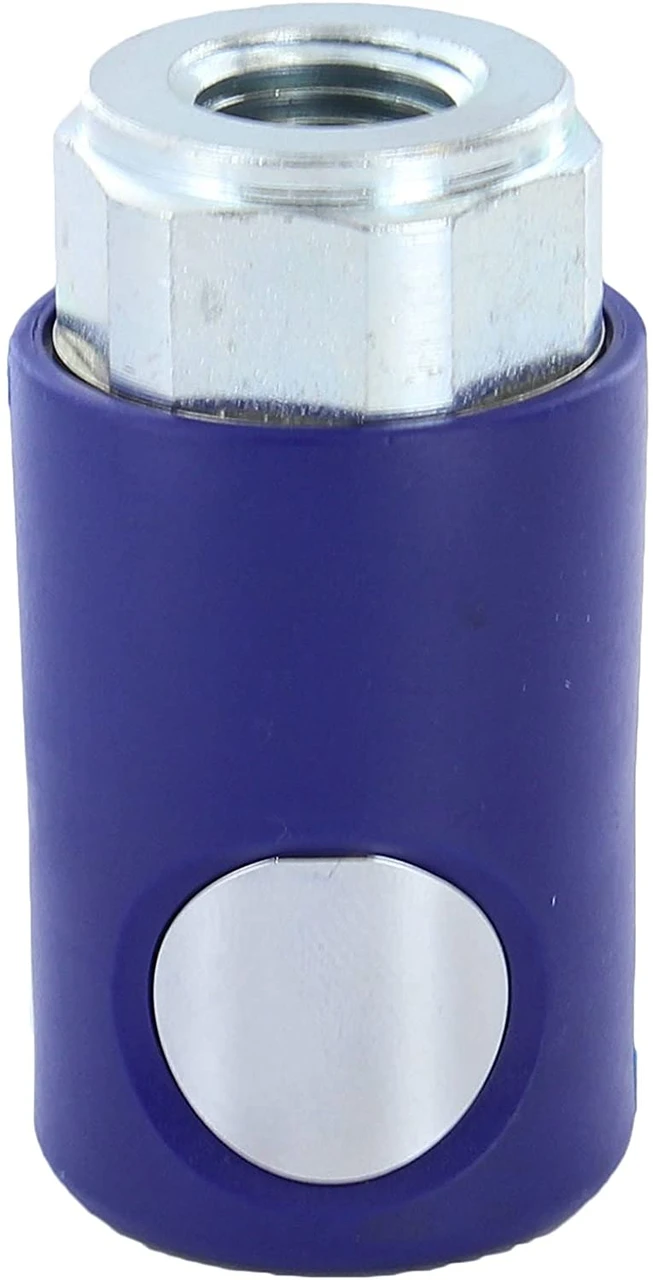

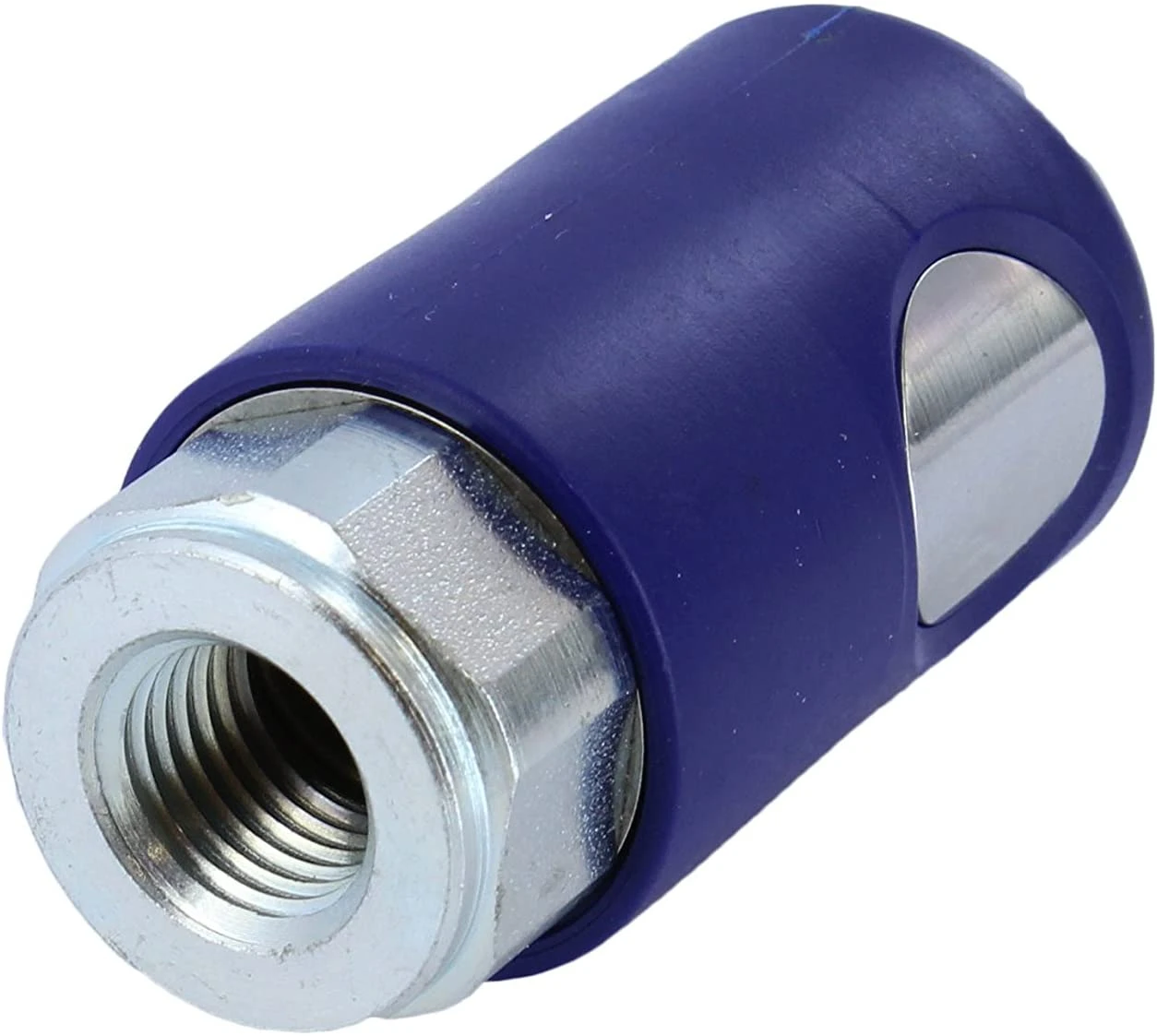

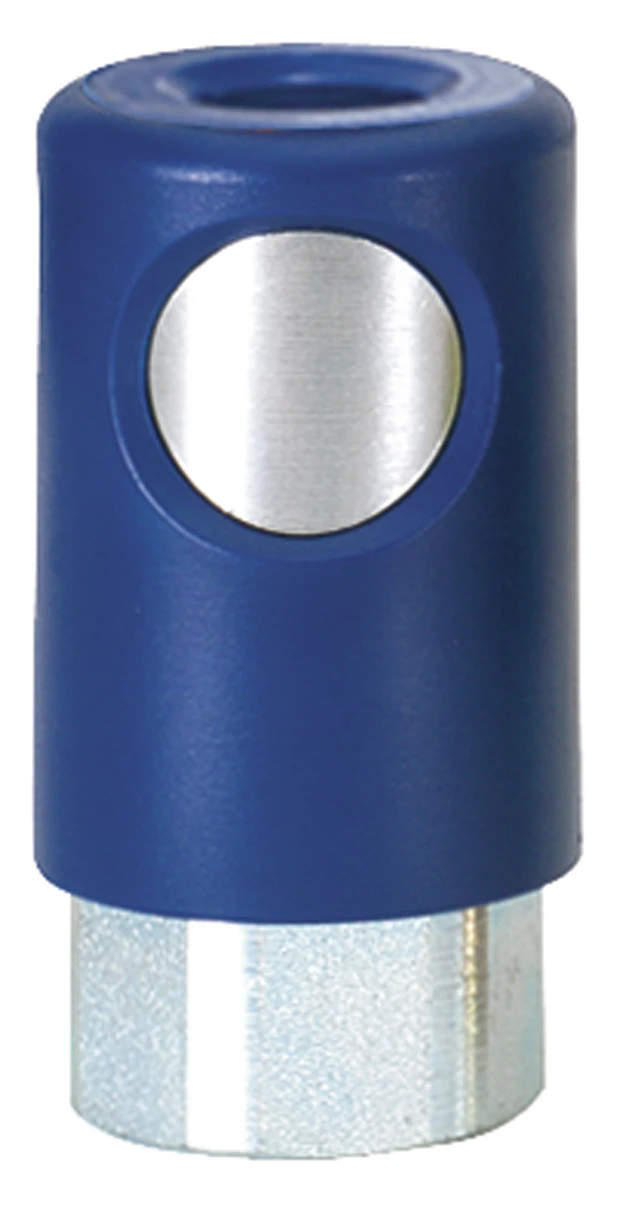

Prevost NPT 1/4" Industrial Female Coupler on Plate (IRC061201CP)
The Prevost NPT 1/4" Industrial Female Coupler on Plate (IRC061201CP) is a high-quality pneumatic component designed for reliable and efficient air tool connections. Its push-button release mechanism ensures quick, secure, and one-handed attachment and detachment, enhancing productivity and reducing downtime. Built with a composite exterior and robust steel internals, it offers durability while protecting delicate surfaces from scratches. The "on Plate" design allows for fixed mounting, creating a stable and easily accessible air connection point ideal for industrial, automotive, and workshop environments.
KEY FEATURES AND BENEFITS:
Secure Push-Button Release: Enables quick, one-handed connection and disconnection while preventing accidental releases.
Composite Body Construction: Lightweight, non-marring, and impact-resistant with electrically conducting properties.
Steel Internal Components: Provides durability and strength for demanding industrial applications.
NPT 1/4" Female Thread: Standard compatibility with 1/4" NPT male fittings.
Plate Mounting Design: Allows stable and permanent installation in a workspace.
Net Weight: 0.091 kg
Flow Rate: 28 CFM (P = 87 PSI, ΔP = 8.69 PSI)
ID Passage: 1/4"
Max. Output Pressure: 174 PSI
Profile: Industrial Interchange
Female Thread: NPT 1/4
Temperature Range: 5°F to 158°F
Included in Product: 1x Prevost NPT 1/4" Industrial Female Coupler on Plate (IRC061201CP)
Preparation: Turn off and depressurize the air compressor before connecting or disconnecting any fittings.
Mounting (Optional): Secure the coupler to a workbench, wall, or other surface using appropriate screws.
Connecting a Tool/Hose: Insert the 1/4" male plug into the coupler until a click confirms a secure connection.
Confirm Connection: Gently tug the hose or tool to verify it is latched properly.
Disconnecting a Tool/Hose: Press the blue push-button and pull the male plug out.
Depressurize (Post-Use): After use, shut off the compressor and bleed any remaining air.
BENEFITS OF USING PREVOST NPT 1/4" INDUSTRIAL FEMALE COUPLER ON PLATE (IRC061201CP):
Quick tool changes improve workflow and minimize downtime.
Prevents accidental disconnections, reducing hose whip risks.
Non-marring composite protects equipment and surfaces.
Long-lasting performance due to steel internal components.
Reduces static buildup for safer operation in sensitive areas.
Compact design with plate mounting for organized setups.
One-hand push-button release mechanism.
Impact-resistant, non-scratching composite body.
Electrically conducting material to dissipate static.
Steel internal components for superior durability.
Industrial interchange profile compatibility.
1/4" internal passage for efficient airflow.
Fixed mounting capability for stable connections.
Wide temperature range operation (5°F to 158°F).
Lightweight construction at 91 grams.
Engineered to minimize pressure drop.
Product identification
- Brand: Prevost
- Model / MPN: IRC061201CP
