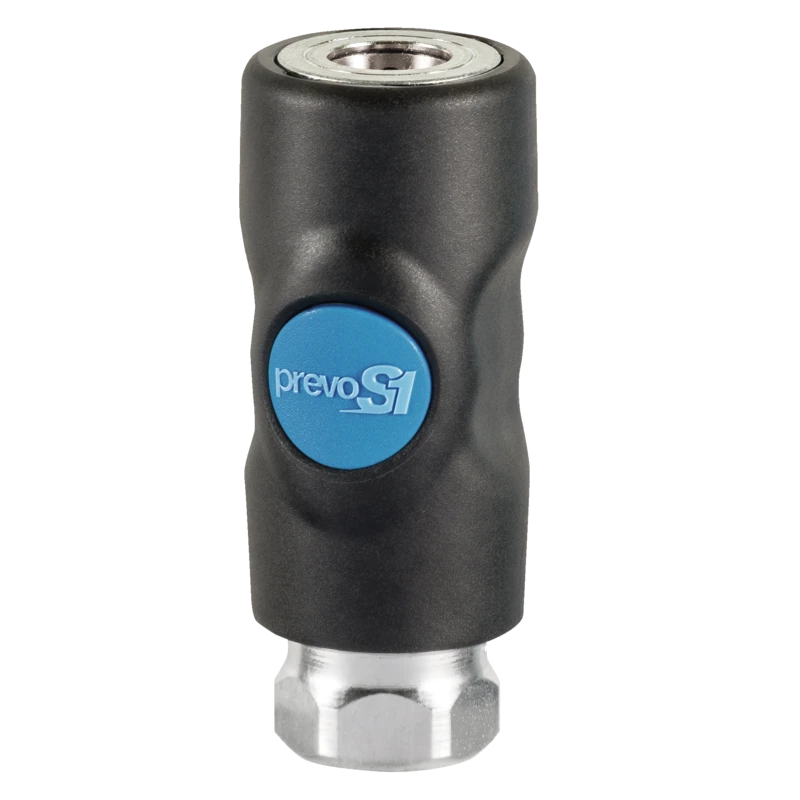

Prevost NPT 1/4" Industrial 1/4" ID Female Coupler (ISI061201)
The Prevost NPT 1/4" Industrial 1/4" ID Female Coupler (ISI061201) is a high-performance component designed for safe and efficient integration into compressed air systems. It provides a reliable and leak-free connection for air tools and hoses, ensuring optimal pneumatic performance. With its advanced one-push safety system, this coupler allows controlled air release and prevents dangerous hose whip during disconnection. The composite body is lightweight and non-marring, while the robust internal components deliver long-lasting durability and consistent performance in industrial environments.
KEY FEATURES AND BENEFITS:
Enhanced Safety System: Incorporates a unique "one push" mechanism that safely purges downstream air, preventing hose whip during disconnection.
Optimal Airflow: Ensures smooth air transfer for improved efficiency and reliable tool operation.
Lightweight Construction: Composite body reduces user fatigue and protects delicate surfaces from scratches.
Reliable Connection: Maintains a secure and leak-resistant seal with Prevost Industrial Interchange Style air plugs.
Broad Compatibility: Features a 1/4" NPT female thread and 1/4" ID passage for compatibility with standard pneumatic setups.
Net weight: 0.097 kg
Flow rate: 29 CFM (at 87 PSI, ΔP = 8.69 PSI)
ID passage: 1/4"
Max. output pressure: 174 PSI
Profile: INDUSTRIAL
Female thread: NPT1/4
Temperature: 5°F to 158°F
A (Length): 2.68 inches
B (Width): 1.18 inches
C (Height): 0.79 inches
Prepare Connection Points: Ensure the male plug is clean and free of debris.
Connect Tool/Hose: Push the male plug firmly into the female coupler until you hear or feel a positive click.
Verify Connection: Gently tug on the connection to ensure it is properly latched.
Operate Equipment: Once connected, the air system is ready for use.
Disconnect Safely: Press the release button to purge trapped air and remove the male plug safely.
BENEFITS OF USING PREVOST NPT 1/4" INDUSTRIAL 1/4" ID FEMALE COUPLER (ISI061201):
Improves workplace safety by preventing hose whip.
Supports consistent and efficient pneumatic tool performance.
Reduces wear on hoses and fittings through controlled disconnection.
Streamlines tool changes with quick and easy operation.
Ensures reliable, leak-free connections.
Protects surfaces from scratches with its non-marring body.
Lightweight design reduces user strain during handling.
Push-button safety release for secure disconnection.
Durable internal components built for long-term use.
Nitrile seal ensures a tight, leak-free air connection.
Anti-static composite material enhances safety.
Compact dimensions for easy use in confined spaces.
Resistant to a wide range of operating temperatures.
Clear thread and passage size markings for easy identification.
Product identification
- Brand: Prevost
- Model / MPN: ISI061201
