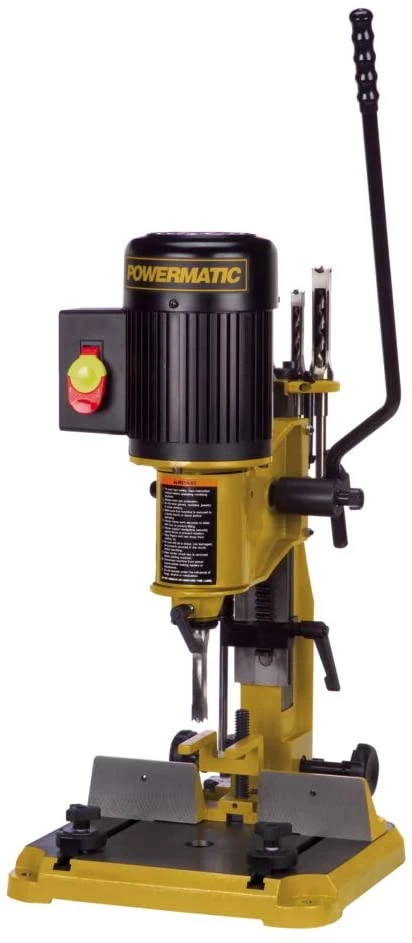

Powermatic PM701 3/4HP 1PH Benchtop Mortiser (1791310)
The Powermatic PM701 3/4HP 1PH Benchtop Mortiser (1791310) tackles your woodworking projects with precision and ease. Create clean, accurate mortises with the in-line depth stop, eliminating the need for constant bit adjustments. The heavy-duty, reversible handle allows for comfortable use by both left and right-handed individuals, and can be swapped to either side without requiring any tools.
KEY FEATURES AND BENEFITS:
Setting up Your Mortising Tasks:

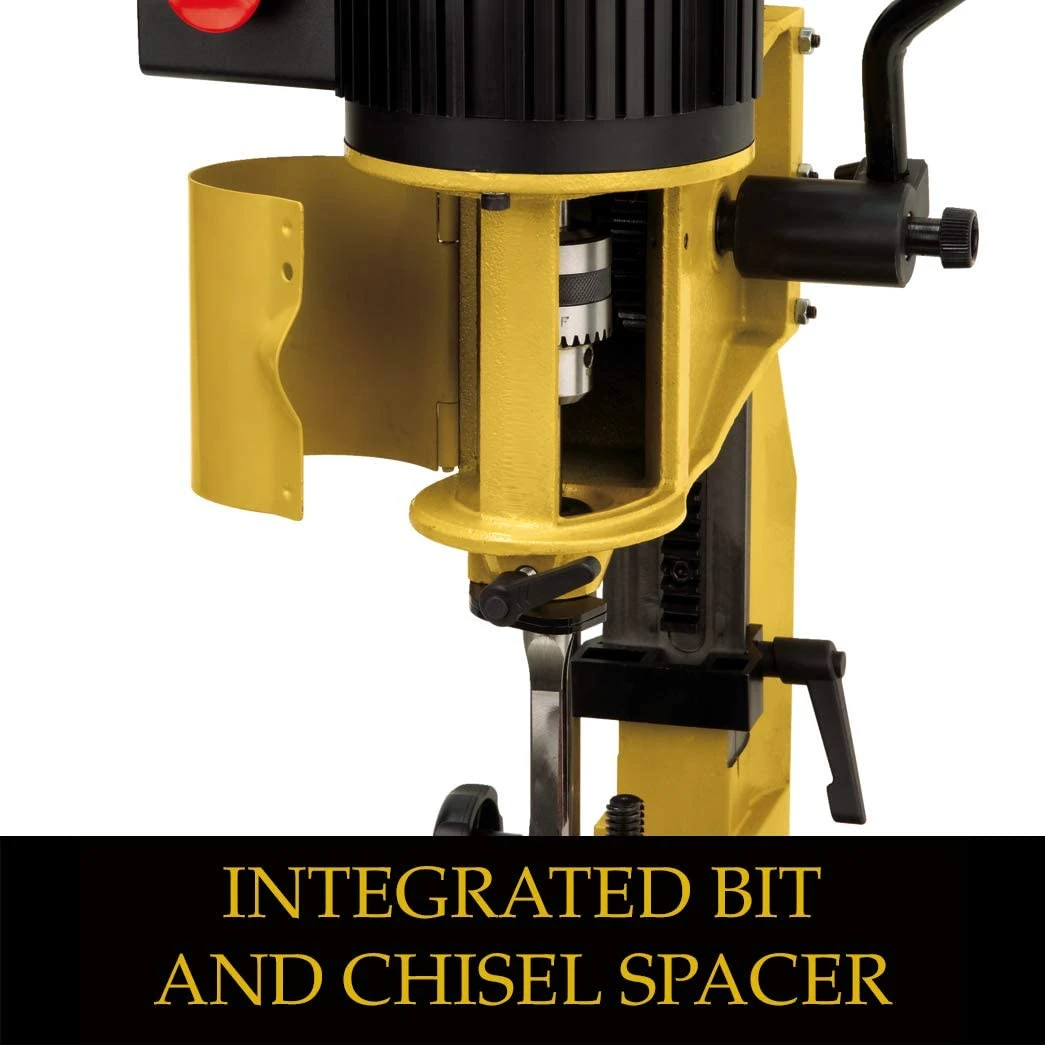

Integrated bit and chisel spacer system ensures quick and accurate positioning
Large work surfaces on the table and fence provide stability and support for clean cuts
Convenient Design Features:
Large, hinged chuck door with magnetic catch for easy bit changes
Rack and pinion fence design allows smooth and effortless adjustments
Secure Workholding:

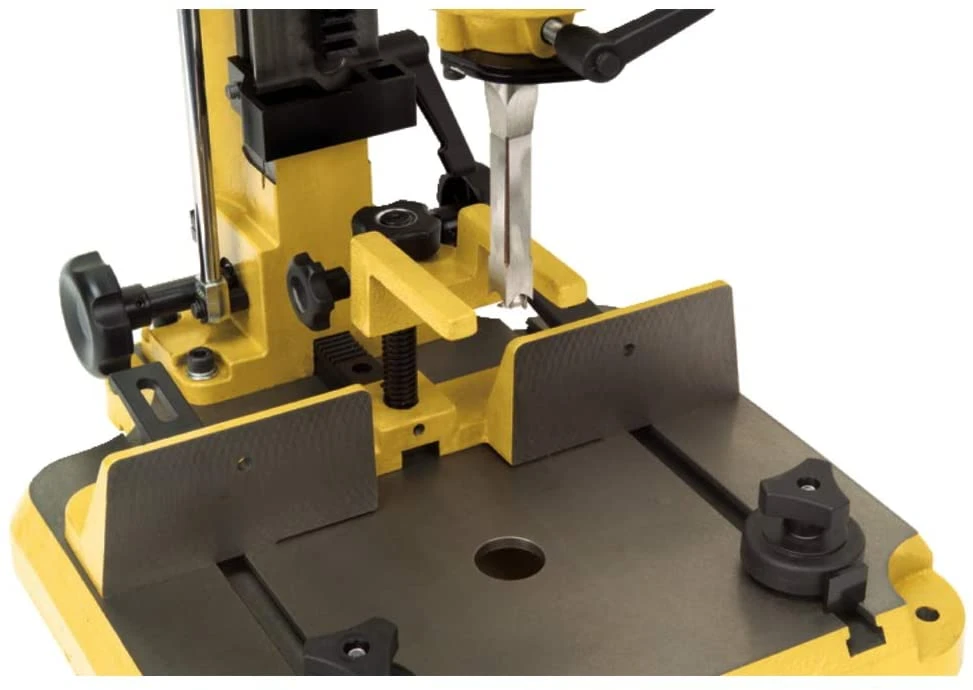

Double-lock stock hold-down system (top and side) prevents workpiece slippage
Reversible hold-down accommodates material thicknesses from zero to five inches
Horsepower: 3/4 HP
Voltage: 115/230V (single-phase)
Chuck Size: 1/2 inch
Stroke Capacity: 5-1/2 inches
Spindle Speed: 1725 RPM
Chisel Shank Capacity: 3/4 inch
Table Size: 11 x 13 inches
Fence Size: 2 5/8 x 12 1/2 inches
To effectively use the Powermatic PM701 Benchtop Mortiser:
Securely place the mortiser on a stable work surface.

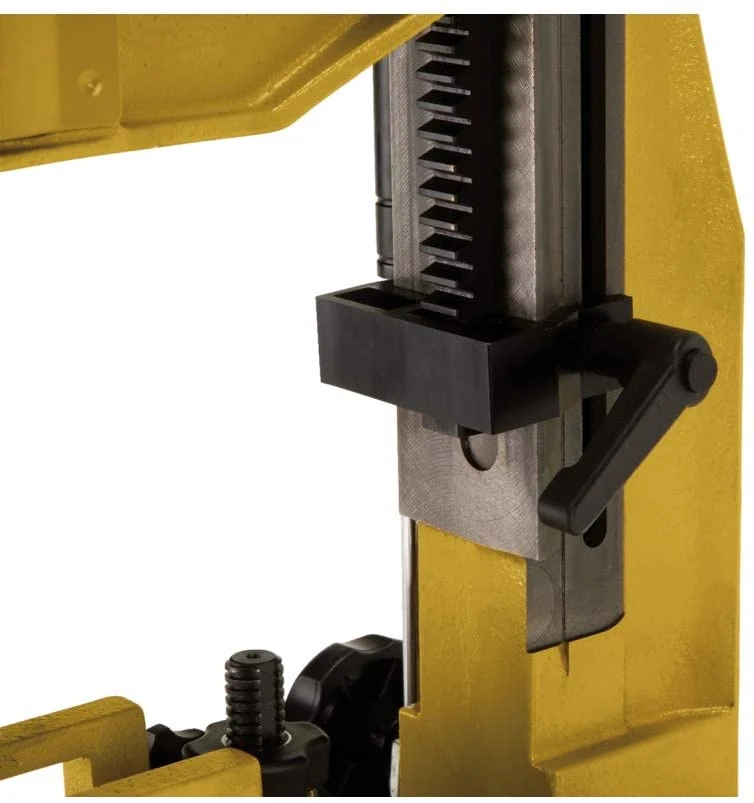

Adjust the depth stop to your desired mortise depth.
Position your workpiece and secure it with the double-lock stock hold-down system.
Adjust the fence for precise alignment.
Operate the mortiser using the reversible handle for comfortable use.
BENEFITS OF USING Powermatic PM701 3/4HP 1PH Benchtop Mortiser (1791310):
Creates precise mortises with ease and efficiency
Accommodates both left and right-handed users with its reversible handle
Ensures stable and secure workholding to prevent errors
Features convenient design elements for effortless operation
In-line depth stop for accurate mortise depths
Heavy-duty reversible handle for comfortable use by left and right-handed individuals
Integrated chisel and tool holder with sharpening stone
1/2" drill chuck with 4" chuck key included
Removable safety switch key for added safety during operation
Product identification
- Brand: Powermatic
- Model / MPN: 1791310
