Phoenix USA 99-02 Ford F450/F550 DOT Sim Set (NF19)
Phoenix USA 99-02 Ford F450/F550 DOT Sim Set (NF19) offers a practical and visually appealing upgrade for your commercial vehicle. This set of four wheel simulators is constructed from high-quality polished stainless steel, providing a lasting bright finish that mimics the look of expensive aluminum wheels. Designed for specific fitment on 1999-2002 Ford F450 and F550 Super Duty trucks, as well as the 2002 Ford E-550 Econoline Super Duty and 2005-2010 Hino 165 and 185 models equipped with 19.5-inch, 8-lug wheels featuring a 225mm bolt circle and M14x2 lug studs, and 5 hand holes. This kit provides a simple and effective way to enhance your vehicle's appearance without the need for complex modifications or specialized tools. The DOT-approved design ensures compliance with relevant transportation regulations.
KEY FEATURES AND BENEFITS:
Specific Vehicle Fitment: Engineered precisely for 1999-2002 Ford F450/F550, 2002 Ford E-550, and 2005-2010 Hino 165/185 models with 19.5" 8-lug wheels and 5 hand holes, ensuring a secure and aesthetically pleasing fit.
Polished Stainless Steel Construction: Manufactured from high-grade polished stainless steel for excellent resistance to corrosion and a long-lasting, mirror-like shine that enhances the vehicle's overall look.
DOT Approved: Meets Department of Transportation standards, ensuring the product is suitable for commercial vehicle use and compliant with regulations.
Bolt-On Installation: Designed for easy, over-the-lug mounting, eliminating the need to remove the existing lug nuts. This simplifies the installation process and saves time.
Complete Kit: Includes two front wheel simulators (dished design), two rear wheel simulators (deep-dished design for dual wheels), and all necessary mounting hardware for a straightforward installation.
Enhanced Appearance: Instantly upgrades the look of standard steel wheels, providing the visual appeal of premium aluminum alloy wheels at a fraction of the cost.
Simplified Maintenance: Easy to remove for routine tire and wheel maintenance without significant effort.
Pop-Out Front Centers: Front simulators feature removable center caps, providing convenient access to manual locking hubs on 4WD Ford models.
Optional Valve Extensions: Some configurations (like NF19M) include AML2 Air Max braided stainless valve extensions for easier inflation of inner and outer rear tires.
Product Name: Phoenix USA DOT Style Bolt-On Wheel Simulator Kit
Product Code: NF19 (and potentially NF19M with valve extensions)
Vehicle Compatibility:
1999-2002 Ford F450 Super Duty
1999-2002 Ford F550 Super Duty
2002 Ford E-550 Econoline Super Duty
2005-2010 Hino 165
2005-2010 Hino 185
Wheel Size: 19.5 inches diameter, 6 inches wide
Lug Pattern: 8 lugs on a 225mm bolt circle
Lug Stud Size: M14x2
Mounting Type: Over-the-Lug, Bolt-On
Material: Polished Stainless Steel
Front Simulator Design: Dished with pop-out center
Rear Simulator Design: Deep-Dished
Finish: Polished

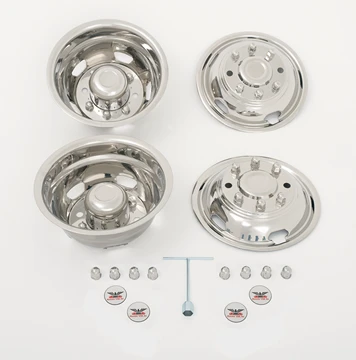

Kit Contents: 2 Front Simulators, 2 Rear Simulators, Mounting Hardware, Installation Tool, Instruction Sheet (some kits may also include valve extensions)
Approximate Kit Weight: 22.8 – 23.79 lbs (depending on configuration)
Preparation: Ensure your vehicle is parked on a level surface with the parking brake engaged. Gather all components of the Phoenix USA DOT Wheel Simulator Kit, including the simulators, mounting hardware, and installation tool.
Position the Front Simulator: Take one of the front wheel simulators (identified by its dished design and potentially a pop-out center cap). Align it carefully over the wheel, ensuring the lug nut holes on the simulator match the position of your vehicle's lug nuts.
Install Mounting Hardware (Front): Place the provided mounting brackets or clips over the existing lug nuts. The exact type of hardware may vary slightly, so refer to the included instruction sheet for specific details. Ensure they are seated securely against the wheel.
Secure the Front Simulator: Position the front simulator so that the pre-drilled holes align with the installed mounting hardware. Use the provided installation tool (typically a wrench or socket) to tighten the simulator onto the mounting hardware. Do not overtighten; snug is sufficient. If your vehicle has manual locking hubs, ensure the pop-out center of the simulator is accessible.
Position the Rear Simulator: Take one of the rear wheel simulators (identified by its deeper dished design). Align it carefully over the outer rear wheel, ensuring the lug nut holes on the simulator match the position of the lug nuts.
Install Mounting Hardware (Rear): Similar to the front, place the provided mounting brackets or clips over the existing lug nuts on the outer rear wheel. Ensure they are seated securely.
Secure the Rear Simulator: Position the rear simulator so that the pre-drilled holes align with the installed mounting hardware. Use the installation tool to tighten the simulator onto the mounting hardware. Again, avoid overtightening.
Repeat for Remaining Wheels: Follow steps 2-7 for the remaining front and rear wheels.
Final Check: Once all simulators are installed, double-check that they are securely fastened and that there is no movement. If your kit includes valve extensions, install them as per the provided instructions.
BENEFITS OF USING THE PHOENIX USA 99-02 FORD F450/F550 DOT SIM SET (NF19):
Enhanced Vehicle Aesthetics: Significantly improves the overall appearance of your Ford or Hino commercial vehicle, providing the premium look of polished aluminum wheels.
Cost-Effective Upgrade: Offers a more affordable alternative to purchasing complete sets of aluminum wheels while still achieving a similar visual impact.
Simple and Fast Installation: The bolt-on design allows for a quick and easy installation process without the need for specialized tools or removing the existing lug nuts, saving time and effort.
Durable and Long-Lasting: Constructed from polished stainless steel, ensuring resistance to rust, corrosion, and the rigors of daily use, providing a long service life.
DOT Compliance: Being DOT approved ensures that the simulators meet safety and regulatory standards for commercial vehicles.
Easy Access for Maintenance: The simulators can be easily removed when necessary for tire rotations, brake inspections, or other wheel-related maintenance.
Improved Resale Value (Potential): A well-maintained and visually appealing vehicle may have a better resale value.
Mirror-Like Polished Finish: Provides a brilliant and reflective surface that enhances the vehicle's style.
Over-the-Lug Mounting System: Simplifies installation by utilizing existing lug nuts for secure attachment.
Dished Front Design: Contributes to the simulated alloy wheel appearance on the front axle.
Deep-Dished Rear Design: Accommodates the dual wheel setup on the rear axle for a cohesive look.
Included Mounting Components: Provides all necessary hardware for a hassle-free installation.
Corrosion-Resistant Material: Stainless steel construction withstands harsh environmental conditions.
Pop-Out Front Hub Access: Allows easy access to manual locking hubs on compatible 4×4 models.
Braided Valve Extension Option: Select kits offer convenient access for inflating inner and outer rear tires.
Protective Rolled Edges: Enhances the structural integrity and provides safer handling during installation and removal.
Lightweight Design: Minimizes added weight to the wheels, potentially impacting fuel efficiency less than full wheel replacements.
Product identification
- Brand: Phoenix USA
- Model / MPN: NF19
