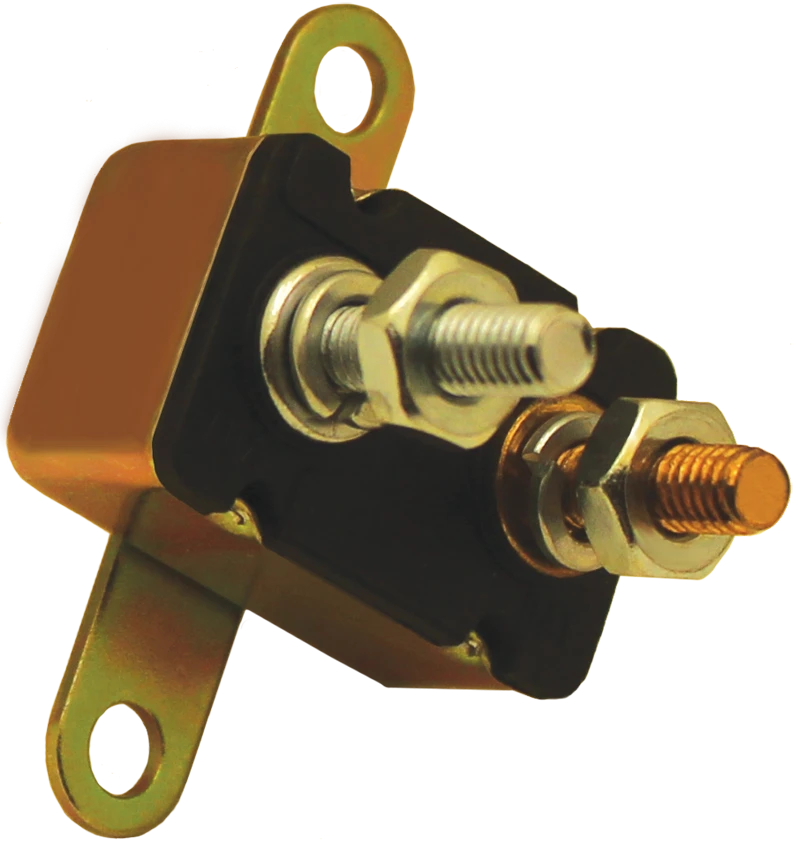

Phoenix USA 50 AMP Circuit Breaker (72175)
The Phoenix USA 50 AMP Circuit Breaker (72175) is a crucial safety component specifically designed for integration within Phoenix USA air compressor kits, notably the AC12V3PK and AC12V3PK2 models. This device acts as an essential safeguard for the electrical system of your air compressor, providing reliable protection against overcurrents that can potentially damage the unit or other connected components. Its 50 AMP rating ensures that the circuit will be interrupted in the event of excessive electrical flow, preventing overheating and potential hazards. As a dedicated part for these specific air compressor kits, it guarantees compatibility and seamless integration, contributing to the overall operational safety and longevity of your equipment.
KEY FEATURES AND BENEFITS:
Automatic Overcurrent Protection: This circuit breaker automatically interrupts the electrical circuit when the current exceeds a safe level, preventing damage to the compressor motor and wiring.
Specific to Phoenix USA Models: Designed specifically for the AC12V3PK and AC12V3PK2 air compressor kits, ensuring optimal performance and compatibility.
50 AMP Rating: Provides tailored protection for the power demands of these compressors, extending the lifespan of your investment.
Easy Integration: Serves as a direct replacement part, allowing for quick restoration of protective capabilities if the original breaker fails.
Product Name: Phoenix USA 50 AMP Circuit Breaker
Part Number: 72175
Amperage Rating: 50 Amps
Compatibility: Designed for Phoenix USA Air Compressor Kits AC12V3PK and AC12V3PK2
Function: Overcurrent protection for electrical circuits
Mounting: Designed for integration within the specified air compressor unit's electrical system.
Dimensions (Approximate): 1.39 inches (length) x 1.93 inches (width) x 1.26 inches (height)
Weight (Approximate): 0.06 lbs
Locate the Existing Circuit Breaker: Identify the current circuit breaker within the electrical system of your Phoenix USA AC12V3PK or AC12V3PK2 air compressor.
Disconnect Wiring: Carefully disconnect the electrical wires attached to the terminals of the old circuit breaker. Note the position of each wire for correct reconnection.
Remove the Old Breaker: Unscrew or unclip any fasteners holding the old circuit breaker in place and remove it.
Position the New Breaker: Place the new Phoenix USA 50 AMP Circuit Breaker (72175) in the designated mounting location.
Reconnect Wiring: Securely reconnect the electrical wires to the corresponding terminals on the new circuit breaker, ensuring they are firmly attached.
Secure the Breaker: Fasten the new circuit breaker in place using screws or clips.
Restore Power: Once the new circuit breaker is securely installed and all wiring is correctly connected, carefully restore power to the air compressor system.
Test Operation: Operate the air compressor to ensure it functions correctly and that the new circuit breaker is in place to provide overcurrent protection.
BENEFITS OF USING THE PHOENIX USA 50 AMP CIRCUIT BREAKER (72175):
Provides specific and reliable overcurrent protection tailored to the electrical demands of the AC12V3PK and AC12V3PK2 models, minimizing the risk of electrical damage.
Ensures easy and seamless integration as a direct replacement part without the need for modifications.
Prevents electrical faults, contributing to the extended lifespan of your air compressor system and reducing the potential for costly repairs.
Direct Fit Compatibility: Engineered for seamless integration with AC12V3PK and AC12V3PK2 air compressor models.
Essential Electrical System Protection: Safeguards the motor, wiring, and other components from damage due to overloads.
Compact and Lightweight Design: Maintains the original form factor within the air compressor unit.
Reliable Performance: Designed for consistent and dependable protection of your electrical system.
Easy Replacement: Facilitates straightforward swapping of a faulty or old circuit breaker.
Product identification
- Brand: Phoenix USA
- Model / MPN: 72175
