Phoenix USA jumper cable details

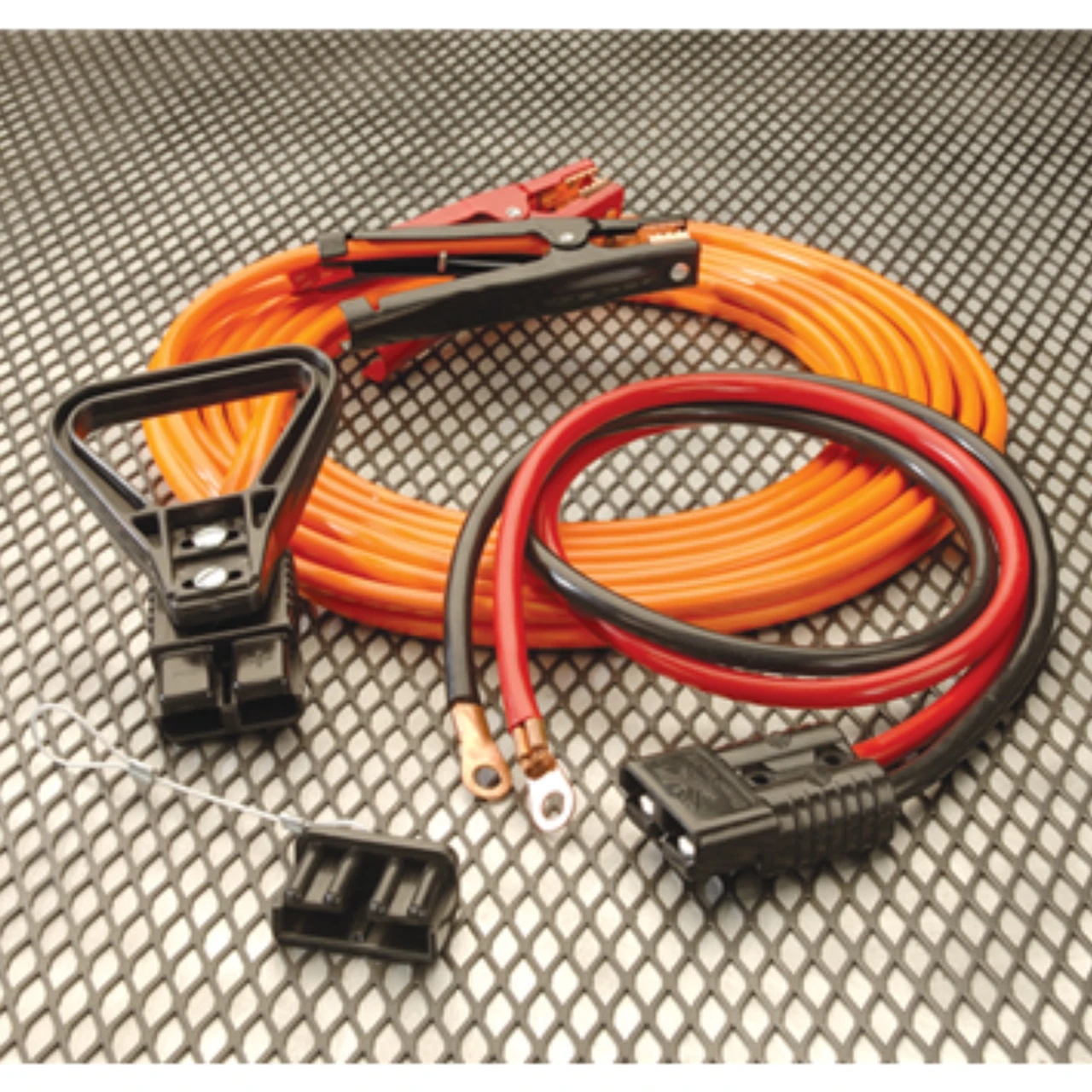

Phoenix USA 30" Jumper Cable Kit w/ 10" Harness (JM30-10)
The Phoenix USA 30" Jumper Cable Kit w/ 10" Harness (JM30-10) offers a robust and convenient solution for jump-starting vehicles. Designed for professional use, this kit features heavy-duty components and a user-friendly quick-connect system, making it an essential tool for tow trucks, recovery vehicles, construction equipment, emergency services, and fleet maintenance. The 30-foot jumper cables provide ample reach, while the permanently installed 10-foot harness ensures a secure and rapid connection to the service vehicle's battery. This kit prioritizes safety and efficiency, allowing for quick and reliable jump starts in various situations.
KEY FEATURES AND BENEFITS:
Extended Reach: The 30-foot jumper cables offer significant length, providing flexibility when positioning the service vehicle for a jump start.
Heavy-Duty Power Transfer: Constructed with thick 4 AWG cables, these jumper cables are designed to handle high current loads, ensuring efficient power transfer to the disabled vehicle.
Secure and Rapid Connection: The quick-connect plug system on both the jumper cables and the 10-foot harness allows for fast and hassle-free connections, saving valuable time during critical situations.
Permanent Vehicle Integration: The 10-foot harness with ring terminals is designed for permanent attachment to the service vehicle's battery, ensuring it's always ready for use.
Enhanced Safety: The heavy-duty clamps are typically insulated and rated for high amperage (often around 500 Amps), providing a secure grip and minimizing the risk of accidental shorts.
Protection from the Elements: The included dust cover for the vehicle-mounted plug protects the connection point from dirt, moisture, and other environmental factors, ensuring reliable performance over time.
Durable Construction: The jumper cables feature a rugged outer jacket that resists damage from oil, chemicals, sunlight, and temperature extremes, contributing to the kit's longevity.
Jumper Cable Length: 30 feet
Harness Length: 10 feet
Cable Gauge: 4 AWG (American Wire Gauge)
Typical Maximum Current Rating: Around 1250 Amps (verify with the specific product listing)
Clamp Rating: Typically around 500 Amps (verify with the specific product listing)
Connection Type: Quick-connect plug system
Battery Connection (Harness): Ring terminals
Cable Jacket Material: Heavy-duty, oil/chemical/UV resistant (typical)
Clamp Material: Solid copper contacts with rubber insulation (typical)
Included: 30-foot jumper cables, 10-foot battery harness with plug, dust cover for plug, mounting hardware (typical)
Manufacturer: Phoenix USA, Inc.
Prepare the Service Vehicle: Ensure the service vehicle is positioned safely near the vehicle needing a jump start. Turn off the ignition of the service vehicle.
Connect the Harness (if not already connected): If the 10-foot harness is not already permanently installed on the service vehicle's battery, attach the ring terminals to the positive (+) and negative (-) terminals of the service vehicle's battery. Ensure a secure connection.
Mount the Plug: Mount the quick-connect plug of the 10-foot harness in a convenient and accessible location on the service vehicle, such as the bumper or near the battery compartment, using the provided mounting hardware.
Connect the Jumper Cables to the Harness: Remove the dust cover from the mounted plug on the service vehicle. Take the 30-foot jumper cables and firmly plug the corresponding connector into the mounted plug on the service vehicle.
Connect to the Disabled Vehicle's Battery:
Attach the RED clamp of the jumper cables to the positive (+) terminal of the disabled vehicle's battery.
Attach the BLACK clamp of the jumper cables to a solid, unpainted metal part of the disabled vehicle's chassis or engine block, away from the battery and any moving parts. Do not connect the black clamp directly to the negative (-) terminal of the disabled vehicle's battery to avoid potential sparks near the battery.
Start the Service Vehicle: Start the engine of the service vehicle and let it run for a few minutes to allow some charge to transfer to the disabled vehicle's battery.
Attempt to Start the Disabled Vehicle: Try to start the engine of the disabled vehicle. If it doesn't start immediately, let the service vehicle run for a few more minutes and try again.
Disconnect the Jumper Cables (in reverse order): Once the disabled vehicle has started, carefully disconnect the jumper cables in the reverse order of connection:
Remove the BLACK clamp from the disabled vehicle's chassis.
Remove the RED clamp from the positive (+) terminal of the disabled vehicle's battery.
Unplug the jumper cable connector from the plug on the service vehicle.
Replace the dust cover on the plug of the service vehicle.
Let the Disabled Vehicle Run: Allow the disabled vehicle to run for a while to recharge its battery.
BENEFITS OF USING THE PHOENIX USA 30" JUMPER CABLE KIT W/ 10" HARNESS (JM30-10):
Utilizing the Phoenix USA JM30-10 jumper cable kit offers several key advantages for professionals and fleet operators. The extended 30-foot reach provides greater flexibility in positioning vehicles for jump starts, particularly in challenging roadside situations.
The heavy-duty 4 AWG cables ensure efficient and reliable power transfer, minimizing the time needed for a successful jump start.
The quick-connect system significantly streamlines the process, allowing for faster and safer connections compared to traditional clamp-to-battery methods.
The permanently installed 10-foot harness on the service vehicle ensures that the jump start system is always readily accessible and eliminates the need to fumble with loose cables.
Furthermore, the robust construction of the cables and clamps contributes to the longevity and dependability of the kit, making it a cost-effective solution for frequent use.
The added protection of the dust cover for the vehicle-mounted plug helps maintain the integrity of the connection point, ensuring consistent performance.
Generous 30-foot cable length: For versatile positioning.
Intuitive quick-connect mechanism: For rapid engagement.
Dedicated 10-foot harness: For secure, on-vehicle integration.
Insulated, high-amperage clamps: For safe operation.
Protective plug cover: To shield against environmental contaminants.
Rugged cable jacket: For resistance to wear and tear.
Solid copper clamp contacts: For efficient current flow.
Ring terminals: For a direct and stable battery connection on the harness.
Included mounting hardware: For easy plug installation.
Product identification
- Brand: Phoenix USA
- Model / MPN: JM30-10
