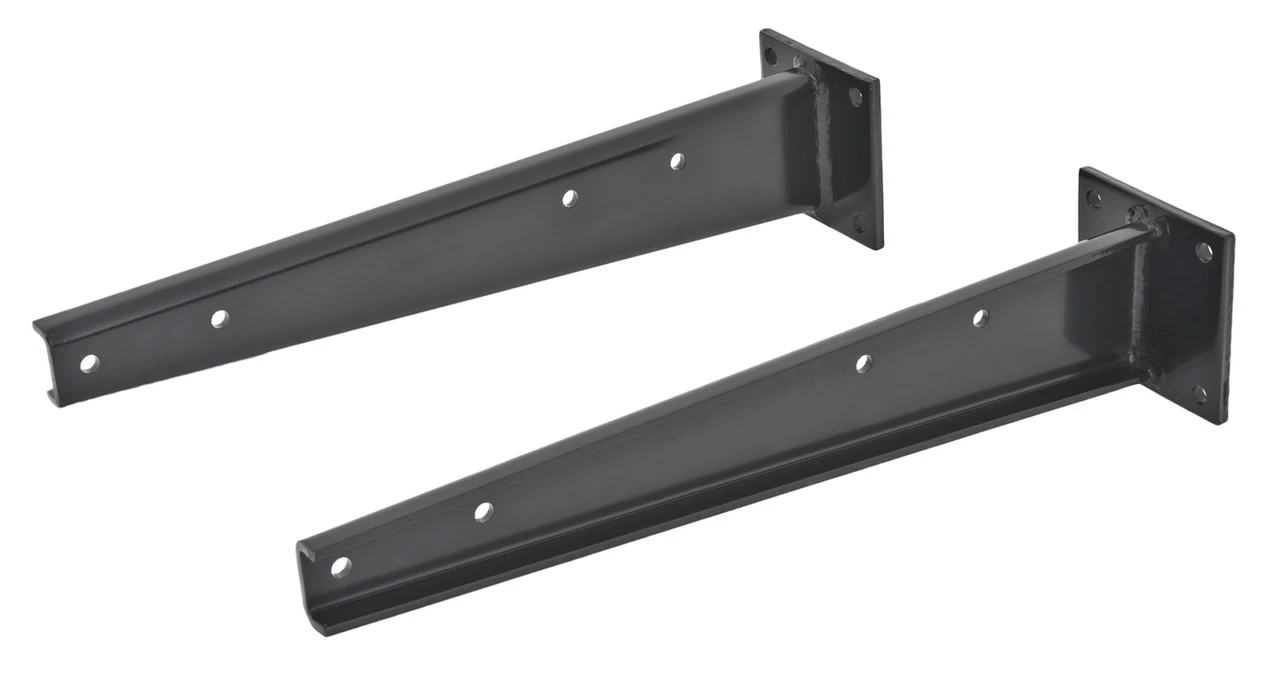

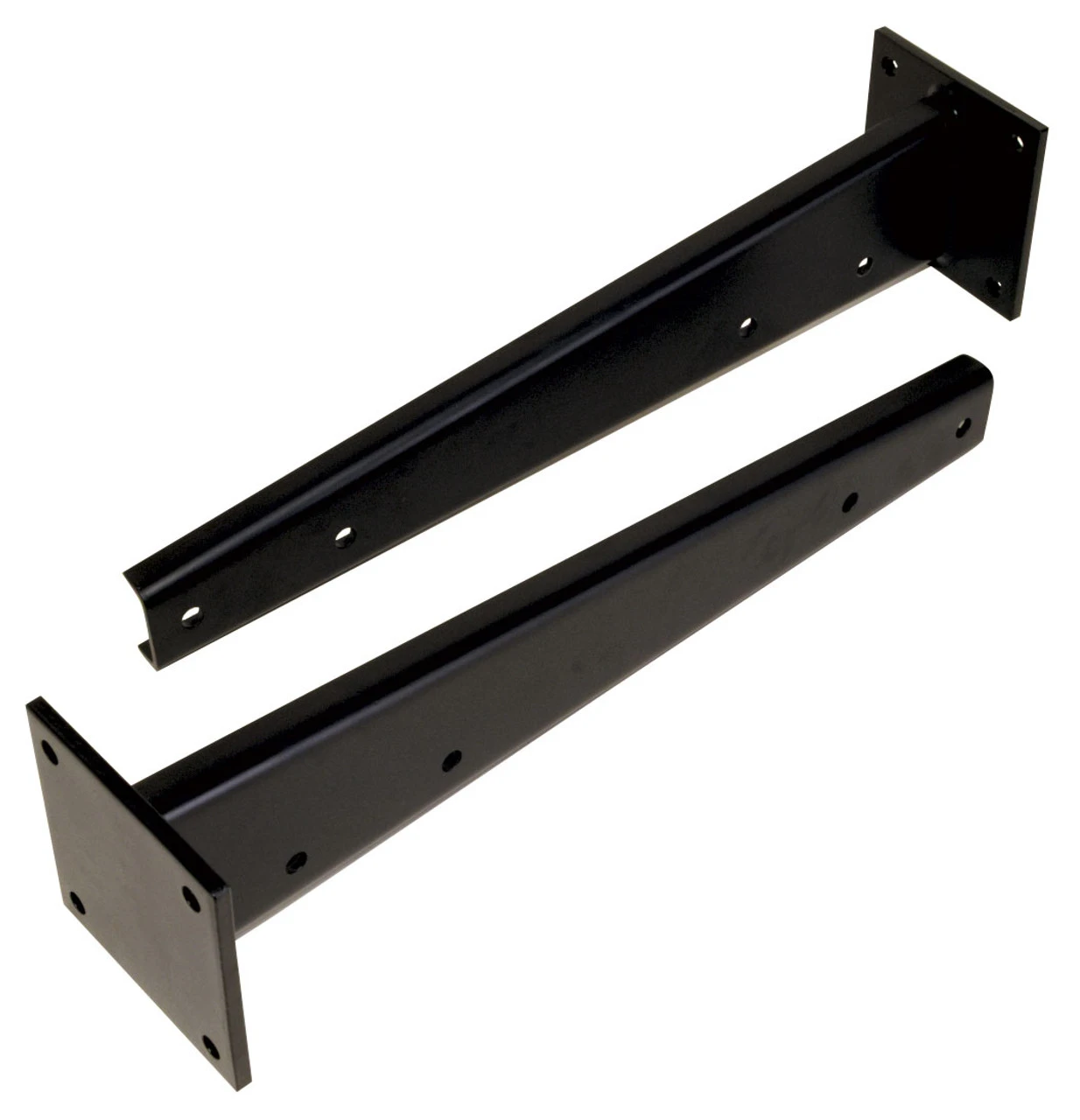

Phoenix USA 27" Side Mount Toolbox Bracket (TBP003)
The Phoenix USA 27" Side Mount Toolbox Bracket (TBP003) offers a secure and efficient solution for mounting your underbody toolbox to your truck or trailer. This pair of heavy-duty steel brackets is specifically designed to provide a stable and reliable mounting solution, ensuring your valuable tools are safely stowed and easily accessible. Featuring robust construction and a protective black powder coat finish, these brackets are built to withstand the rigors of daily use and exposure to the elements.
KEY FEATURES AND BENEFITS:
Robust Construction: Engineered for strength and durability, these brackets provide a stable platform for various toolbox sizes.
Ample Support: The 27-inch long mounting arms offer significant support, while the 6-inch by 6-inch frame mounting plates ensure a secure attachment to your vehicle's chassis.
Exceptional Load-Bearing Capacity: Constructed from high-quality steel, these brackets keep your toolbox firmly in place, even under heavy loads.
Weather-Resistant Finish: The black powder-coated finish resists rust, corrosion, and chipping, ensuring long-lasting performance and a professional appearance.
Complete Mounting Solution: Sold as a pair, these brackets provide everything you need for a single toolbox installation.
Product Name: Phoenix USA 27" Side Mount Toolbox Bracket
Part Number: TBP003
Mounting Type: Side Mount
Arm Length: 27 inches
Frame Plate Dimensions: 6 inches x 6 inches
Finish: Black Powder Coated
Included in Set: Two (2) Brackets (Left and Right)
Compatibility: Designed for use with most underbody toolboxes, particularly Phoenix USA steel truck tool boxes.
Mounting Holes: Pre-drilled for bolting or welding installation.
Preparation: Identify the desired mounting location on your truck or trailer frame, ensuring the area is clean and free of obstructions.
Bracket Placement: Position one bracket against the frame at the chosen location, with the 6"x6" mounting plate sitting flush against the frame.
Marking Holes (for Bolting): Use the pre-drilled holes in the mounting plate as a guide to mark corresponding locations on the frame.
Drilling Holes (for Bolting): Drill pilot holes at the marked locations, ensuring the drill bit size is appropriate for your chosen mounting bolts (not included).
Bracket Attachment (Bolting): Align the pre-drilled holes in the bracket's mounting plate with the drilled holes on the frame. Securely fasten the bracket using appropriate bolts, washers, and nuts, ensuring they are tightened properly.
Welding (Alternative Method): Alternatively, the brackets can be welded directly to the truck or trailer frame by a qualified welder, ensuring proper welding techniques are used.
Positioning the Second Bracket: Position the second bracket on the opposite side of the frame, ensuring it is level and aligned with the first bracket. Repeat steps 3-6 for the second bracket.
Toolbox Placement: Carefully position your toolbox onto the mounted brackets, ensuring the side support bars cradle the toolbox.
Securing the Toolbox: Align the toolbox's mounting provisions with the brackets and use appropriate hardware (not included) to secure the toolbox. Ensure it is firmly attached.
Final Check: Double-check all connections to ensure everything is secure before use.
BENEFITS OF USING THE PHOENIX USA 27" SIDE MOUNT TOOLBOX BRACKET (TBP003):
Stable and Secure Platform: Provides a reliable mounting solution that prevents movement and potential damage during transit.
Heavy-Duty Reliability: The steel construction ensures long-lasting performance and the ability to support substantial weight.
Universal Compatibility: Designed to work with a wide range of underbody toolboxes, making them a versatile mounting solution.
Simplified Installation: Pre-drilled mounting holes save time and effort during installation.
Protective Exterior Coating: A black powder-coated layer resists rust, corrosion, scratches, and weather damage.
Optimized Support Length: The 27-inch arm accommodates common underbody toolbox dimensions effectively.
Broad Frame Contact: The 6" x 6" mounting plate distributes the load evenly across the frame, enhancing stability.
Integrated Side Support: Features a side bar component that cradles the mounted toolbox, minimizing movement.
Simplified Attachment: Pre-existing holes in the mounting plates allow for straightforward bolting to the vehicle frame.
Adaptable Installation: Offers flexibility for bolting or welding the brackets to the vehicle frame.
Sold as a Coordinated Pair: Provided as a matching set, ensuring balanced support for your toolbox installation.
Product identification
- Brand: Phoenix USA
- Model / MPN: TBP003
