Phoenix USA 17"-19.5" DOT Simulator Kit Air Max (AML2)
The Phoenix USA 17"-19.5" DOT Simulator Kit Air Max (AML2) is specifically engineered to enhance the practicality of maintaining optimal tire pressure in dual wheel configurations ranging from 17 to 19.5 inches. This comprehensive kit is designed for seamless integration with Department of Transportation (DOT) compliant wheel simulator kits that feature 25mm mounting holes. By providing extended valve stem access for both inner and outer rear tires, the Air Max system eliminates the inconvenience of removing wheel simulators or navigating confined spaces during inflation and pressure checks. The inclusion of braided stainless steel valve stem extensions ensures a reliable and long-lasting solution, resistant to kinking and environmental factors. Paired with heavy-duty mounting brackets, the AML2 kit offers a secure and stable installation, making tire maintenance a straightforward process for owners and operators of compatible vehicles.
KEY FEATURES AND BENEFITS:
Improved Accessibility: Significantly simplifies the process of checking and inflating inner and outer rear tires on dual wheel vehicles without the need to remove wheel simulators.
Braided Stainless Steel Extensions: Offers enhanced durability and prevents kinking, ensuring consistent airflow and reliable performance over time.
Secure Mounting: Includes robust mounting brackets designed for a stable and vibration-free installation of the valve stem extensions.
Compatibility: Specifically designed for use with Phoenix USA DOT wheel simulator kits featuring 25mm mounting holes, including models NF19, NF20, NF22, NF23, NF25, NG961, NG17, NG18, and ND1912.
Ease of Installation: Generally reported as a relatively simple installation process, often not requiring specialized tools or extensive modifications.
Product Name: Phoenix USA 17"-19.5" DOT Simulator Kit Air Max
Model Number: AML2
Compatibility: Designed for 17" to 19.5" dual wheel vehicles using DOT compliant wheel simulators with 25mm mounting holes.
Valve Stem Extension Material: Braided Stainless Steel

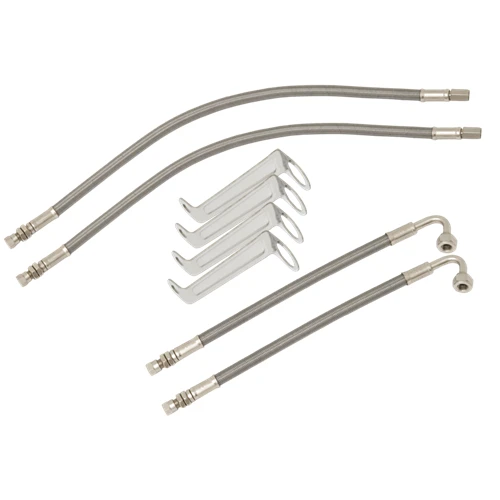

Number of Extensions: Four (2 inner, typically straight; 2 outer, typically with a 117 or 120-degree bend)
Mounting Hardware: Includes four heavy-duty mounting brackets.
Outer Extension Bend: Typically 117 or 120 degrees for easier access.
Mounting Method: Utilizes Phoenix USA Inc.'s DOT Liner hardware.
Preparation: Ensure your vehicle is safely parked and the wheels are chocked. Gather all components of the Phoenix USA Air Max AML2 kit.
Identify Mounting Points: Locate the 25mm mounting holes on your existing Phoenix USA DOT wheel simulators.
Attach Brackets: Securely attach the provided heavy-duty mounting brackets to the designated mounting points on the wheel simulators.
Install Inner Extensions: Connect the straight braided stainless steel valve stem extensions to the valve stems of the inner rear tires. Route the extensions through the designated openings in the wheel simulator and attach them to the mounted brackets.
Install Outer Extensions: Connect the angled (117 or 120-degree bend) braided stainless steel valve stem extensions to the valve stems of the outer rear tires. Route these extensions through the corresponding openings in the wheel simulator and attach them to the remaining mounted brackets. Ensure the angled end is positioned for easy access.
Secure Connections: Double-check all connections to ensure they are tight and leak-free.
Verification: Once installed, attempt to check and inflate the tires using the extended valve stems to confirm proper function and accessibility.
BENEFITS OF USING THE PHOENIX USA 17"-19.5" DOT SIMULATOR KIT AIR MAX (AML2):
Saves Time and Effort: Eliminates the need to remove wheel simulators to perform routine tire maintenance.
Enhances Convenience: Provides direct access to tire valve stems, allowing for fast pressure checks and adjustments.
Promotes Proper Tire Maintenance: Encourages consistent monitoring, which leads to longer tire life and better fuel efficiency.
Protects Wheel Simulators: Prevents repeated removal that can cause wear or damage to the simulators.
Reliable and Durable: Braided stainless steel design offers superior longevity and resistance to environmental stress.
Stable Mounting System: Reduces vibration and potential damage, ensuring a secure and reliable setup.
Facilitates easier inflation of inner and outer dual tires.
Constructed with flexible braided stainless steel for longevity.
Engineered for direct attachment to specific Phoenix USA DOT simulator models.
Includes robust hardware for a stable and secure fitment.
Designed to maintain DOT compliance when used with compatible simulators.
Offers a practical solution for maintaining optimal tire pressure.
Reduces the time and effort required for tire pressure checks.
Helps prevent potential damage to wheel simulators during maintenance.
Contributes to safer operation through easier tire pressure management.
Provides a clean and professional appearance to the wheel assembly.
Product identification
- Brand: Phoenix USA
- Model / MPN: AML2
