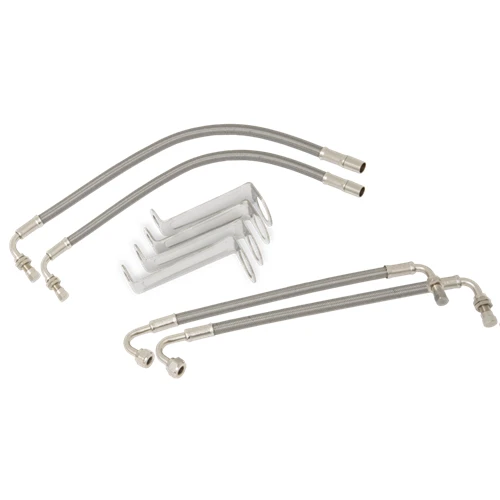

Phoenix USA 16"-19.5" DOT Simulator Kit Air Max (AML3)
The Phoenix USA 16"-19.5" DOT Simulator Kit Air Max (AML3) is a specialized air inflation kit engineered to enhance the ease of maintaining proper tire pressure in dual wheel configurations. Specifically designed for vehicles utilizing Phoenix USA DOT wheel simulator kits with 25mm mounting holes, such as the NF14 and all AML1 & AML2 applications, this kit provides a practical and reliable solution to the common challenge of accessing inner and outer rear tire valve stems. By extending these valve stems to a more convenient location, the Air Max system eliminates the difficulties often encountered when inflating or checking tire pressure, particularly when wheel simulators are installed. This kit comprises high-quality components, including braided stainless steel hoses and robust steel mounting brackets, ensuring a secure and long-lasting installation.
KEY FEATURES AND BENEFITS:
Enhanced Accessibility: Simplifies the process of inflating and checking the air pressure of both inner and outer rear tires on dual wheel setups.
Simulator Compatibility: Specifically designed for seamless integration with Phoenix USA DOT wheel simulator kits that feature 25mm mounting holes, including models NF14, AML1, and AML2.
Braided Stainless Steel Hoses: Features four braided stainless steel hoses (two for inner and two for outer wheels), offering excellent resistance to kinking and ensuring a reliable air path.
Secure Mounting: Includes four heavy-duty steel mounting brackets to firmly attach the valve stem extensions to the vehicle, providing stability and preventing movement.
Improved Maintenance: Makes routine tire maintenance more convenient, potentially leading to better tire longevity and safety through consistent pressure monitoring.
Direct Replacement/Addition: Acts as a direct addition to compatible Phoenix USA wheel simulator setups, requiring no major modifications.
Compatibility: Designed for 16-inch to 19.5-inch wheel sizes with dual wheel configurations.
Simulator Mount Requirement: Compatible with Phoenix USA DOT wheel simulators featuring 25mm mounting holes.
Hose Material: Braided Stainless Steel.
Number of Hoses: 4 (2 Inner, 2 Outer).
Bracket Material: Steel.
Number of Brackets: 4.
Intended Use: Facilitating air inflation and pressure checking of dual rear tires with wheel simulators.
Compatible Simulator Series: NF14, AML1, AML2.
Preparation: Ensure the vehicle is safely parked with the parking brake engaged. Gather necessary tools, including wrenches suitable for removing wheel simulator caps (if applicable) and for tightening mounting hardware.
Access Valve Stems: Remove the outer wheel simulator caps (if installed) to access the original inner and outer valve stems.
Install Inner Hoses: Attach one of the longer straight braided stainless steel hoses to the valve stem of the inner rear tire. Ensure a snug and secure connection to prevent leaks.
Mount Inner Bracket: Position one of the steel mounting brackets in a suitable location on the vehicle's axle or wheel assembly near the inner wheel. Securely attach the bracket using the provided hardware.
Connect Inner Hose to Bracket: Route the other end of the inner hose to the mounted bracket and secure it, ensuring the valve extension is easily accessible.
Install Outer Hoses: Attach one of the shorter braided stainless steel hoses (with a 120-degree bend) to the valve stem of the outer rear tire. Ensure a tight connection.
Mount Outer Bracket: Position another steel mounting bracket near the outer wheel in a convenient location. Securely attach it.
Connect Outer Hose to Bracket: Route the free end of the outer hose to the mounted bracket and secure it, ensuring easy access to the valve extension.
Repeat for Other Side: Follow steps 3 through 8 for the dual wheels on the opposite side of the vehicle.
Final Check: Once all hoses and brackets are installed, carefully inspect all connections for tightness. Inflate the tires to the recommended pressure and check for any air leaks around the connections. Reinstall wheel simulator caps if they were removed.
BENEFITS OF USING THE PHOENIX USA 16"-19.5" DOT SIMULATOR KIT AIR MAX (AML3):
Improved accessibility simplifies tire pressure checks and inflation in dual wheel configurations.
Supports consistent tire maintenance, contributing to improved fuel efficiency and longer tire life.
Braided stainless steel construction ensures resistance to kinking, leaks, and wear over time.
Heavy-duty brackets provide secure mounting, minimizing movement and potential damage.
Ideal solution for vehicles using Phoenix USA DOT simulators with 25mm mounting holes.
Reduces risk of damage during simulator removal by eliminating the need to access valves directly through or behind the wheels.
Professional installation look and enhanced maintenance convenience.
Dedicated Compatibility: Specifically engineered for seamless use with Phoenix USA DOT simulators featuring a 25mm mounting aperture.
Straight Hose Design (Inner): Longer, straight hoses facilitate optimal routing for inner wheel valve stems.
Angled Hose Design (Outer): Shorter hoses with a 120-degree bend are designed for convenient access to outer wheel valve stems.
Heavy-Duty Steel Brackets: Offer a stable and secure mounting point for the valve stem extensions.
Four-Wheel Coverage: The kit includes components for both sides of a dual-wheel axle.
Facilitates DOT Compliance Checks: Easier access aids in ensuring tires meet required pressure standards for DOT inspections.
Product identification
- Brand: Phoenix USA
- Model / MPN: AML3
