Air compressor kit details

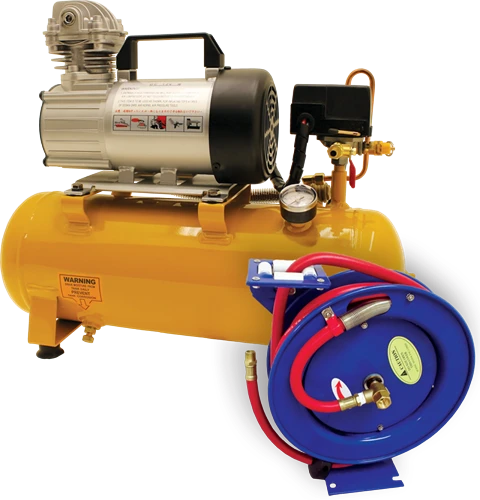

Phoenix USA 12V Air Compressor Kit (AC12V3PK)
The Phoenix USA 12V Air Compressor Kit (AC12V3PK) is a comprehensive and mobile air supply system engineered for a variety of inflation tasks, particularly during roadside assistance or in scenarios where a 12V DC power source is readily available. This kit combines a capable compressor unit with essential accessories to provide a convenient and effective solution for inflating tires and operating certain air-powered tools.
KEY FEATURES AND BENEFITS:
Portable Air Source: The kit includes the AC12V3 compressor, delivering a maximum pressure of 120 PSI and a free air flow rate of approximately 1.7 CFM at 90 PSI for efficient inflation.
Integrated Tank: The 3-gallon hot dog style tank offers a small reserve of compressed air for consistent operation.
Hose Reel Convenience: The HR3825 hose reel with a 25 ft air hose ensures easy access and organized storage, preventing tangles and extending the hose's lifespan.
Electrical Safety: A 50 amp circuit breaker is included to protect the vehicle's electrical system from potential overloads.
Low Maintenance: The oil-free design minimizes maintenance requirements, enhancing long-term usability.
Compact Dimensions: The relatively compact size makes it suitable for mounting in many underbody toolboxes, enhancing portability.
Model Number: AC12V3PK
Compressor Unit: Phoenix AC12V3
Horsepower: 0.75 HP
Maximum Pressure: 120 PSI
Tank Capacity: 3 Gallons (Hot Dog Style)
Free Air Flow Rate @ 90 PSI: Approximately 1.7 CFM
Motor RPM: 1750 RPM
Motor Type: Universal
Lubrication: Oil-Free
Outlet: 1/4 inch (F)NPT
Cylinder Material: Steel
Hose Length: 25 ft
Circuit Protection: 50 amp Breaker
Approximate Compressor Weight: 38 lbs
Approximate Kit Dimensions: 23" (L) x 20" (W) x 18" (H)
Approximate Kit Weight: 68.58 lbs
Noise Level: Around 68 dB
Mount the Compressor Unit: Securely mount the AC12V3 compressor unit in a suitable location, ensuring adequate ventilation and access to a 12V DC power source.
Connect to Power: Connect the compressor's power cables to a reliable 12V DC power source in your vehicle or equipment, ensuring the included 50 amp circuit breaker is installed in the positive power line.
Unreel the Air Hose: Extend the desired length of the air hose from the HR3825 hose reel.
Attach Inflation Accessory: Connect the appropriate inflation accessory (e.g., tire chuck, air tool) to the 1/4 inch NPT outlet on the compressor.
Turn on the Compressor: Activate the compressor using its power switch and allow the tank to pressurize to the desired level (up to 120 PSI).
Inflate or Operate Tool: Use the attached accessory to inflate tires or operate compatible air tools, monitoring the pressure gauge as needed.
Turn off the Compressor: Once the task is complete, turn off the compressor.
Release Air (if necessary): Use the pressure relief valve to bleed excess air from the tank before disconnecting accessories or storing the unit.
Reel the Air Hose: Neatly retract the air hose back onto the HR3825 hose reel for storage.
BENEFITS OF USING THE PHOENIX USA 12V AIR COMPRESSOR KIT (AC12V3PK):
Convenient Solution: Provides a self-contained solution for various inflation needs, especially in remote locations.
Organized Operation: The included hose reel ensures tidy and tangle-free use.
Air Reserve: The 3-gallon tank offers a small air reserve, beneficial for consistent inflation and short bursts of air tool use.
Electrical Protection: The 50 amp circuit breaker safeguards your vehicle's electrical system from overloads.
Low Maintenance: The oil-free compressor reduces the need for regular upkeep.
Integrated Hose Reel: Offers tidy storage and easy deployment of the 25-foot air hose.
Direct 12V Operation: Designed for straightforward connection to vehicle or equipment 12V DC power.
Built-in Circuit Protection: The included 50 amp breaker prevents electrical overloads.
Compact and Transportable: Engineered to fit in many underbody toolboxes for mobile use.
Quick Inflation Capability: Can inflate from 0 to 120 PSI in approximately 90 seconds (compressor unit alone).
Steel Cylinder Construction: Enhances the durability and lifespan of the compressor unit.
Product identification
- Brand: Phoenix USA
- Model / MPN: AC12V3PK
