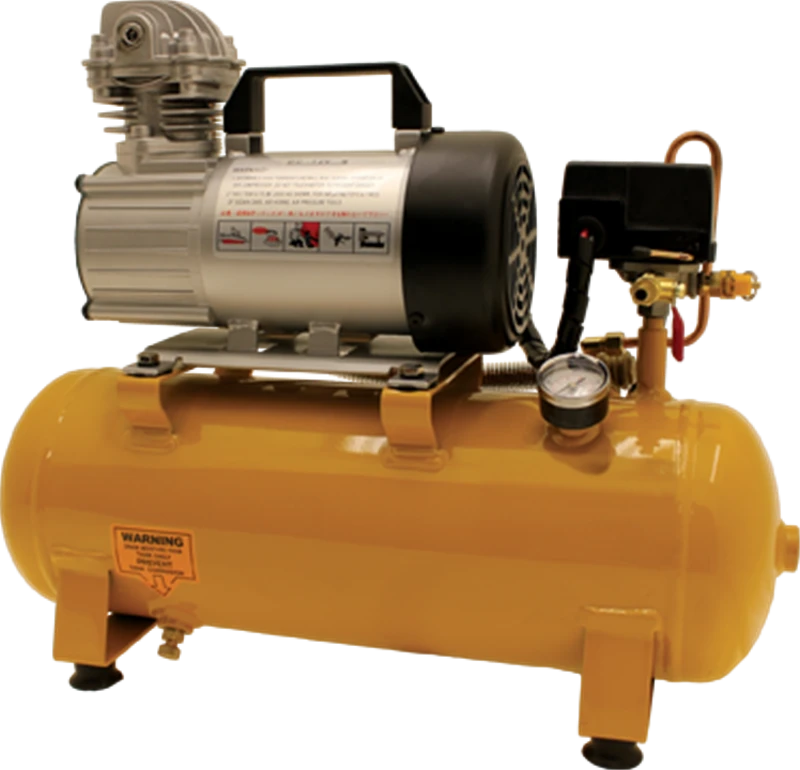

Phoenix USA 12V 3-Gallon .75HP Air Compressor (AC12V3)
The Phoenix USA 12V 3-Gallon .75HP Air Compressor (AC12V3) is a robust and portable 12V DC air compressor engineered to provide reliable compressed air for a variety of applications. Featuring a 3-gallon horizontal 'hot dog' style tank and a capable 0.75 HP universal motor, this compressor delivers a maximum pressure of 120 PSI and a free air flow rate of 1.7 CFM at 90 PSI. Its compact design is specifically tailored to fit within standard 18" x 18" toolboxes, making it an ideal solution for mobile service technicians, roadside assistance, and anyone requiring on-demand air power in a transportable package. The oil-free pump design minimizes maintenance, ensuring long-lasting performance. Equipped with a built-in pressure gauge and a 1/4" (F)NPT outlet, the AC12V3 offers convenience and versatility for inflating tires, powering select air tools, and other pneumatic tasks.
KEY FEATURES AND BENEFITS:
Portable and Compact: Designed to fit inside 18" x 18" toolboxes, offering easy storage and transportation for mobile applications.
Reliable Power: The 0.75 HP universal motor delivers sufficient power to reach a maximum pressure of 120 PSI.
Decent Airflow: Provides a free air flow rate of 1.7 CFM at 90 PSI, suitable for various inflation and light-duty air tool tasks.
Oil-Free Operation: Eliminates the need for oil lubrication, reducing maintenance and the risk of oil contamination.
Built-in Monitoring: Features an integrated pressure gauge for easy monitoring of the air pressure within the tank.
Convenient Outlet: Equipped with a standard 1/4" (F)NPT outlet for easy connection to air hoses and accessories.
Durable Construction: Utilizes a steel cylinder for enhanced durability and longevity.
Power Source: 12V DC
Motor: 0.75 HP Universal, 1750 RPM
Maximum Pressure: 120 PSI
Tank Capacity: 3 Gallons (Horizontal 'Hot Dog')
Free Air Flow Rate: 1.7 CFM @ 90 PSI
Lubrication: Oil-Free
Outlet Type: 1/4" (F)NPT
Cylinder Material: Steel
Approximate Weight: 38-42 lbs
Approximate Dimensions: 21-22" (L) x 8-9" (W) x 18-19" (H)
Approximate Noise Level: 60 dBA
Current Rating: 45 A
Duty Cycle: 100% @ 100 PSI (Note: Reaching 120 PSI consistently may increase strain)
Connect to Power: Ensure your vehicle or 12V DC power source can handle the 45A current draw. Securely connect the compressor's power leads to the positive and negative terminals.
Attach Air Hose: Connect an appropriate air hose to the 1/4" (F)NPT outlet of the compressor, ensuring a tight connection to prevent air leaks.
Set Desired Pressure: Set the desired output pressure if using an external regulator or for specific applications.
Turn On the Compressor: Locate the power switch on the compressor and turn it to the "ON" position. The motor will start, and the tank will begin to fill with air.
Monitor Pressure: Observe the built-in pressure gauge to track the air pressure inside the tank. The compressor will stop once it reaches the maximum pressure (120 PSI).
Use Compressed Air: Utilize the connected air hose and accessories (e.g., tire chuck, air tool) for your intended application.
Turn Off the Compressor: Once finished, turn the power switch to the "OFF" position.
Release Excess Air (Optional): Follow the manufacturer's instructions to release excess air from the tank for storage.
Disconnect and Store: Disconnect the air hose and power leads, and store the compressor in a safe and dry place, ideally within an 18" x 18" toolbox.
BENEFITS OF USING THE PHOENIX USA 12V 3-GALLON .75HP AIR COMPRESSOR (AC12V3):
Enhanced Mobility: Provides a convenient source of compressed air wherever your 12V power source is located.
Space-Saving Design: The compact form factor optimizes storage space in vehicles or workshops.
Reduced Maintenance: The oil-free pump design minimizes the need for regular lubrication and upkeep.
On-Demand Air Power: Offers the capability to inflate tires, power small air tools, and perform pneumatic tasks quickly and efficiently.
Increased Productivity: Readily available compressed air on job sites or during roadside emergencies can save time and effort.
Reliable Performance: Built with a steel cylinder and a capable motor, offering consistent performance for its intended applications.
Toolbox-Optimized Form: Specifically engineered dimensions for seamless integration into standard 18" x 18" tool storage units.
Direct 12V DC Operation: Operates directly from a vehicle's electrical system, eliminating the need for inverters for mobile use.
Horizontal Tank Configuration: The 'hot dog' style tank offers a stable and space-efficient design.
Integrated Pressure Display: Clear and easy-to-read gauge for real-time monitoring of air pressure levels.
Quick Connect Outlet: Standard 1/4" NPT female fitting allows for rapid attachment and detachment of air lines.
Steel Cylinder Construction: Provides robustness and contributes to the compressor's overall lifespan.
Efficient Universal Motor: Delivers a balance of power and speed for effective air compression within its voltage class.
Product identification
- Brand: Phoenix USA
- Model / MPN: AC12V3
