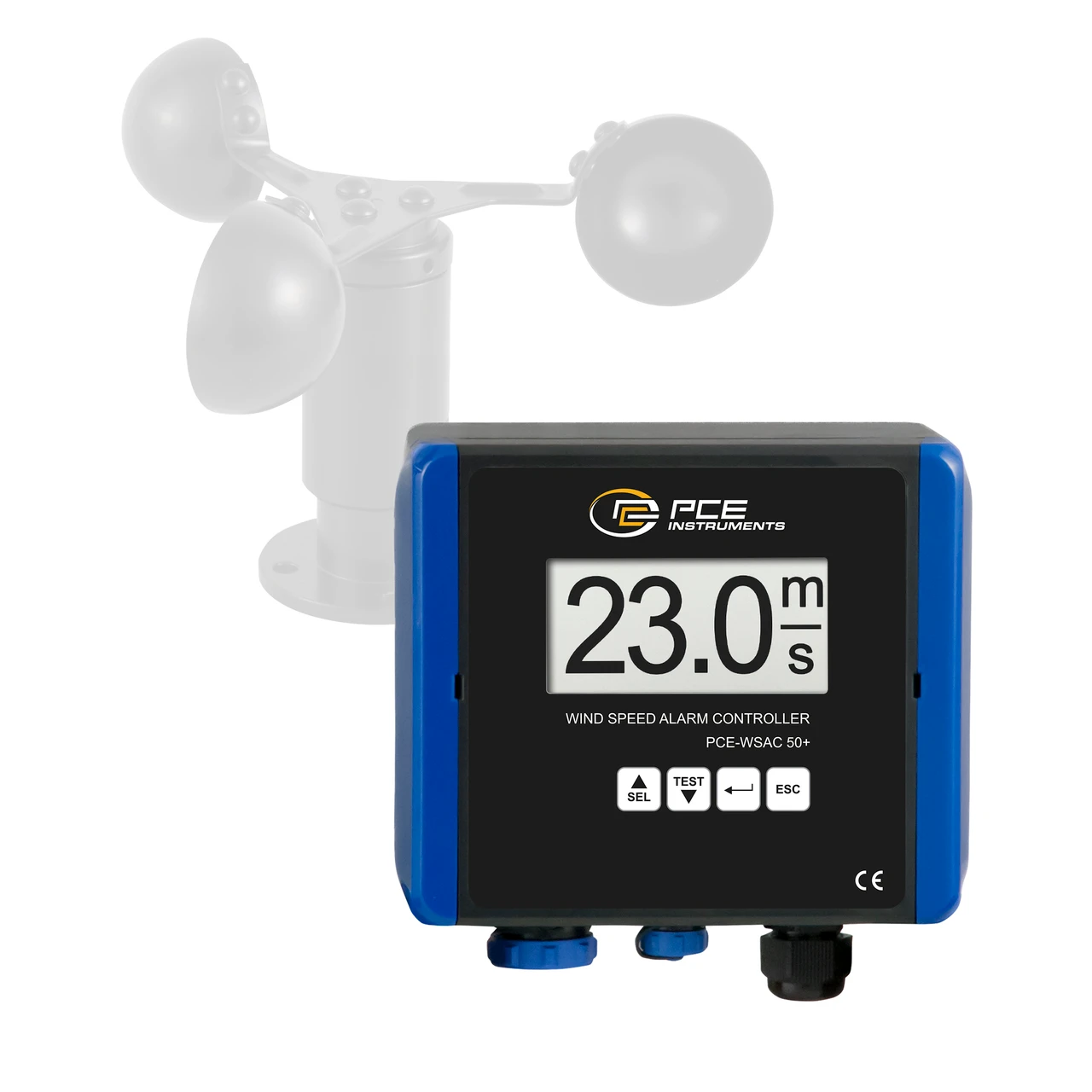

PCE Instruments Wind Speed Alarm Controller Wireless System (PCE-WSAC 50+)
PCE Instruments Wind Speed Alarm Controller Wireless Systemis a reliable wind monitoring system designed for industrial applications such as construction cranes, wind turbines, and other environments requiring precise wind measurement and alerts.
This system ensures real-time wind speed monitoring with an integrated alarm relay for pre-alarm and main alarm functions, allowing operators to take preventive measures in case of strong gusts. It features wireless data transmission and an analog output for seamless integration with external monitoring systems.
Specifications and Dimensions
Measuring Range: 4 … 180 km/h (50 m/s)
Minimum Start Speed: 8 km/h
Accuracy: ±1 km/h (4 … 15 km/h), ±3% (16 … 180 km/h)
Radio Frequency: IEEE 802.15.4 ISM 2.4 GHz
Power Supply: Battery Mono Cell D 1.5V DC
Analog Output: 4 … 20-mA
Alarm Relay: Max. 250V AC, 8A
Display: 128 x 64 pixel backlit LCD
Protection Class: IP65
Operating Temperature: -20 … 70°C (-4 … 158°F)
Transmission Range: Up to 750 m (2500 ft) in open fields, 60 m (200 ft) indoors
Housing Material: Robust plastic casing with stainless steel ball bearings
Key Features and Benefits
Real-time wind speed monitoring for industrial safety applications
Wireless data transmission for remote monitoring
4 … 20-mA analog output for seamless system integration
Pre-alarm and main alarm functions to provide early warnings
Durable, weatherproof design with IP65 protection rating
Clear LCD display showing wind speed in km/h, mph, and m/s
Designed for use in construction, energy, and safety applications
Product identification
- Brand: PCE INSTRUMENTS
