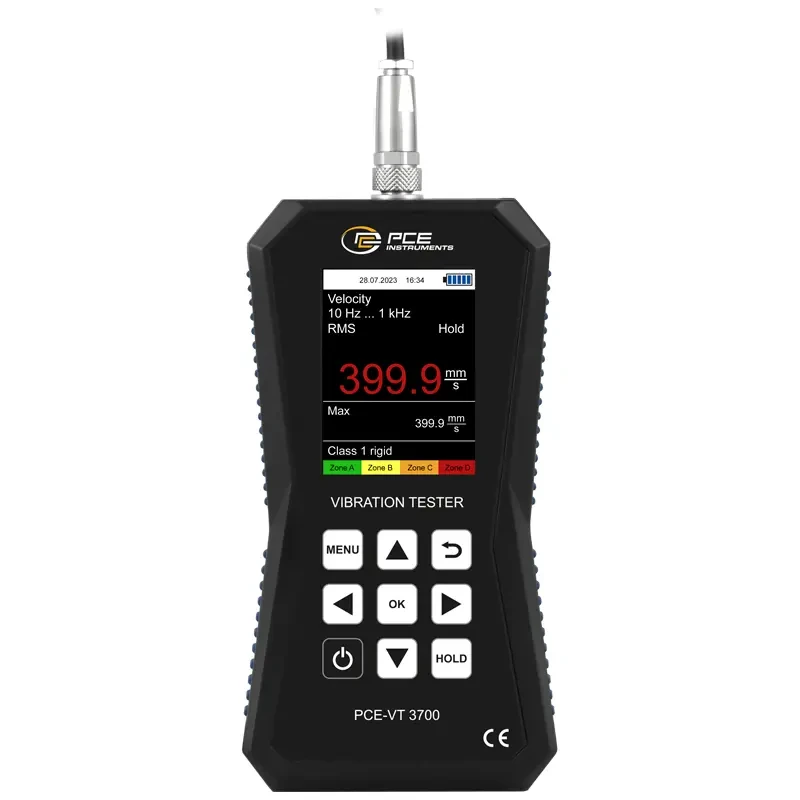

PCE Instruments Vibration Meter with ISO 10816-3 Evaluation and Peak Measurement (PCE-VT 3700, PCE-VT 3700S)
PCE Instruments Vibration Meter is a handheld device designed for machine maintenance and condition monitoring. This meter provides vibration acceleration, velocity, and displacement measurements for fast detection of potential machine imbalances.
The vibration meter features an automatic ISO 10816-3 evaluation, which simplifies vibration analysis by providing an instant pass/fail assessment. With a bright color display, intuitive controls, and switchable metric and imperial units, this device is perfect for industrial maintenance applications.
Specifications and Dimensions
Acceleration Measurement:
Range: 0.0 – 399.9 m/s² / 0.0 – 15744 in/s²
Resolution: 0.1 m/s² / 3.94 in/s²
Accuracy at 160 Hz: ±2%
Frequency Range: 1 kHz – 10 kHz
Velocity Measurement:
Range: 0.00 – 399.99 mm/s / 0.00 – 15.74 in/s
Resolution: 0.01 mm/s / 0.0039 in/s
Frequency Range: 10 Hz – 1 kHz
Displacement Measurement:
Range: 0.000 – 3.999 mm / 0.000 – 0.154 in
Resolution: 1 µm / 39.4 µin
Frequency Range: 10 Hz – 200 Hz
General Features:
Measurement Parameters: RMS, Peak, Peak-Peak, Crest Factor
Units: Switchable between metric and imperial
Display: 2.8-inch LCD screen
Available Menu Languages: English, German, French, Spanish, Italian, Dutch, Portuguese, Turkish, Polish, Russian, Chinese, Japanese
Power Supply: 3 x 1.5V AA batteries
Operating Conditions: -20 … +65 °C / -4 … 149 °F; 10 … 95 % RH
Dimensions: 165 x 85 x 32 mm / 6.4 x 3.3 x 1.2"
Weight: 239 g / 8.4 oz
Vibration Sensor:
Resonance Frequency: 24 kHz
Transverse Sensitivity: ≤ 5%
Destruction Limit: 5000 g (peak)
Operating and Storage Temperature: -55 … +150 °C / -67 … 302 °F
Housing Material: Stainless Steel
Mounting Thread: ¼ – 28“
Dimensions: PCE-VT 3700: Ø 17 x 46 mm / 0.67 x 1.8", PCE-VT 3700S: Ø 29 x 81 mm / 1.14 x 3.18"
Weight (without cable): PCE-VT 3700: 52 g / 1.8 oz, PCE-VT 3700S: 119 g / 4.2 oz
Protection Class: IP52
Key Features and Benefits
Measures vibration acceleration, velocity, and displacement for machine diagnostics
Automatic ISO 10816-3 evaluation provides an instant pass/fail assessment
Large color LCD screen with multilingual support for easy operation
Peak-hold function captures maximum vibration levels for analysis
Switchable measurement units between metric and imperial for flexibility
Compact, handheld design ideal for on-the-go maintenance tasks
Magnet adapter and coiled sensor cable ensure stable and reliable readings
1 x PCE-VT 3700 Vibration Meter
1 x Vibration Sensor with Spiral Cable
1 x Magnet Adapter
3 x 1.5V AA Batteries
