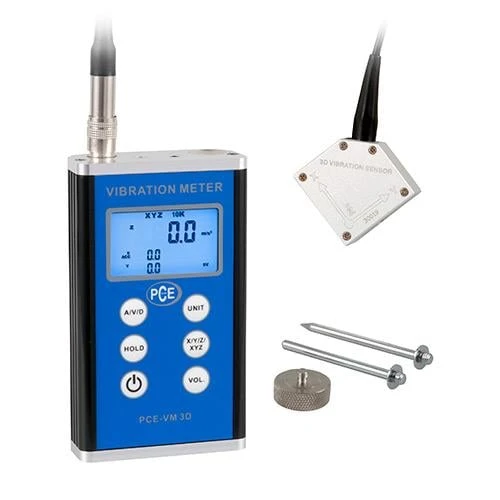

PCE Instruments Vibration Meter / Vibration Tester with 3D Measurement (PCE-VM 3D)
PCE Instruments Vibration Meter / Vibration Tester (PCE-VM 3D) is a precision tool designed for quick and accurate vibration analysis of machines and components. With 3D measurement capabilities, it detects acceleration, vibration path, and speed in the x, y, and z axes. The device helps identify defects, imbalances, and potential failures before they cause major downtime.
This vibration tester features a large backlit LCD display, an RS-232C data interface, and multiple display options for enhanced usability. It ensures extended machine service life and compliance with vibration monitoring standards.
Specifications and Dimensions
Vibration Acceleration: 0.1 m/s² … 400.0 m/s² (Peak)
Vibration Velocity: 0.01 … 400.0 mm/s
Vibration Amplitude: 0.001 mm … 4.000 mm (Peak-Peak)
Frequency Range: 10 Hz … 10 kHz
Resolution: 0.25 Hz
Data Interface: RS-232C
Battery Type: 2 x AA 1.5 V batteries
Operating Temperature: 0 … +50 °C / 32 … 122° F
Device Dimensions: 130 x 70 x 30 mm / 5.1 x 2.8 x 1.2 in
Sensor Dimensions: 40 x 40 x 22 mm / 1.5 x 1.5 x 0.8 in
Weight: 305 g / 0.67 lbs (without batteries)
Key Features and Benefits
3D vibration measurement for precise machine monitoring
Quick detection of defects, imbalances, and excessive vibration
Large backlit LCD display for easy reading in various conditions
RS-232C data interface for convenient data transfer
Alarm function alerts users to critical vibration levels
Lightweight and portable design for field applications
Multiple sensor options for versatile use cases
Includes magnetic holder and various measuring tips
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-VM 3D
PCE INSTRUMENTS vibration tester: see the listed specifications for this model.
