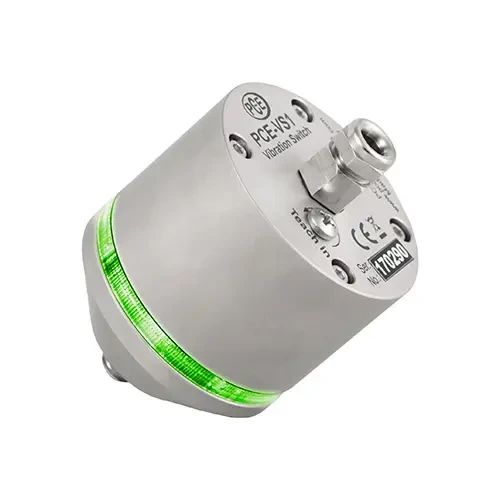

PCE Instruments Vibration Analyzer Sensor Switch with Programmable Filters (PCE-VS10, PCE-VS11 , PCE-VS12)
PCE Instruments Vibration Analyzer Sensor Switch is a high-performance device for monitoring vibration acceleration and velocity in industrial environments. Designed for machine condition monitoring and quality control, this sensor switch provides accurate measurements of RMS, peak, and frequency domain (FFT) values with an integrated piezoelectric accelerometer.
With programmable high-pass and low-pass filters, a relay output for emergency shut-off, and an IP67-rated enclosure, this vibration analyzer ensures reliable performance in demanding conditions.
Specifications and Dimensions
Measuring Range: 0.1 … 1000 m/s² acceleration
Monitoring Values: Peak and RMS of vibration acceleration or velocity
High Pass Filter: 0.1 / 2 / 5 / 10 / 20 / 50 / 100 / 200 / 500 / 1000 Hz acceleration
Low Pass Filter: 0.1 / 0.2 / 0.5 / 1 / 2 / 5 / 10 kHz acceleration
Relay Output: Max. 60 V / 0.5 A (AC/DC), open/close programmable
External USB port: PCE-VE 400N4: No, PCE-VE 800N4: No, PCE-VE 900N4: Yes
Power Supply: 5 … 30 V DC or 5 V DC USB
Ingress Protection: IP67-rated enclosure
Operating Temperature: -40 … +80 °C / -40 … +176 °F
Approx. Dimensions: PCE-VE 400N4: 50 mm / 1.97" Ø, 52 mm / 2.05" height, PCE-VE 800N4: 50 mm / 1.97" Ø, 52 mm / 2.05" height, PCE-VE 900N4: 50 mm / 1.97" Ø, 36 mm / 1.42" height
Mounting: M8 thread pin, 8 mm length
Weight: PCE-VE 400N4: 160 g / 0.36 lb, PCE-VE 800N4: 160 g / 0.36 lb, PCE-VE 900N4: 125 g / 0.28 lb
Key Features and Benefits
Programmable high-pass and low-pass filters for customized analysis
Piezoelectric accelerometer ensures precise readings
IP67-rated protection against water and dust for durability
Visual warning system with red and green LED alerts
Emergency shut-off relay for safety and machine protection
Ideal for industrial applications, condition monitoring, and quality control
Product identification
- Brand: PCE INSTRUMENTS
