Stroboscope details

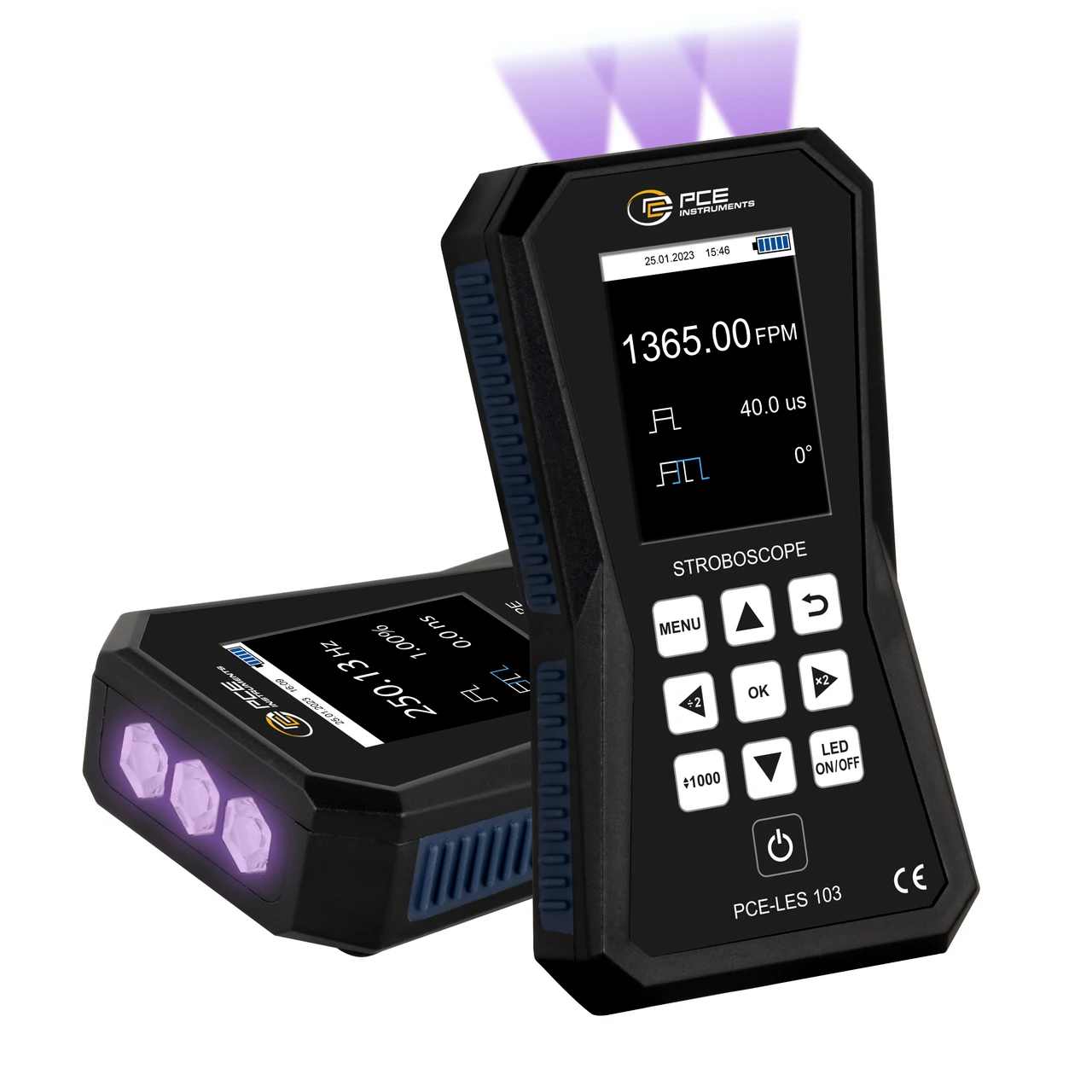

PCE Instruments UV Stroboscope with Adjustable Flash Frequency and Phase Shift (PCE-LES 103UV-365)
PCE Instruments UV Stroboscope (PCE-LES 103UV-365) is a powerful tool designed for high-precision motion analysis in industrial applications. Featuring three UVA high-power LEDs, this stroboscope delivers a light intensity of 202 μW/cm² at 30 cm, making it ideal for detecting rotational speed and inspecting moving components.
The PCE Instruments UV Stroboscope offers precise flash frequency adjustment in FPM and Hz. With phase shift functionality and digital pulse width modulation, it enables accurate visual monitoring of rotating equipment.
Specifications and Dimensions
Flash Frequency: Adjustable in FPM and Hz
Measurement Range: 60 to 300,000 FPM
Phase Shift: -360° to +360°
Pulse Width: 0.01% to 1% of pulse duration
Display Type: 2.8-inch TFT color display
Light Intensity: 202 μW/cm² at 30 cm
Operating Time: Up to 4.5 hours at 100 Hz
Power Supply: 5V DC, 2A rechargeable battery
Device Protection: IP52
Device Weight: 284 g / 0.6 lbs
Device Dimensions: 165 x 90 x 35 mm
Operating Temperature: -20 to 60°C
Key Features and Benefits
High-power UVA LEDs for precise motion analysis
Phase shift capability for enhanced inspection accuracy
Digital pulse width modulation for consistent light intensity
Lightweight and portable design
Rechargeable lithium-ion battery for extended operation
Auto shut-off feature to conserve battery life
Easy-to-use menu with multiple language options
Ideal for industrial maintenance, printing, and textile applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LES 103UV-365
