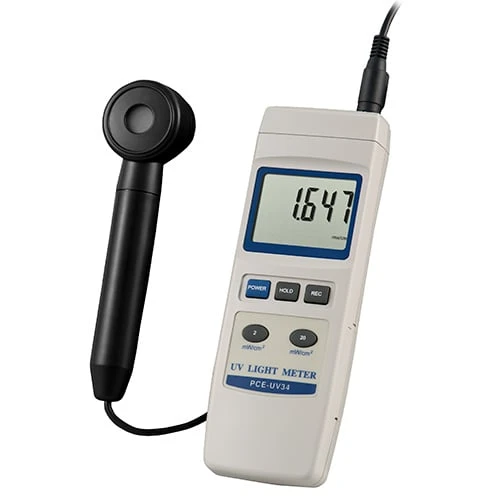

PCE Instruments UV Meter/UV Tester (PCE-UV34)
PCE Instruments UV Meter UV Tester (PCE-UV34) is a precision instrument designed to measure UVA and UVB radiation levels. With an operational wavelength range of 290 to 390 nm, this device provides highly accurate readings for industrial, scientific, and safety applications. The external sensor enhances flexibility, making it ideal for various measurement scenarios.
It is also useful in sterilization processes, photochemical research, virology, and DNA analysis. The device features an easy-to-read LCD screen, auto shut-off function, and a compact design for convenient use in different environments.
Specifications and Dimensions
Measurement Range: 0.000 to 1.999 mW/cm² or 0.000 to 19.9 W/m²
Higher Range: 1.999 to 19.99 mW/cm² or 19.99 to 199.9 W/m²
Resolution: 0.001 mW/cm²
Accuracy: ±4% + 2 positions
Response Time: 0.4 seconds
Wavelength: 290 to 390 nm
Display: 22 mm / 0.9 in LCD screen
Light Sensor: Photodiode with UV correcting filter
Auto Shut-off: After 10 minutes of inactivity
Power Supply: 9V battery
Operating Temperature: 0 to 50°C / 32 to 122°F (max. 80% RH)
Device Dimensions: 68 x 200 x 30 mm / 2.7 x 7.9 x 1.2 in
Sensor Dimensions: 68 x 60 x 27 mm / 2.7 x 2.4 x 1.1 in
Weight: 220 g / < 1 lb (including battery)
Key Features and Benefits
Simultaneous UVA and UVB radiation measurement
External sensor for flexible positioning
Ideal for medical, industrial, and scientific applications
Dual measurement ranges for high accuracy
Data hold function for capturing readings
Large LCD screen for easy readability
Automatic shut-off to conserve battery life
Compact and lightweight design
1 x UV Meter / UV Tester (PCE-UV34)
1 x Combined UV Sensor
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-UV34
