PCE Instruments Ultrasonic Flow Meter with Ethernet and PoE Connectivity
PCE Instruments Ultrasonic Flow Meter is designed for precise flow measurement using ultrasonic transit time technology. This meter is ideal for non-invasive monitoring of water flow in PVC pipes, allowing for installation without disrupting operations. The clamp-on sensor eliminates the need to cut pipes or contact the liquid medium, making it highly efficient for industrial and water management applications.
It supports Ethernet communication and Power over Ethernet (PoE), enabling remote access and cloud storage of measurement data. This allows for seamless monitoring and data analysis without interrupting production processes.
Specifications and Dimensions
Flow Velocity Range: 0.03 to 5 m/s
Resolution: 0.01 m/s
Accuracy: ±2% of Rd (0.3 to 5 m/s)
Volume Flow Measurement Range: 0.04 to 6 m³/h
Resolution: 0.01 m³/h
Display Type: LC color display
Display Size: 1.44 inches
Display Resolution: 128 x 128
Interface: Ethernet, PoE
Measured Medium: Water
Repeatability: 0.2%
Communication: HTTP, MQTT
Menu Languages: English, Chinese
Protection Class: IP54
Power Supply: PoE (Power over Ethernet)
Connector Type: RJ45
Operating Conditions: -10 to 50°C, 0 to 99% RH
Storage Conditions: -10 to 50°C, 0 to 99% RH
Device Dimensions (L x W x D): 65 x 111 x 43 mm
Key Features and Benefits
Non-invasive ultrasonic measurement for PVC pipes
Clamp-on installation eliminates the need to stop production
Rotatable LCD display for clear real-time readings
Supports Power over Ethernet (PoE) for simplified connectivity
Provides real-time monitoring of flow velocity and volume
Remote access to measurement data via Ethernet and cloud storage
Designed for water management, industrial cooling, and fluid systems

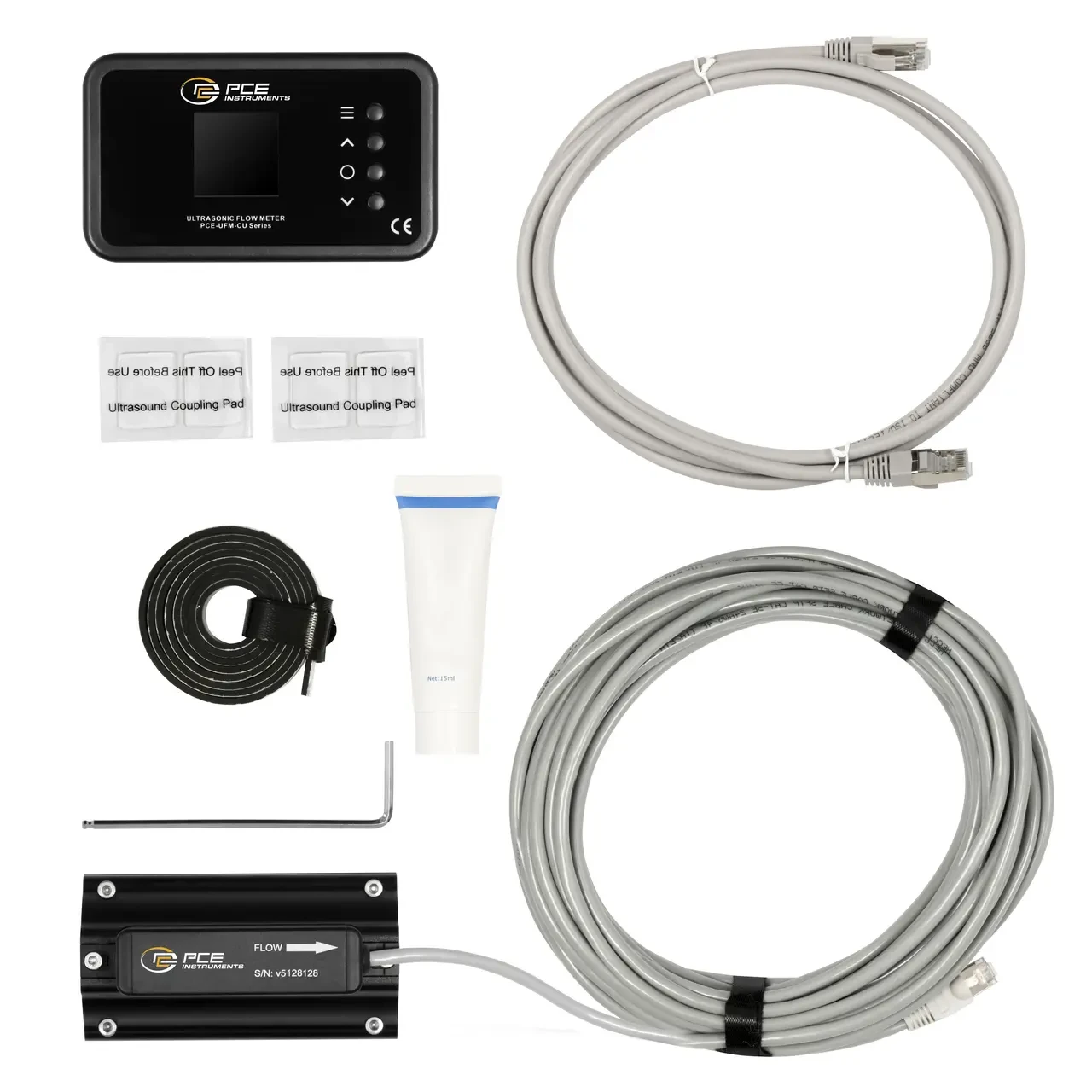

1 x Ultrasonic Flow Meter
1 x Sensor with 9m Ethernet Cable
1 x PoE Network Cable (2m)
1 x Ultrasonic Contact Gel
1 x Silicone Seal (1m)
4 x Coupling Pads
Product identification
- Brand: PCE INSTRUMENTS
