PCE INSTRUMENTS ultrasonic flow meter details

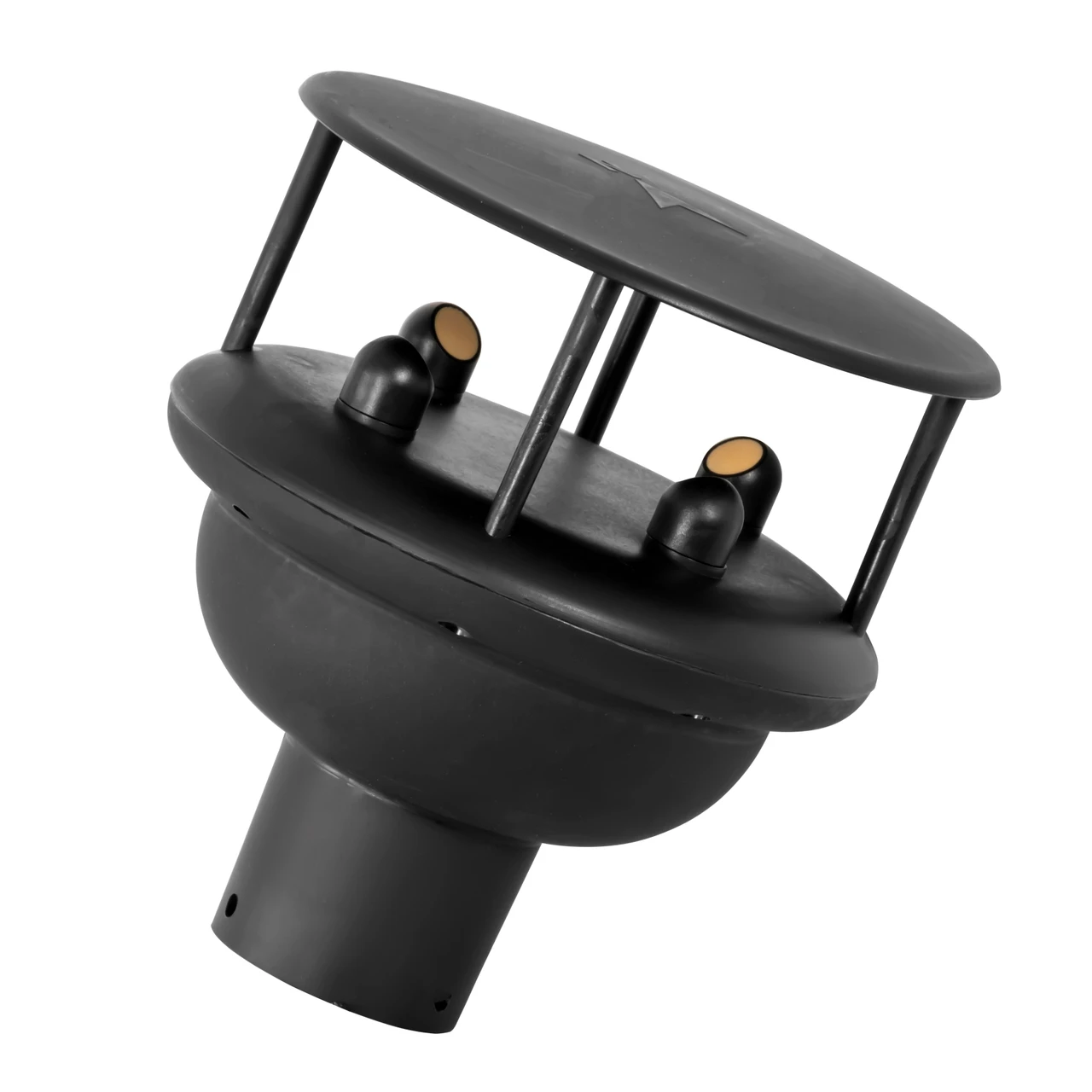

PCE Instruments Ultrasonic Flow Meter (PCE-WS US2)
PCE Instruments Ultrasonic Flow Meter (PCE-WS US2) is a high-precision wind measurement device designed for industrial and environmental applications. Using ultrasonic transducers, this sensor accurately determines wind speed and direction without requiring moving parts, ensuring wear-free operation.
Built with high resistance to electromagnetic interference, this wind sensor provides accurate real-time data even in challenging environments. With an IP65-rated enclosure, it is protected against dust and water ingress, making it suitable for outdoor applications such as solar tracking systems, irrigation control, and wind turbine monitoring.
Specifications and Dimensions
Wind Speed Measurement: 0 … 160 km/h
Resolution: 1 km/h
Accuracy: 0.5 km/h (0–15 km/h), 3% of Rd (15–120 km/h), 5% of Rd (120–160 km/h)
Wind Direction Measurement: 0 … 359°
Interface: RS485 Modbus RTU
Sensor Type: Ultrasound
Housing Material: PA (Polyamide)
Protection Class: IP65 (Dust and water-resistant)
Power Supply: 9 … 30 V DC
Operating Conditions: -30 … 70°C, 0 … 100% RH
Storage Conditions: -35 … 80°C, 0 … 100% RH
Dimensions (H x D): 162 x 143 mm
Key Features and Benefits
Advanced ultrasonic technology for precise wind speed and direction measurement
RS485 Modbus RTU communication for seamless industrial integration
Wear-free operation with no moving parts, ensuring long-term durability
Compact and lightweight design for easy installation
IP65-rated enclosure for outdoor use in harsh environments
High resistance to electromagnetic interference for accurate readings
Ideal for solar tracking, irrigation systems, wind turbines, and weather monitoring
1 x PCE-WS US2 Ultrasonic Flow Meter
1 x 5m cable with 4-pin M12 plug
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-WS US2
