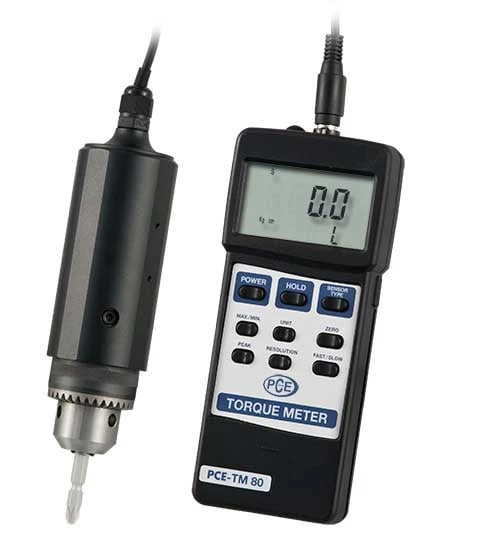

PCE Instruments Torque Meter with External Sensor (PCE-TM 80)
PCE Instruments Torque Meter (PCE-TM 80) is a reliable device designed to measure static and startup torque in screws, components, switches, and transmission shafts. Equipped with an external rotational torque sensor, it ensures precise torque readings in various applications.
This digital torque meter supports three units of measurement (Ncm, kgfcm, lbfin) and features a Peak-Hold function for capturing maximum torque values. The device includes an RS-232 digital output for data transfer, and with optional software, real-time measurements can be continuously logged for analysis.
Specifications and Dimensions
Measurement Range: 0 … 147.1 Ncm / 13.02 lbfin / 15 kgfcm
Resolution (High): 0.1 Ncm / 0.01 lbfin / 0.01 kgfcm
Resolution (Low): 1 Ncm / 0.1 lbfin / 0.1 kgfcm
Accuracy: ±1.5 % + 5 digits
Units of Measurement: Ncm, lbfin, kgfcm (default kgfcm)
Peak-Hold Function: Yes
Additional Functions: Data-Hold, Max/Min Values, Peak-Hold
Overload Protection: Up to 150 %
Output: RS-232 (optional software available)
Operating Temperature: 0 … +50 ºC, below 80 % RH
Power Supply: 9V battery
Main Unit Weight: Approx. 225 g
External Sensor Weight: Approx. 665 g
Main Unit Dimensions: 180 x 72 x 32 mm
External Sensor Dimensions: Ø 48 x 160 mm
Key Features and Benefits
Measures static and startup torque with high precision
External torque sensor for accurate readings
Supports three measurement units (Ncm, kgfcm, lbfin)
Peak-Hold function to capture maximum torque values
RS-232 digital output for easy data transfer
Optional software available for real-time data logging
Lightweight and portable with a durable plastic carrying case
1 x PCE-TM 80 Torque Meter
1 x External Torque Sensor
1 x Plastic Carrying Case
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TM 80
