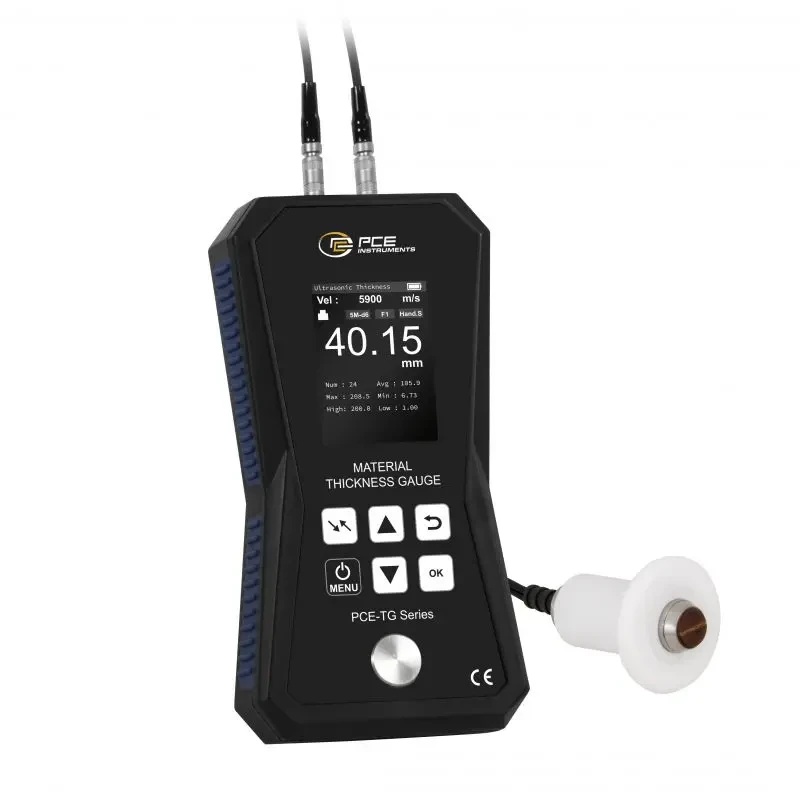

PCE Instruments Thickness Meter with High-Temperature Sensor (PCE-TG 150A HT)
PCE Instruments Thickness Meter with High-Temperature Sensor (PCE-TG 150A HT) is designed for measuring material thickness up to 300mm, even on heated surfaces. The device includes a high-temperature sensor, making it ideal for measuring metals, ceramics, and plastics under extreme conditions.
With an internal data memory and adjustable sonic velocity, this thickness meter ensures accurate results across various homogeneous materials. The built-in alarm signals deviations beyond set limits, enhancing its use in industrial quality control and production monitoring.
Specifications and Dimensions
Measuring Range: 1.2mm … 99.99mm (Resolution: 0.01mm)
Measuring Range: 100mm … 300mm (Resolution: 0.1mm)
Accuracy: ±0.5% v. Mw. + 0.05mm
Adjustable Sonic Velocity: 1000 … 9999 m/s
Data Memory: Stores up to 1500 measurement values
Sensor Temperature Range: -10 … 350°C
Display: 2.4-inch TFT color screen
Operating Temperature: 0 … 40°C (0 … 90% RH)
Dimensions: 168 x 87 x 35mm
Power Supply: 3x 1.5V AA batteries (3000mAh)
Protection Class: IP52
Key Features and Benefits
High-temperature sensor for heated materials up to 350°C
Measures material thickness up to 300mm
Pre-stored velocities for steel, aluminum, zinc, and more
Internal data memory for up to 1500 readings
Visual and optional acoustic alarms for limit breaches
Intuitive 2.4-inch TFT color display for clear readings
Compact and durable design with IP52 protection
Ideal for industrial applications and quality control
1 x Thickness Meter PCE-TG 150A HT
1 x High-Temperature Sensor (PCE-TG HT)
1 x Coupling Gel (TT-GEL)
1 x Transport Bag
3 x 1.5V AA Batteries
1 x Quick Start Guide
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TG 150A HT
