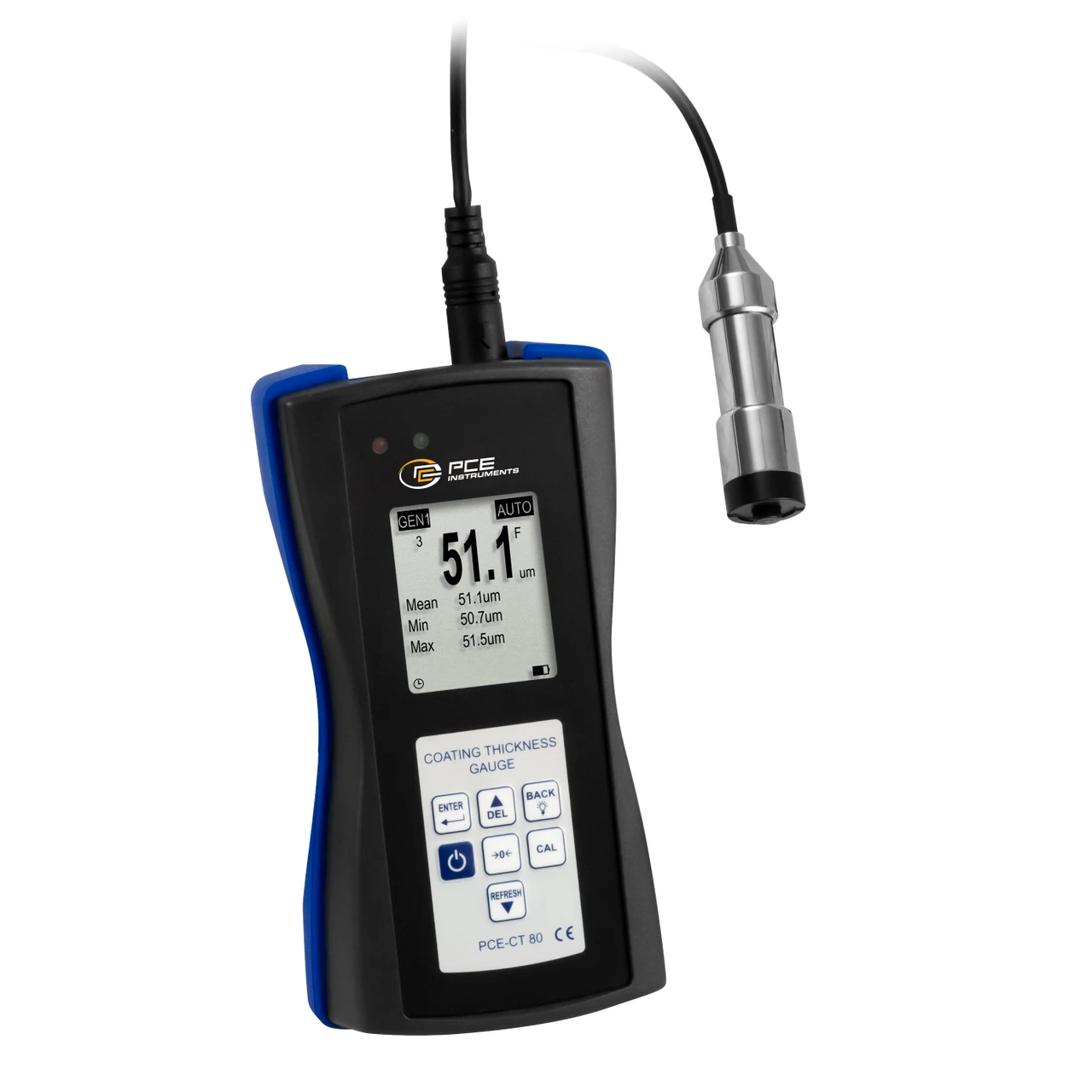

PCE Instruments Thickness Meter with External Sensor (PCE-CT 80-F5N3)
PCE Instruments Thickness Meter (PCE-CT 80-F5N3) is a non-destructive measuring device designed for precise coating thickness measurement on ferrous and non-ferrous metals. With an external sensor, this thickness meter allows users to reach difficult-to-access measurement points while ensuring high accuracy.
This thickness meter features a USB interface for efficient data transfer and a built-in memory function that stores up to 2000 readings. The integrated alarm function alerts users when coatings exceed pre-set thickness limits.
Specifications and Dimensions
Measuring Range:
Ferrous: 0 … 5000 µm
Non-Ferrous: 0 … 3000 µm
Accuracy: ±(2% of reading + 1 µm)
0.1 µm (<100 µm)
Measurable Materials: Ferrous and Non-Ferrous Metals
Minimum Radius of Curvature:
Convex: 5 mm / 0.19 in
Concave: 25 mm / 0.98 in
Minimum Measuring Surface: Ø17 mm / 0.67 in
Minimum Substrate Thickness:
Magnetic: 0.2 mm / 0.008 in
Non-Magnetic: 0.05 mm / 0.002 in
Multipoint calibration (1 – 4 points per group)
Zero-point calibration
Units: µm, mm, mils
Data Transfer: USB 2.0
DIR Mode: Volatile measuring group
GEN Mode: Four groups with automatic storage, max. 2000 readings
Power Supply: 3 x 1.5V AAA batteries
Display: 128 x 128 px LCD
Operating Temperature: 0 … 50°C / 32 … 122°F
Storage Temperature: -10 … 60°C / 14 … 140°F
Dimensions: 143 x 71 x 37 mm / 5.6 x 2.8 x 1.5 in
Weight: Approx. 271 g / 9.5 oz (with batteries)
Key Features and Benefits
External sensor for precise measurements in hard-to-reach areas
Non-destructive testing on ferrous and non-ferrous metals
USB 2.0 data transfer for easy documentation and analysis
Multipoint and zero-point calibration for enhanced accuracy
Automatic detection of material type (Fe/NFe) with various measuring modes
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-CT 80-F5N3
