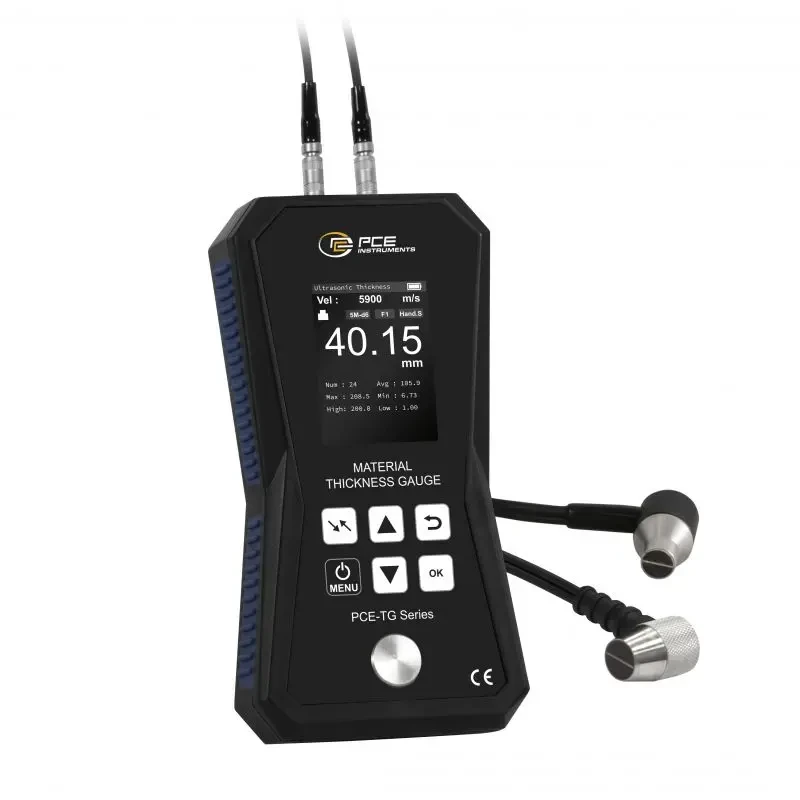

PCE Instruments Thickness Meter with Data Memory (PCE-TG 150A)
PCE Instruments Thickness Meter with Data Memory (PCE-TG 150A) is designed for precise measurement of material thickness across metals, plastics, and ceramics. This high-accuracy device features an internal data memory, adjustable sonic velocity, and an intuitive TFT color display for easy readings.
Capable of measuring up to 300mm, this thickness meter includes pre-stored sonic velocities for steel, aluminum, zinc, silver, and gold, making it highly versatile. It offers visual and optional acoustic alarms for exceeding limits. The built-in data memory allows for detailed analysis of stored values.
Specifications and Dimensions
Measuring Range: 1mm … 99.99mm (Resolution: 0.01mm)
Measuring Range: 100mm … 300mm (Resolution: 0.1mm)
Accuracy: ±0.5% v. Mw. + 0.05mm
Adjustable Sonic Velocity: 1000 … 9999 m/s
Data Memory: Stores up to 1500 measurement values
Display: 2.4-inch TFT color screen
Operating Temperature: 0 … 40°C (0 … 90% RH)
Dimensions: 168 x 87 x 35mm
Power Supply: 3x 1.5V AA batteries (3000mAh)
Protection Class: IP52
Key Features and Benefits
Measures material thickness up to 300mm
Adjustable sonic velocity for various materials
Pre-stored velocities for steel, aluminum, zinc, and more
Internal data memory for up to 1500 readings
Visual and optional acoustic alarms for limit breaches
Intuitive 2.4-inch TFT color display for clear readings
Compact and durable design with IP52 protection
Ideal for quality control and industrial applications
1 x Thickness Meter PCE-TG 150A
1 x Coupling Gel (TT-GEL)
3 x 1.5V AA Batteries
1 x Sensor PCE-TG 5M10d
1 x Sensor PCE-TG 5M6d
1 x Carrying Bag
1 x Quickstart Guide
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TG 150A
