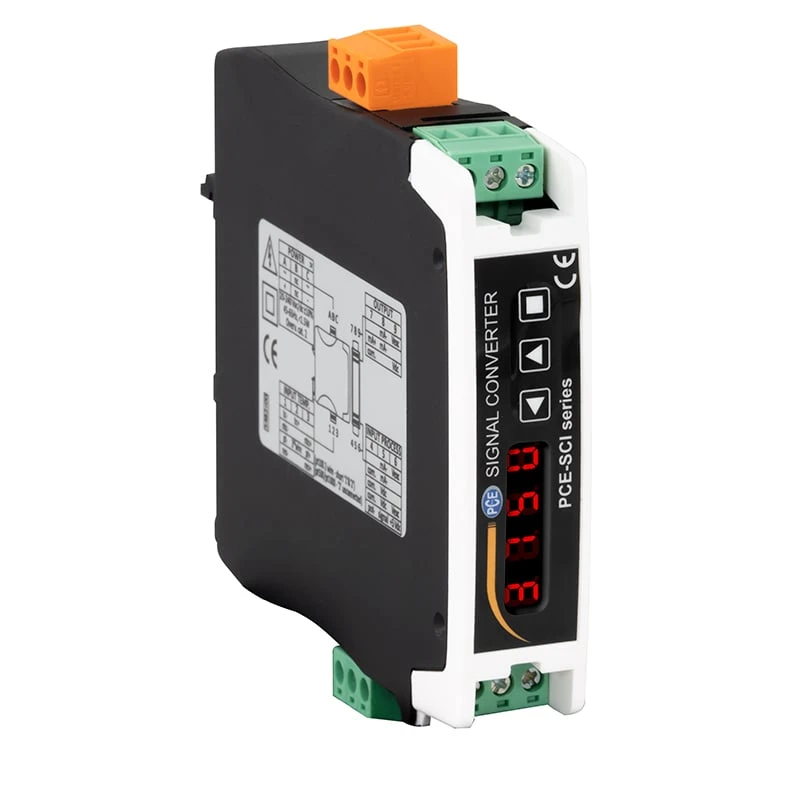

PCE Instruments Thermo Transducer (PCE-SCI-U)
PCE Instruments Thermo Transducer (PCE-SCI-U) is a highly versatile device designed to convert analog input signals into corresponding analog output signals. Featuring full galvanic isolation, this thermo transducer ensures reliable performance in various industrial applications. The unit supports over 100 input and output combinations, making it a flexible and cost-effective solution.
It supports process currents, voltages, potentiometers, resistance signals, thermocouples (J, K, N, E, T, R, S), and Pt100/Pt500/Pt1000 sensors. Additionally, its wide power supply range of 18 … 265V AC/DC allows seamless integration into existing systems.
Specifications and Dimensions
Input Signals: 4 … 20 mA, 0 … 10 V, various thermocouples and resistance sensors
Output Signal: Configurable 4 … 20 mA (active/passive) or 0 … 10 V DC
Accuracy: < 0.3% for process signals, < 1% for resistance and thermocouples
Thermocouple Compatibility: J, K, N, E, T, R, S
Resistance Input: 0 … 100 kΩ
Potentiometer Range: 0 … 500 Ω to 20 kΩ
Power Supply: 18 … 265 V AC/DC
Galvanic Isolation: 2300 Vrms (60 seconds)
Operating Temperature: 0 … 50°C / 32 … 122°F
Storage Conditions: -20 … 70°C / -4 … 158°F
DIN Rail Mounting: 35 mm standard
Protection Class: IP30
Dimensions: 106 x 108 x 22.5 mm / 4.2 x 4.3 x 0.9 in
Weight: 150 g / < 1 lb
Key Features and Benefits
Supports over 100 input and output signal combinations
Fast configuration via front buttons and LED display
Complete galvanic isolation for signal stability
Works with various thermocouples, resistance, and voltage inputs
SOS mode for fast maintenance without interrupting processes
Secure DIN rail mounting for industrial use
Configurable analog output for optimal compatibility
1 x Thermo Transducer PCE-SCI-U
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SCI-U
