PCE INSTRUMENTS hygrometer details

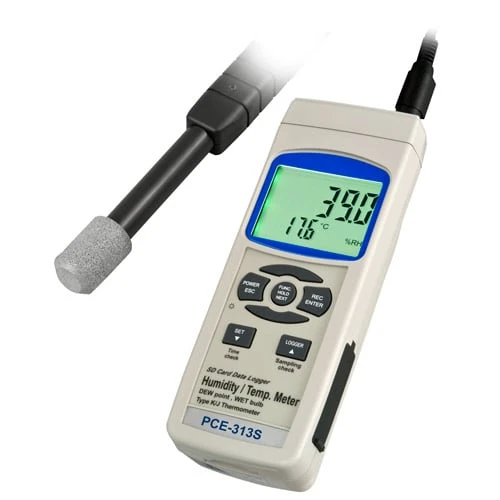

PCE Instruments Thermo-Hygrometer with Data Logging and SD Storage (PCE-313 S)
PCE Instruments Thermo-Hygrometer (PCE-313 S) is a professional-grade climate meter designed for accurate humidity and temperature monitoring. Equipped with an external probe, this device measures relative humidity, temperature, dew point, and wet bulb temperature in real time, making it ideal for HVAC, environmental studies, and industrial applications.
The PCE Instruments Thermo-Hygrometer features an integrated SD card slot (1-16 GB) for data logging, allowing for long-term recording without the need for continuous supervision. Users can transfer recorded data directly to a PC for analysis in Excel format.
Specifications and Dimensions
Humidity range: 5 … 95% RH
Temperature range: 0 … 50°C / 32 … 122°F
Type K temperature range: -50 … 1300ºC / -58 … 2372°F
Dew point range: -25.3 … 48.9ºC / -13.5 … 120°F
Wet bulb temperature range: -21.6 … 50ºC / -6.9 … 122°F
Resolution: 0.1% RH / 0.1°C / 0.18°F
Accuracy: ±0.8ºC / 0.44ºF (temperature), ±3% RH (humidity)
Memory: SD card (1 … 16 GB) with real-time data logging
Measurement rate: Adjustable (1 … 3600 seconds)
Display: Large LCD (52 x 38 mm) with backlight
Interface: RS-232
Power supply: 6 x 1.5V batteries or optional 9V power adapter
Operating conditions: 0 … 50°C / 32 … 122ºF, < 85% RH
Dimensions: 177 x 68 x 45 mm / 7 x 2.7 x 1.8 in
Weight: Approx. 490 g / 1.1 lbs
Key Features and Benefits
Measures temperature, humidity, dew point, and wet bulb temperature
Real-time data recording with SD card memory (1 to 16 GB)
Data saved in Excel format for easy analysis
External probe allows for flexible environmental monitoring
Adjustable measurement rate from 1 to 3600 seconds
Large LCD screen with backlight for easy reading
Tripod mountable for hands-free operation
Battery-powered with optional AC adapter for extended use
Durable, compact design for industrial and field applications
1 x PCE Instruments Thermo-Hygrometer (PCE-313 S) with sintered hood
1 x Combined sensor for temperature and humidity
1 x SD card (2 GB)
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-313 S
