PCE INSTRUMENTS hygrometer details

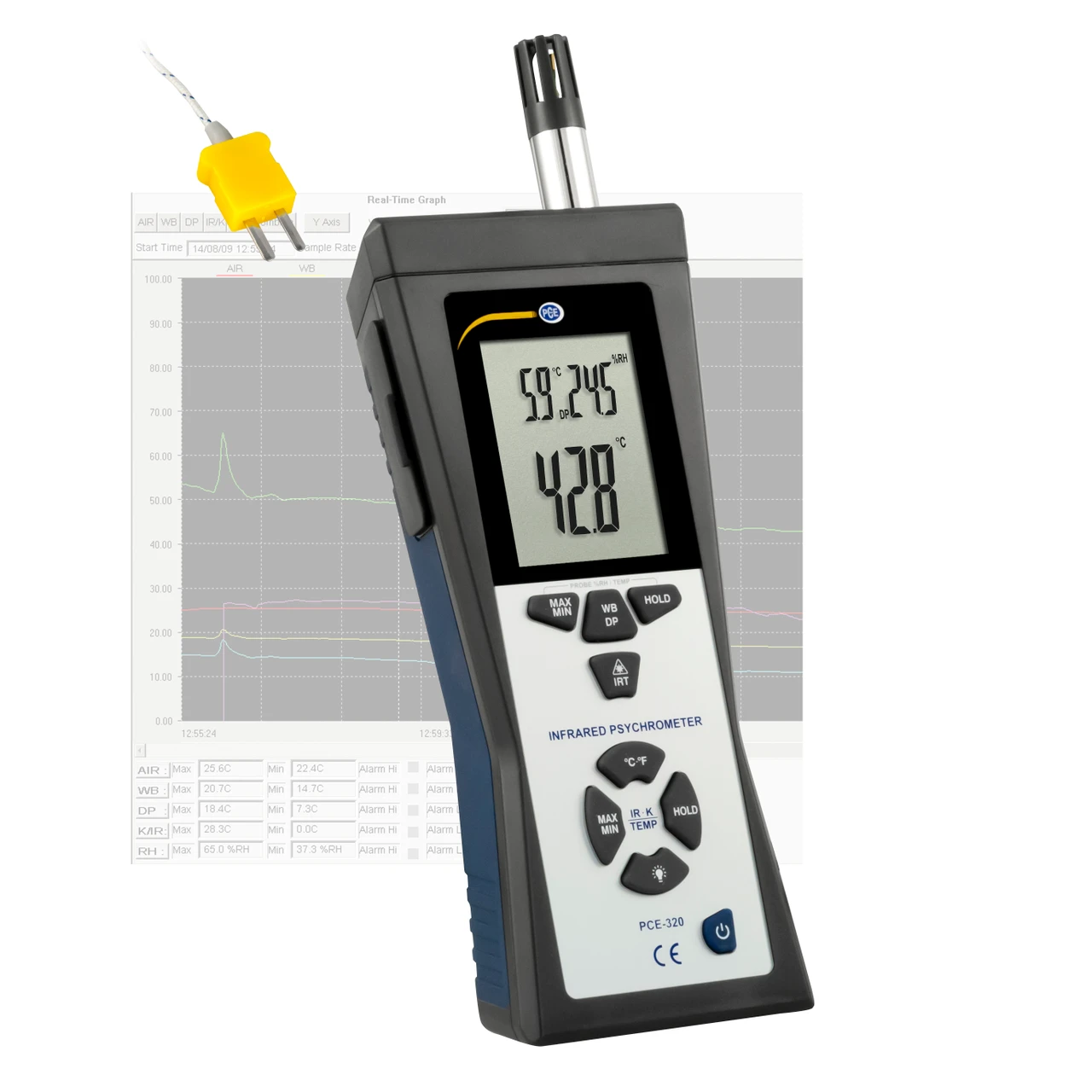

PCE Instruments Thermo-Hygrometer (PCE-320)
PCE Instruments Thermo-Hygrometer (PCE-320) is a professional device designed to measure temperature, humidity, dew point, and surface temperature with precision. It offers multiple measurement options, including an internal sensor for ambient conditions and an infrared function for non-contact surface readings.
Equipped with a large backlit LCD, the PCE Instruments Thermo-Hygrometer displays real-time temperature and humidity values. It also features max, min, and hold functions, and software compatibility for data transfer. This versatile tool is ideal for industrial applications.
Specifications and Dimensions
Internal Temperature Range: -20 … 60°C / -4 … 140°F
Relative Humidity: 10 … 90% RH
Global Humidity Temperature: -21.6 … 60°C / -6.8 … 140°F
Dew Point Temperature: Variable
External Temperature Range: -50 … 500°C / -58 … 932°F
Infrared Temperature Resolution: 0.1°C / 0.18°F
Humidity Resolution: 0.1%
Accuracy (Internal): ±1.0°C / 1.8°F (Temperature), ±3% (Humidity)
Accuracy (External): ±1% ±1.0°C / 1.8°F
Response Time: < 4 seconds
Humidity Sensor Type: Resistance Sensor
Software Compatibility: Windows 98 and later
Memory: Max and Min Value Storage
External Temperature Sensor: 1 m (3.3 ft) hot wire sensor
Display: Multi-function LCD
Power: 9V battery
Operating Conditions: -20 … 60°C / -4 … 140°F, 0 … 90% RH
Dimensions: 257 x 76 x 53 mm / 10.1 x 2.9 x 2 in
Weight: 355 g / < 1 lb
Key Features and Benefits
Measures temperature, humidity, dew point, and surface temperature
Infrared function for non-contact surface temperature readings
Large backlit LCD for easy reading in various lighting conditions
Data hold, max/min, and average value functions
Auto shut-off function to conserve battery life
Software included for data transfer and analysis
External temperature sensor allows versatile measurements
Highly accurate humidity and temperature readings
Durable and lightweight for both field and industrial use
1 x PCE Instruments Thermo-Hygrometer (PCE-320)
1 x External temperature sensor
1 x Software and data cable
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-320
