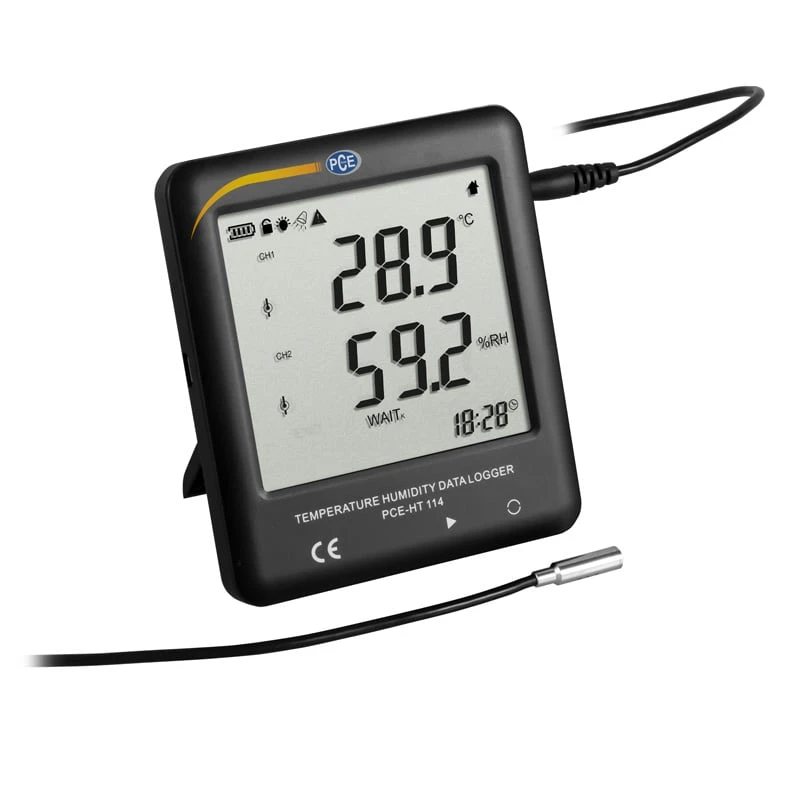

PCE Instruments Temperature-Humidity Data Logger (PCE-HT 114)
PCE Instruments Temperature-Humidity Data Logger (PCE-HT 114) is designed for precise environmental monitoring in refrigerators, laboratories, and storage facilities. Equipped with an external sensor on a 2 m (6.6 ft) cable, it accurately records temperature and humidity levels, displaying real-time data on the built-in LCD screen.
With a storage capacity of up to 25,920 readings, this data logger enables long-term tracking and analysis via USB. The integrated software exports measurements in both analytical and PDF formats, including graphical reports for easy interpretation.
Specifications and Dimensions
Temperature Measuring Range: -40 to 125°C (-40 to 257°F) (External Sensor)
Humidity Measuring Range: 0 to 100% RH (External Sensor)
Resolution: 0.1°C / 0.18°F, 0.1% RH
Accuracy: ±0.3°C (14 to 149°F) / ±0.5°C (Remaining Range)
Response Time: 5 min
Data Storage: Up to 25,920 Readings
Storage Rates: Adjustable from 30s to 1 hour
Alarm: Adjustable Audible Alarm
Power Supply: 3 x 1.5V AAA Batteries or 5V USB
Battery Life: Approx. 1 Year (Without Lighting/Alarm)
Operating Conditions: -30 to 65°C (-22 to 149°F)
Protection Rating: IP20
Dimensions: 96 x 108 x 20 mm (3.8 x 4.3 x 0.8 in)
Weight: 120 g (< 1 lb)
Key Features and Benefits
Monitors temperature and humidity with high accuracy
External sensor with a 2 m (6.6 ft) cable for precise placement
Stores up to 25,920 readings for long-term environmental tracking
USB interface for fast data transfer and analysis
LCD display for real-time data visualization
Adjustable high/low alarms for precise environmental control
Data exportable as a PDF report with graphical representation
Battery and USB power options for flexible operation
Ideal for storage facilities, laboratories, and industrial applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-HT 114
