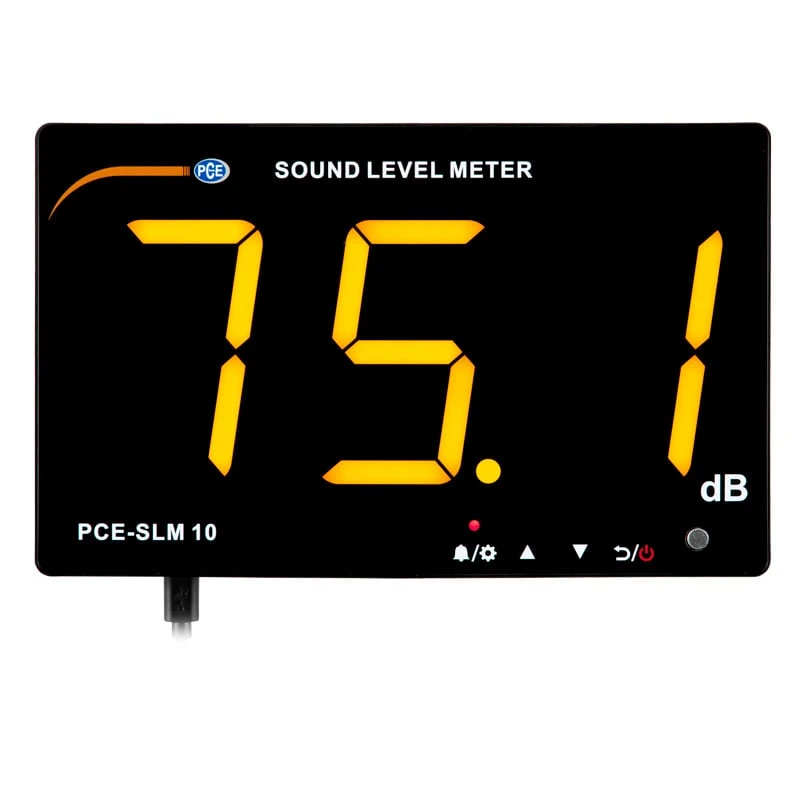

PCE Instruments Sound Sensor for Noise Monitoring and Data Logging (PCE-SLM 10)
PCE Instruments Sound Sensor (PCE-SLM 10) is designed for continuous noise level measurement and visualization. This device is ideal for environments such as schools, offices, and event venues where monitoring sound levels is essential. Featuring a large LED display, the measured values are clearly visible even in low-light conditions.
It includes a micro USB power option and an internal memory that stores up to 657,000 readings. With real-time data transmission via USB, users can easily connect the device to a computer for further analysis using the included software.
Specifications and Dimensions
Measuring Range: 30 … 130 dBA
Measurement Accuracy: ± 1.5 dBA (at 94 dB / 1 KHz)
0.1 dB (below 100 dB)
1 dB (above 100 dB)
Frequency Range: 31.5 Hz … 8.5 kHz
Frequency Weighting: A
Time Weighting: Fast
Microphone Type: 6 mm condenser microphone
Display: 3-digit LED display
Character Height: 75 mm / 3 in
Storage Capacity: 657,000 readings
Interface: USB for data transfer
Power Supply: 5V / 1 A via micro USB socket
Mounting Options:
Wall mounting with housing tabs
Tripod mounting with integrated tripod thread
Operating Conditions: 0 … 40°C / 32 … 104°F, 10 … 80% RH
Storage Conditions: -10 … 60°C / 14 … 140°F, 10 … 70% RH
Dimensions: 210 x 130 x 28 mm / 8.3 x 5.1 x 1.1 in
Weight: 453 g / 1 lb
Key Features and Benefits
Large 75 mm LED display for easy readability
Measuring range from 30 … 130 dBA for versatile applications
Fast response time and high accuracy for precise measurements
Internal memory stores up to 657,000 readings for long-term monitoring
USB connectivity for live data transfer and analysis
Wall and tripod mounting options for flexible installation
Powered via micro USB, compatible with external power sources
1 x Sound Sensor PCE-SLM 10
1 x Micro USB Cable
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SLM 10
