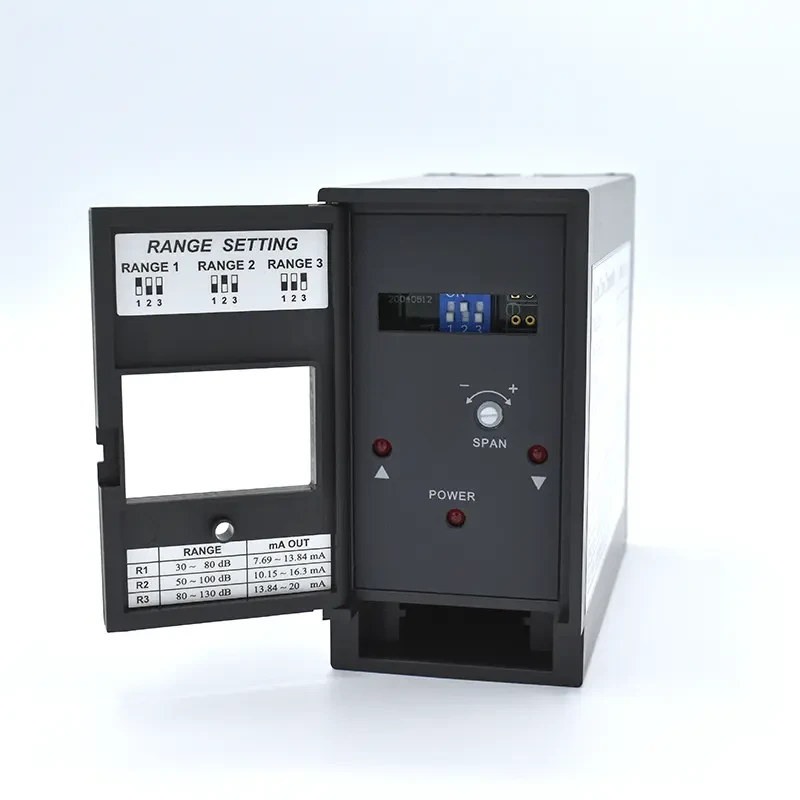

PCE Instruments Sound Level Meter with Industrial Noise Monitoring (PCE-SLT-TRM)
PCE Instruments Sound Level Meter with Industrial Noise Monitoring (PCE-SLT-TRM) is a reliable device designed for continuous noise level monitoring in workplaces, factories, and production environments. This sound level meter includes a wall-mountable acoustic sensor with a 1.5 m / 4.92 ft cable and a transmitter for real-time noise assessment.
It is ideal for monitoring occupational noise exposure limits and ensuring compliance with industry standards. The PCE Instruments Sound Level Meter measures sound pressure levels from 30 to 130 dB across three adjustable ranges.
Specifications and Dimensions
Measuring Range: 30 … 130 dB (three selectable ranges)
Resolution: 0.1 dB
Accuracy: ±1.5 dB
Frequency Weighting: A
Microphone Type: 1/2" precision electret
Power Supply (Transmitter): 90 … 260V AC / 50 or 60 Hz
Output Signal: 4 … 20-mA
Calibration: Adjustable by set screw
Operating Conditions: 0 … +50 °C / +32 … +122 °F, max. 85% RH
Protection Class (Transmitter): IP 54 (dust and splash-resistant)
Weight: Lightweight and easy to mount
Sensor Cable Length: 1.5 m / 4.92 ft
Key Features and Benefits
Continuous noise level monitoring for industrial and workplace environments
Three selectable measurement ranges for accurate sound pressure level readings
IP 54-rated transmitter housing for dust and splash resistance
Wall-mountable sensor for easy installation
4 … 20-mA output for seamless integration with control systems
Adjustable calibration to maintain accuracy
Compliant with IEC 61672 (Class II) noise measurement standards
1 x Sound Level Meter PCE-SLT-TRM
1 x Acoustic Sensor with 1.5 m / 4.92 ft Cable
1 x Wall Mounting Bracket
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-SLT-TRM
