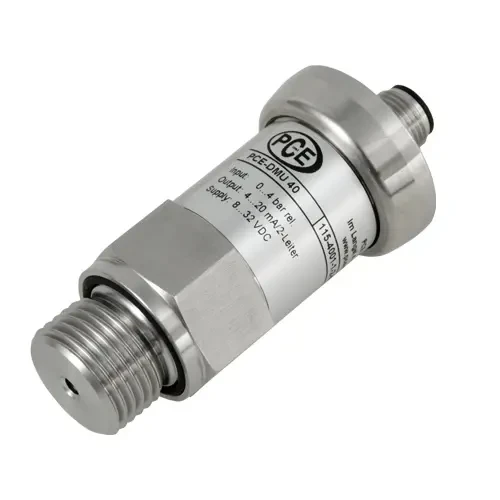

PCE Instruments Pressure Transmitter (PCE-DMU 40)
PCE Instruments Pressure Transmitter (PCE-DMU 40) is a high-precision device designed for measuring absolute and relative pressure in various industrial applications. With a durable stainless steel diaphragm, this pressure transmitter ensures high resistance to corrosion, making it suitable for measuring gases, water, fuels, and oils with superior accuracy.
Engineered for flexibility, this industrial pressure transmitter features a modular design that allows multiple process connections and electrical configurations.
Specifications and Dimensions
Nominal pressure relative: -1 … 0 to 600 bar
Nominal pressure absolute: 0.4 to 6 bar
Overpressure range: Up to 1000 bar
Burst pressure: Up to 1800 bar
Output signal: 2-wire 4 … 20 mA or 3-wire 0 … 10 V
Power supply: 8 … 32 V DC (2-wire) or 14 … 30 V DC (3-wire)
Accuracy: ±0.25% FSO
Long-term stability: < ±0.1% FSO
Response time: <10 ms (2-wire), <3 ms (3-wire)
Media compatibility: Fuels, oils, oxygen, water
Operating temperature: -40 … 85 °C
Storage temperature: -40 … 100 °C
Housing material: Stainless steel 1.4404
Diaphragm: Stainless steel 1.4435
Protection class: Industrial-grade resistance
Key Features and Benefits
Highly accurate pressure measurement with ±0.25% FSO
Corrosion-resistant stainless steel diaphragm for durability
Modular design allows multiple configuration options
Compatible with gases, water, fuels, and oils
Fast response time for real-time monitoring
Selectable output signals for system integration
Can handle extreme pressure conditions up to 1000 bar
Reliable long-term stability for industrial applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DMU 40
