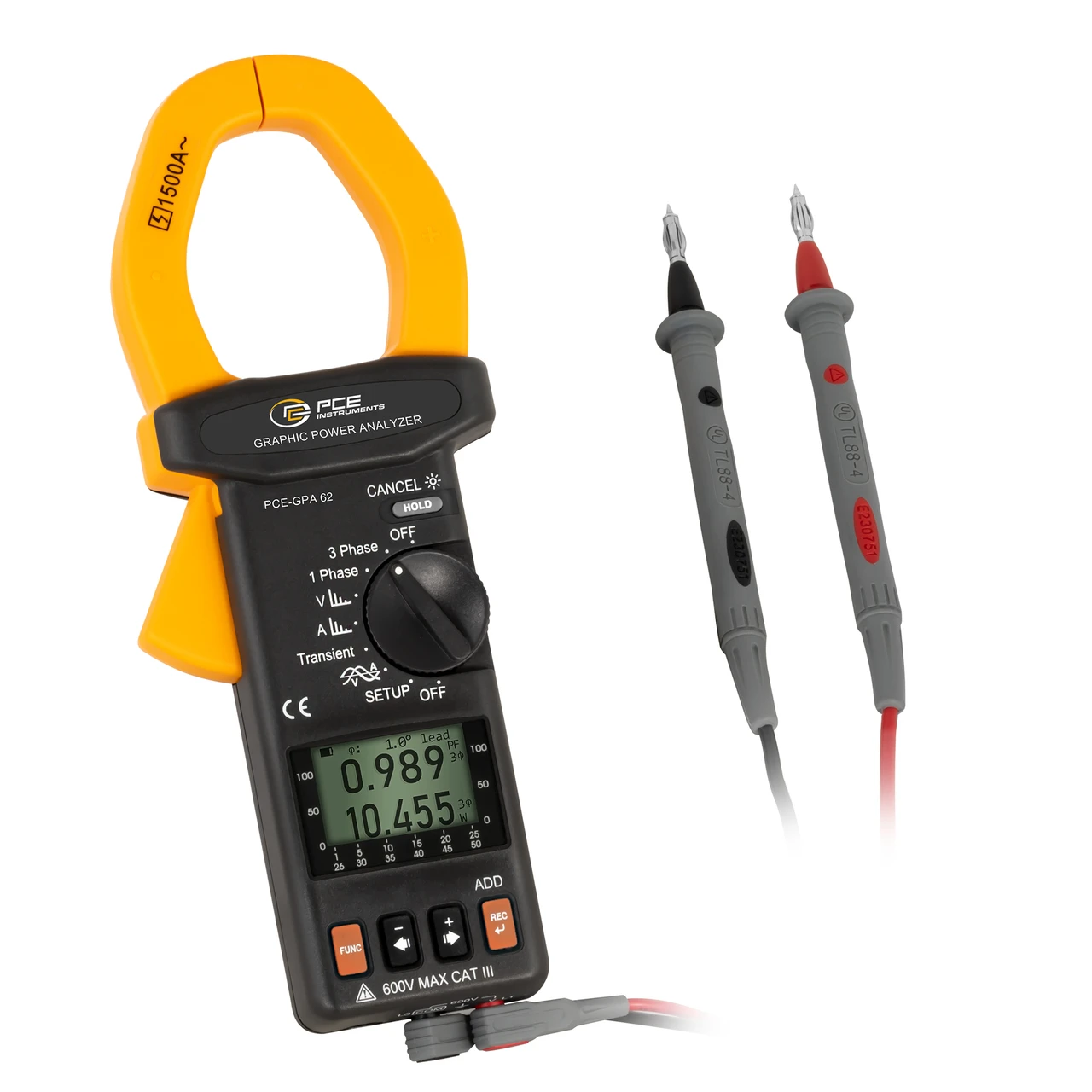

PCE Instruments Power Analyzer Clamp Meter (PCE-GPA 62)
PCE Instruments Power Analyzer Clamp Meter (PCE-GPA 62) is a versatile tool designed for both single-phase and three-phase power measurements. It accurately assesses active, reactive, and apparent power, as well as power factor, phase angle, energy, voltage, current, and harmonics up to the 50th order.
Equipped with a graphic display, this clamp meter allows for real-time visualization of network analyzer values, ensuring precise readings even in low-light conditions. The PCE-GPA 62 features a built-in data logger, enabling users to record and transfer data to a PC for comprehensive analysis.
Specifications and Dimensions
Voltage Measurement: 4.0 … 600.0 V RMS value ± 0.5% of the measured value ± 5 digits / 0.1 V
Voltage Peaks (>10V): 50 Hz – 60 Hz / ± 5% ± 50 digits
Current Measurements: 4.0 … 1500.0 A real ± 1% of the measured value ± 5 digits / 0.01 A
Current Peaks (>20A): 50 Hz – 60 Hz / ± 5% ± 50 digits
Active Power (P): 10 W … 9999 kW in 5 measurement ranges
Apparent Power (S): 10 VA … 9999 kVA in 5 measurement ranges
Reactive Power (Q): 10 VAr … 9999 kVAr in 5 measurement ranges
Power Factor (PF): 0.000 … 1.000
Phase Angle: -180° … +180°
Frequency Measurement (U > 50 V): 46 … 65 Hz
Active Energy: 0 … 999.999 kWh
Apparent Energy: 0 … 999.999 kVAh
Reactive Energy: 0 … 999.999 kVarh
Harmonics in Voltage (Relative): 1st – 20th order / ± 2% / 0.1%
Harmonics in Voltage (Absolute): 1st – 20th order / ± 2% / 0.1%
Harmonics in Current (Relative): 1st – 20th order / ± 2% / 0.1%
Harmonics in Current (Absolute): 1st – 20th order / ± 2% of the value ± 0.4 A / 0.1 A
Total Harmonic Distortion (THD-F): 0.0 – 20% / 2% / 0.1%
Max. Clamp Opening: 55 mm / 2.2 in
Range Selection: Auto
Memory Capacity: 50,000 readings
USB Interface for PC Connectivity
Display: Graphic LCD 128 x 64 with Backlight
Power Supply: 2 x 1.5V AA Batteries
Energy Consumption: Approx. 10-mA
Dimensions: 271 x 112 x 46 mm / 10.6 x 4.4 x 1.8 in
Weight: 650 g / 1.4 lbs with Batteries
Operating Conditions: 85% max. R.H. / -10 … 50°C / 14 … 122°F
Protection / Standards: CAT III 600 V / EN 61010-2-032
Key Features and Benefits
Real-time power and energy measurement for single and three-phase networks
Measures voltage, current, power factor, phase angle, and harmonics
Graphic LCD display ensures clear readings even in low-light conditions
Data logging capability with 50,000 readings for long-term analysis
Auto shut-off after 15 minutes to extend battery life (can be disabled)
USB interface for easy data transfer to PC
1 x Three-Phase Clamp Meter PCE-GPA 62
2 x Isolated Measuring Pins with 2 m / 6.6 ft Cables
1 x Carrying Case
1 x USB Cable for PC
1 x Software (in English)
1 x User’s Manual
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-GPA 62
