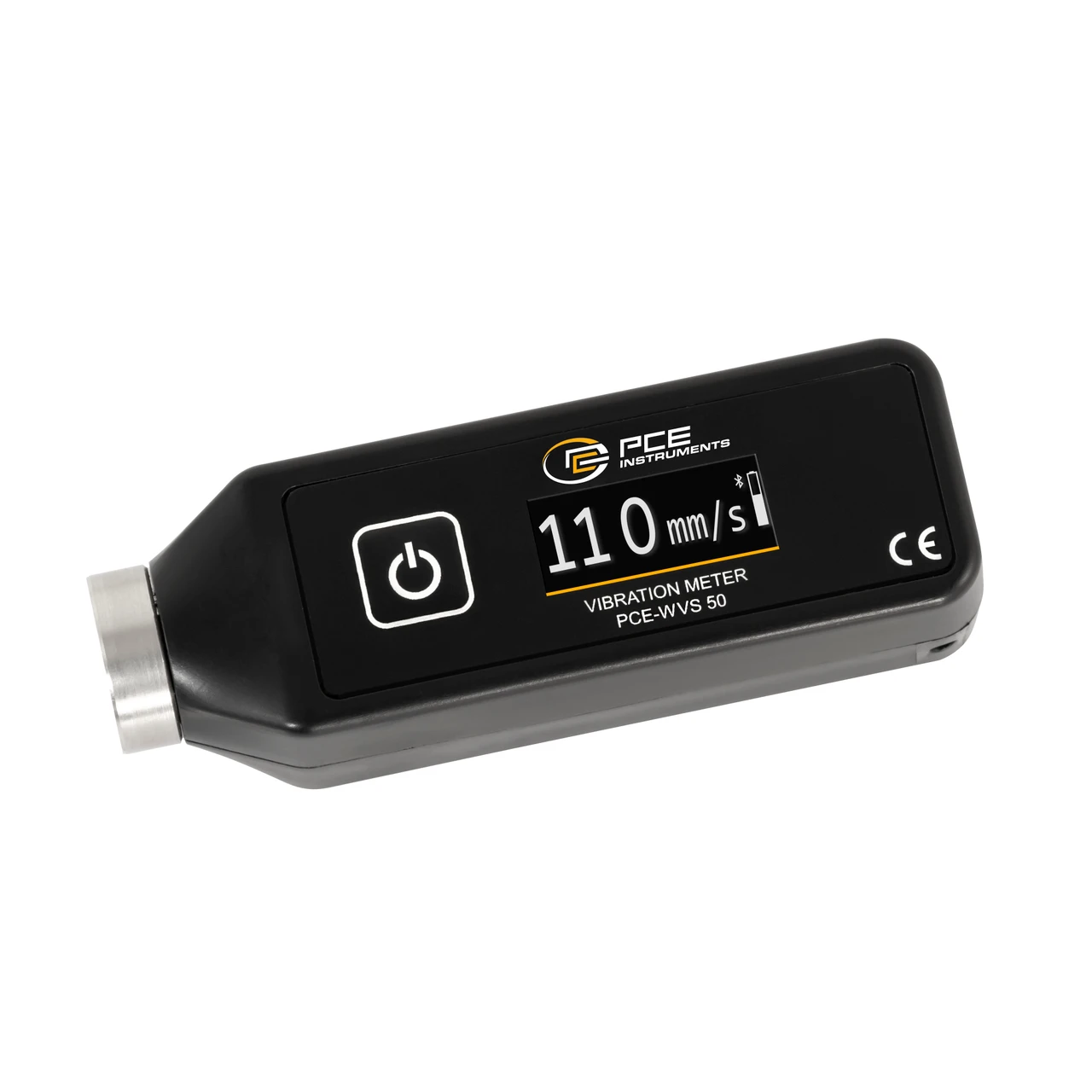

PCE Instruments Portable Vibration Analyzer (PCE-WVS 50)
PCE Instruments' Portable Vibration Analyzer (PCE-WVS 50) is designed for precise measurement of vibration parameters in industrial equipment. Featuring an OLED display and a magnetic holder, this compact device measures vibration velocity, acceleration, and displacement across a frequency range of 10 to 1000 Hz.
Equipped with a built-in rechargeable Li-pole battery and a standard USB Type-C charging port, the analyzer ensures extended operational time and convenient recharging. Optional Bluetooth 5.2 connectivity enhances data transfer capabilities, making it suitable for daily monitoring of machinery.
Specifications and Dimensions
Vibration Velocity: 0.01 … 200 mm/s
Vibration Acceleration: 0.1 … 200 m/s²
Vibration Displacement: 2 … 2000 μm
Frequency Range: 10 … 1000 Hz
Protection Class: IP54
Power Supply: Li-pole battery, 3.7 V; 370 mAh
Battery Life: 4 – 8 hours depending on usage
Interface: USB Type-C, Bluetooth LE 5.0
Charging Time: 1.5 hours
Operating Temperature: -10 … +55° C
Humidity: <85% r.h.
Dimensions (with magnetic attachment): 30 x 28 x 90 mm
Display: 0.91" OLED
Key Features and Benefits
High measurement accuracy for vibration velocity, acceleration, and displacement
Compact design with magnetic holder for easy attachment to equipment
Standard USB Type-C charging port for convenient recharging
Built-in rechargeable battery ensures extended operational time
Optional Bluetooth 5.2 connectivity for enhanced data transfer
OLED display provides clear and easy-to-read measurements
Suitable for daily monitoring of various industrial machinery
1 x PCE-WVS 50 Vibration Analyzer
1 x Operating Instructions
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-WVS 50
