Stroboscope light details

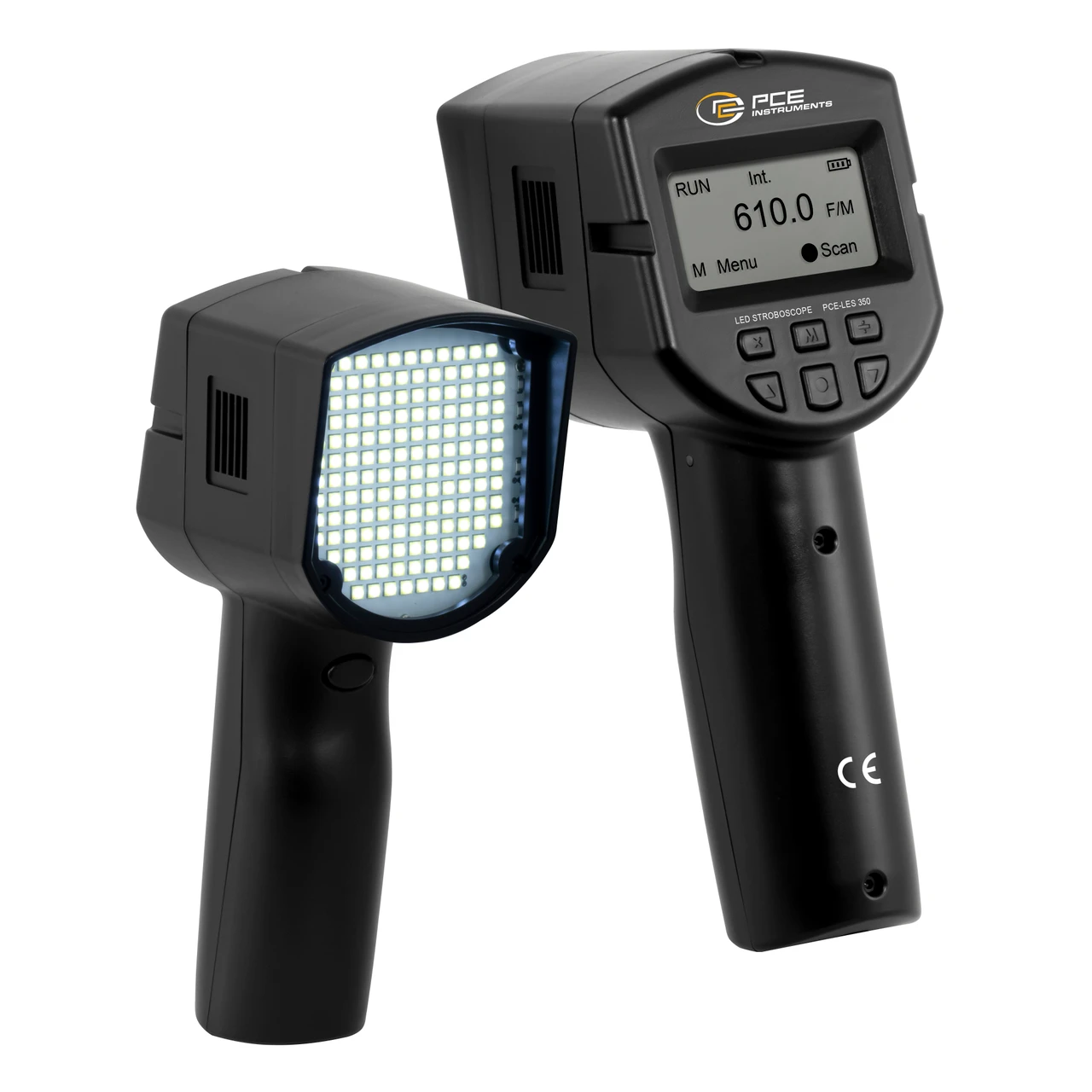

PCE Instruments Portable LED Stroboscope with High-Intensity Light (PCE-LES 350)
PCE Instruments Portable LED Stroboscope (PCE-LES 350) is a powerful tool designed for precise motion analysis and high-speed inspection. With a frequency range of 50 to 12,000 FPM, this stroboscope provides exceptional accuracy for monitoring rotating machinery, production lines, and industrial processes.
The PCE Instruments Portable LED Stroboscope features 144 high-intensity LEDs, delivering an illuminance of 6270 lux at 1200 FPM from a distance of 20 cm. Its user-friendly interface allows for quick frequency adjustments, including doubling and division of FPM for easy synchronization.
Specifications and Dimensions
Flash Frequency: 50 to 12,000 FPM
Resolution: 0.1 FPM
Accuracy: ±0.01% of measured value
Flash Units: FPM, Hz, m/min
Light Source: 144 high-power LEDs
Illuminance: 6270 lux at 1200 FPM / 20 cm
Pulse Width: 8 to 50 µs (±1µs)
Display: Graphic LCD
Battery Life: Up to 4 hours
Power Supply: 100 to 240V AC, 50/60Hz
Device Weight: 435 g / 0.96 lbs
Device Dimensions: 203 x 80 x 85 mm
Operating Temperature: 0 to 50°C
Key Features and Benefits
Precision stroboscope for motion analysis and speed measurement
144 high-power LEDs for optimal illumination
Adjustable flash frequency for detailed inspection
Doubling and division of FPM at the press of a button
Integrated lithium-ion battery for portable use
Automatic power-off function for extended battery life
Ergonomic design for quick, one-hand operation
Ideal for industrial, research, and production applications
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-LES 350
