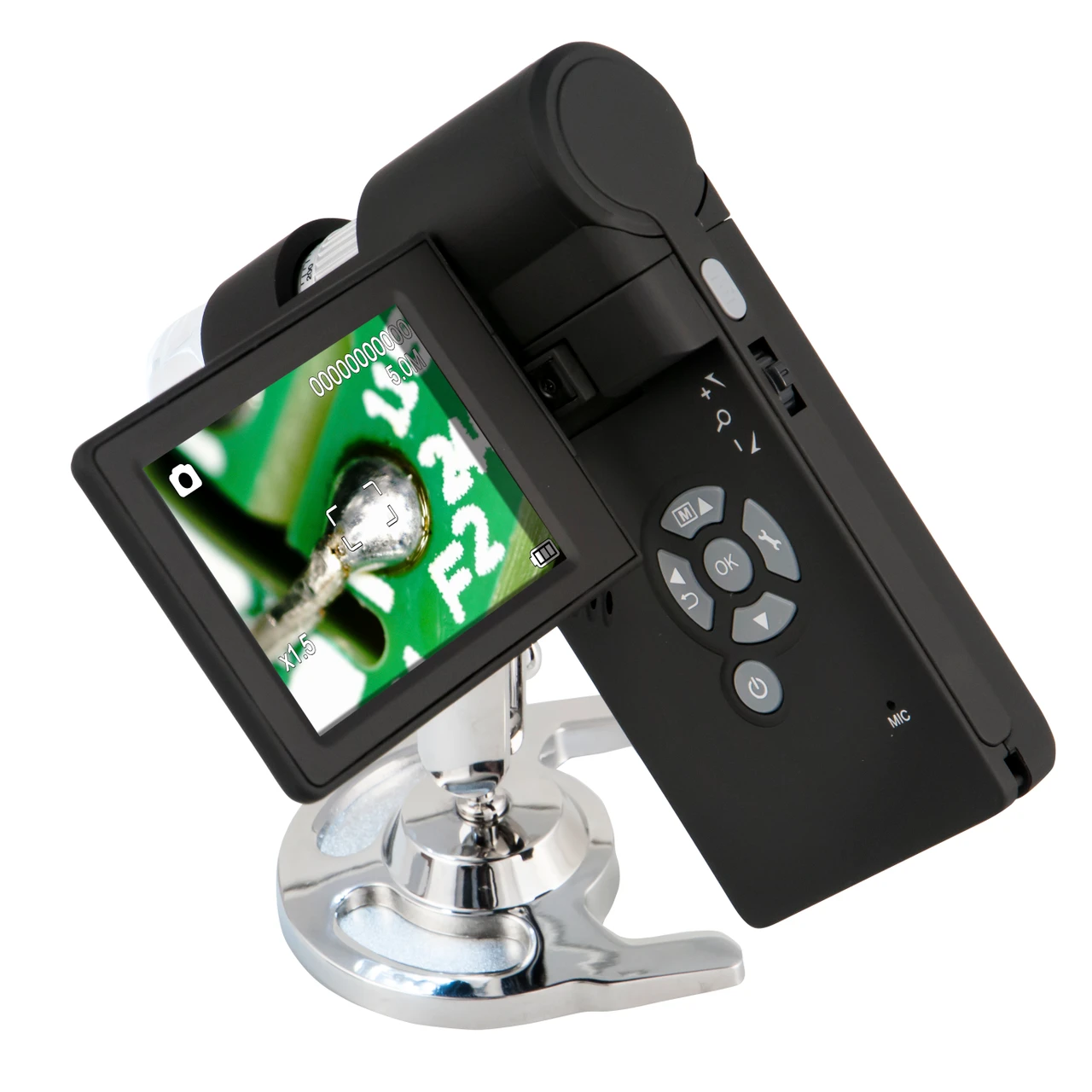

PCE Instruments Portable Digital Microscope (PCE-DHM 10)
PCE Instruments Portable Digital Microscope (PCE-DHM 10) is a versatile device for capturing, magnifying, and analyzing the smallest details with up to 500x zoom. Equipped with a retractable 3-inch TFT display, it allows for PC-independent operation, making it ideal for laboratory, educational, and industrial applications.
The digital microscope features an integrated 5-megapixel camera (interpolated to 12 MP) that captures high-resolution images and videos, stored directly on a MicroSD card. Its USB 2.0 connectivity allows for easy transfer to a PC or laptop.
Specifications and Dimensions
Magnification: 20x, 200x, and 500x (based on 5 MP resolution)
Display: 3-inch TFT color screen
Camera Sensor: 5 MP CMOS (12 MP interpolated)
Image Resolution: 12 MP, 9 MP, 5 MP, 3 MP, 1.3 MP, VGA
Shutter Speed: 1 sec to 1/1000 sec
Focusing Range: 10 mm – 30 mm
Storage: MicroSD card (up to 32 GB)
Power Supply: 3.7V Li-Ion rechargeable battery
Lighting: 8 white LEDs
Connectivity: USB 2.0
Dimensions: 130 x 112 x 28 mm
Key Features and Benefits
Portable design for mobile and PC-independent use
High-resolution image and video capture with MicroSD storage
Built-in digital zoom and playback function on display
Adjustable LED lighting for optimal clarity
PC-compatible with Windows and Mac operating systems
Software for measuring distances and surfaces in enlarged view
Dual-axis lens with 27x and 100x magnification
Ideal for research, inspection, and industrial quality control
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-DHM 10
