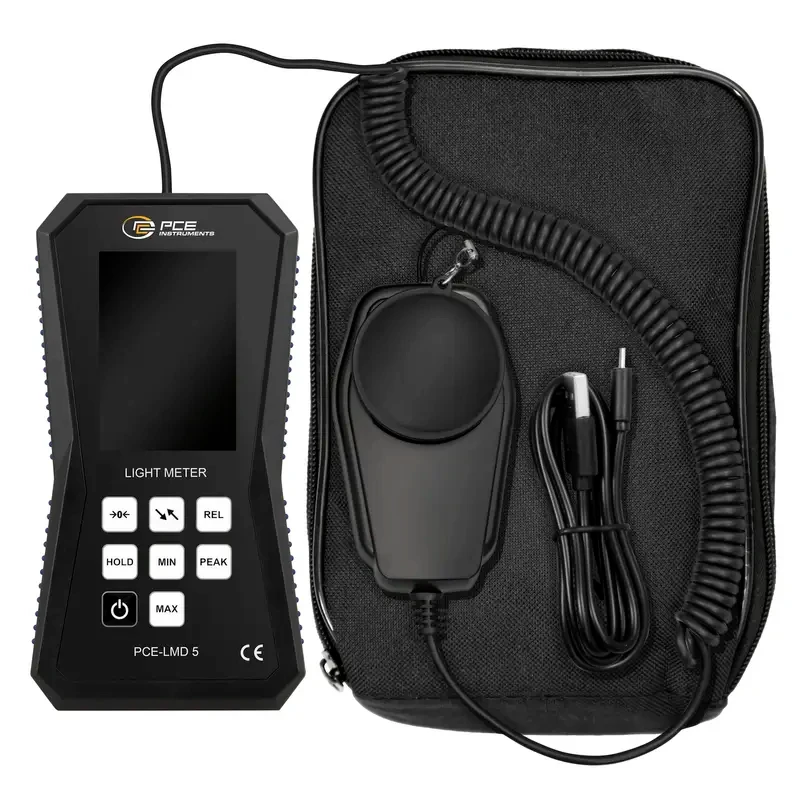

PCE Instruments Photometer with External Probe (PCE-LMD 5, PCE-LMD 10)
PCE Instruments Photometer is a versatile and precise device designed for accurate light intensity measurements in various environments. Featuring an external silicon photodiode with a spectral filter, this photometer ensures reliable readings by allowing optimal positioning of the sensor. It offers a wide measuring range from 0 to 400,000 lux and supports footcandle measurements.
The PCE Instruments Photometer includes advanced functions such as MIN/MAX readings, peak value recording, and relative measurement capabilities. Its rechargeable Li-Ion battery ensures extended operation.
Specifications and Dimensions
Measuring Range (Lux): 0 to 400,000 Lux
Measuring Range (Footcandle): 0 to 400,000 fc
Resolution: 0.1 Lux / 1 Lux
Accuracy: ±5% of measured value ±10 digits
Sampling Rate: 4 Hz (Peak Hold: 10 µs)
Sensor: Silicon photodiode with spectral filter
Memory Capacity: 32,000 measured values
Power Supply: 3.7V Li-Ion rechargeable battery
USB Interface: Micro-USB (for charging and data transfer)
Operating Temperature: -10°C to 50°C (14°F to 122°F)
Storage Conditions: -20°C to 50°C (-4°F to 122°F)
Device Dimensions: 162 x 88 x 32 mm (6.4 x 3.5 x 1.3 in)
Sensor Dimensions: 102 x 60 x 25 mm (4 x 2.4 x 1 in)
Weight: Approx. 320 g (11.3 oz)
Key Features and Benefits
Wide measuring range up to 400,000 lux for diverse applications
External sensor allows optimal positioning for precise readings
MIN/MAX function captures highest and lowest readings
Data logging capability stores up to 32,000 measurements
USB connectivity enables real-time monitoring and data export
Peak value recording with 10 µs sampling rate for fast measurements
Rechargeable Li-Ion battery ensures long-lasting operation
Ideal for workplaces, laboratories, greenhouses, and photography studios
Product identification
- Brand: PCE INSTRUMENTS
