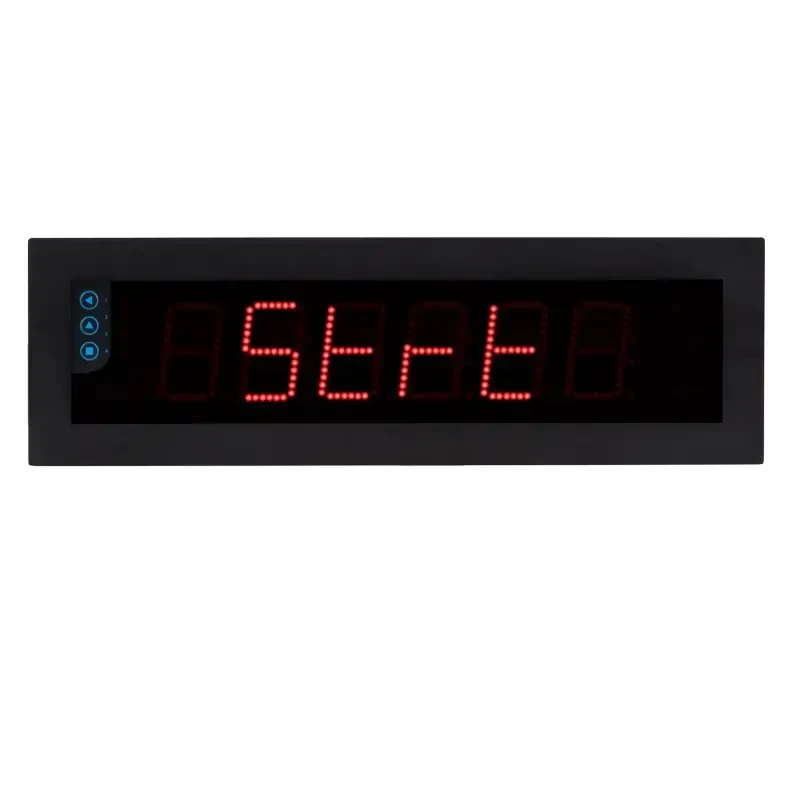

PCE Instruments Panel Meter (PCE-BPD-C-66A, PCE-BPD-C-66D)
PCE Instruments Panel Meter is designed for clear and precise measurement readings in industrial and commercial settings. With a large LED display and IP65-rated metal housing, this panel meter ensures durability and visibility even in bright environments.
The PCE Instruments Panel Meter is highly configurable for various applications, including time measurement and process monitoring. The robust design allows for wall or switch cabinet mounting, making it ideal for factories, production lines, and automation systems.
Specifications and Dimensions
Function: Time measurement
Input Signal: NPN, PNP
Input Voltage: ±30 V DC
Display: 7-segment LED with 6 digits
Digit Height: 60 mm / 2.3"
Maximum Reading Distance: 25 m / 82 ft
Accuracy: ±0.03% of measuring range
Response Time: 300 ms
Display Range: -199,999 to 999,999
Power Supply: 85 – 265 V AC / 120 – 370 V DC
Power Consumption: 3.5 W (without accessories), 5.5 W (with accessories)
Sensor Voltage Supply: 18, 15, 9, 5 V DC
Maximum Current for Sensor Supply: 70 mA (short-circuit protected)
Viewing Angle: 120°
Operating Conditions: 0 – 50 °C / 32 – 122 °F, <90% RH
Storage Conditions: -20 – 70 °C / -4 – 158 °F, <90% RH
Weight: 3500 g / 123.4 oz
Dimensions: 436 mm x 135 mm x 55 mm / 17.1" x 5.3" x 2.1"
Key Features and Benefits
High-visibility LED display for clear readings in bright environments
Durable metal housing with IP65 protection for harsh conditions
Supports multiple input signals for versatile applications
Configurable via keypad for customized settings
Wall or control cabinet mounting options for flexible installation
Fast response time for accurate and real-time data display
Ideal for industrial process monitoring and automation systems
Product identification
- Brand: PCE INSTRUMENTS
