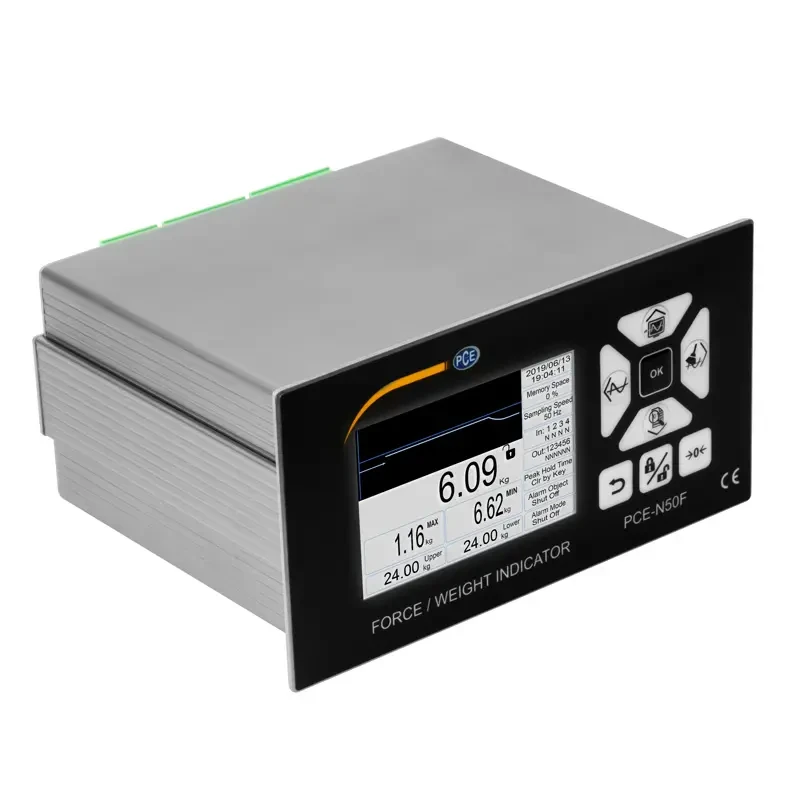

PCE Instruments Panel Meter for Force and Weight Measurement (PCE-N50F)
PCE Instruments Force / Weight Indicator (PCE-N50F) is designed for seamless panel integration, providing accurate measurements of weight, force, or torque. Its compatibility with various sensors, including load cells and force sensors, ensures versatile application across different measurement needs.
Featuring a 3.5" LCD graphic display, the indicator not only presents numerical values but also visualizes the progression of measurements. Functions such as tare and zeroing can be easily accessed via front-panel keys or through rear digital inputs, allowing for external control to reset or tare the device as required.
Specifications and Dimensions
Signal Input Range: 0 … 20 mV
Minimal Sensitivity: 0.1 μV/digit
Supply Voltage for Measuring Cell: 5V / 100 mA
Number of Measuring Cells: 1 … 8x 350 Ohm
Display: 3.5" LCD
Units: g, mN, mlb, Pa, kg, N, lb, kPa, t, kN, klb, MPa
Measuring Rates: 6, 12, 25, 50, 100, 200, 400, 800, 1600 Hz
Electrical Connections: Screw terminals for 1 … 2.5 mm² wires
Power Supply: 220V AC / 50Hz, < 10W
Degree of Protection: Front IP65
Panel Cutout Size: 152 x 76 mm / 6 x 3 in
Dimensions: 166 x 88 x 146 mm / 6.5 x 3.5 x 5.7 in
Weight: Approximately 1150 g / 2.5 lbs
Operating Conditions: -10 … 40°C / 14 … 104°F, max 85% RH
Storage Conditions: -20 … 50°C / -4 … 122°F, max 85% RH
Key Features and Benefits
High sampling rate up to 1600 Hz ensures rapid and accurate data acquisition.
Graphic LCD display provides clear visualization of measurement trends.
Minimum and maximum value tracking for comprehensive data analysis.
Flexible connectivity with digital inputs and outputs for enhanced control.
Robust design with IP65 front protection suitable for demanding environments.
1 x Panel Meter PCE-N50F
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-N50F
