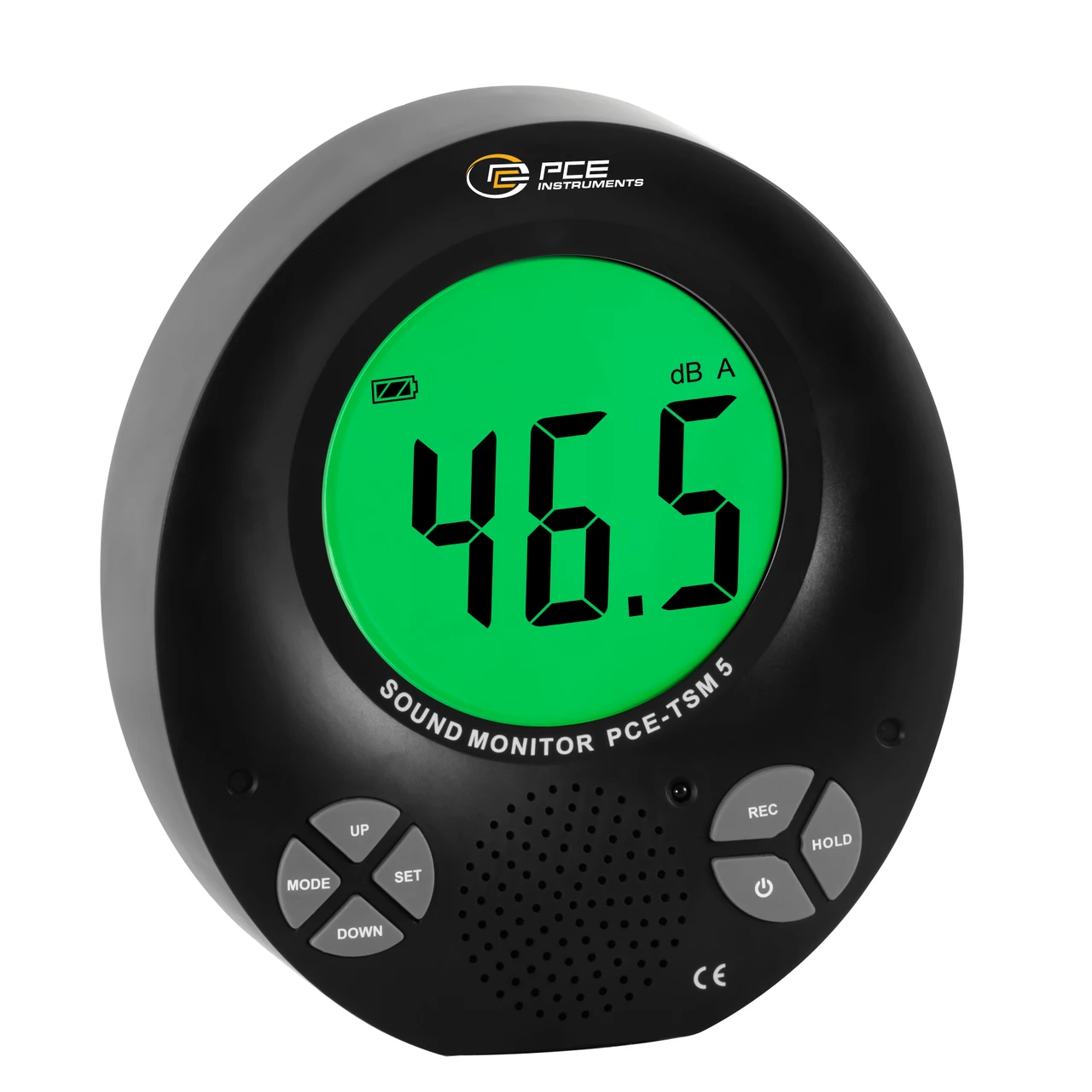

PCE Instruments Noise Meter Sound Meter with LCD Display (PCE-TSM 5)
PCE Instruments Noise Meter Sound Meter (PCE-TSM 5) is a highly functional device designed for monitoring and controlling noise levels in various environments. The large LCD display acts as a noise traffic light, visually indicating sound levels with green, yellow, and red color coding. This makes it ideal for workplaces, schools, and public spaces.
It supports a frequency range from 31.5 Hz to 8000 Hz and features a built-in memory function for audio storage. The meter can operate on battery or main power, making it versatile for both portable and fixed installations.
Specifications and Dimensions
Measurement Range: 35 dB … 135 dB
Resolution: 0.1 dB
Frequency Range: 31.5 Hz … 8000 Hz
Measurement Functions: MIN, MAX, HOLD, ALARM
Frequency Rating: A
Display: LCD with illumination
Display Refresh Rate: 2x per second
Memory Capacity: 15 seconds audio and sound level
Microphone Type: Electret condenser
Interface: 3.5 mm jack
Operating Time: 60 hours
Alarm Modes: Acoustic (voice output in 6 languages), Visual (traffic light display)
Protection Class: IP20
Power Supply: 9V DC, 1000mA
Dimensions: 197 mm (Height) x 49 mm (Depth)
Operating Conditions: -20 … 60 °C, 10 … 90% RH
Storage Conditions: -20 … 60 °C, 10 … 75% RH
Key Features and Benefits
Large LCD display with noise traffic light indicators
Configurable sound level alarms with voice output in 6 languages
Customizable limit values for noise level warnings
Built-in memory for storing 15 seconds of sound data
Supports battery and mains power operation
Includes an IR remote control for easy operation
Ideal for schools, workplaces, and public spaces
1 x PCE-TSM 5 Noise Meter Sound Meter
1 x 9V 1A Plug-in Power Supply
1 x Remote Control
6 x 1.5V AA Batteries
1 x Operating Instructions
1 x Mounting Material
Product identification
- Brand: PCE INSTRUMENTS
- Model / MPN: PCE-TSM 5
